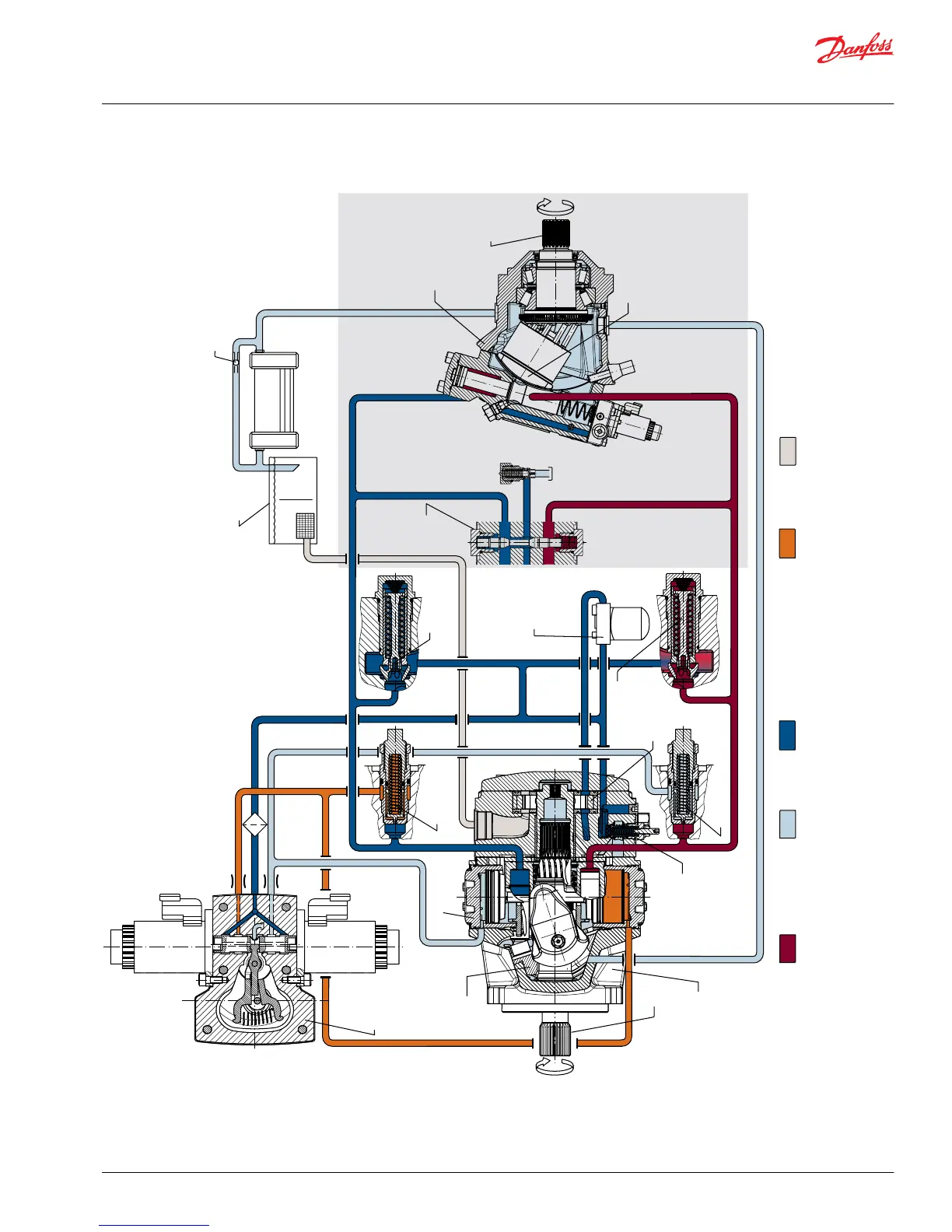

System Circuit Diagram
P003 423E
Reservoir
Heat Exchanger Bypass Valve
Heat Exchanger
Electric Displacement Control
Servo Cylinder
Input Shaft
Pump Swashplate
Pressure Limiter Valve
Pressure Limiter
Valve
Charge Check/ High Pressure Relief Valve
Charge Check/ High Pressure Relief Valve
To Motor Case
Charge Pressure Relief Valve
Loop
Flushing
Valve
Charge Pressure Filter
Charge Pump
Output Shaft
Valve Segment
Bent Axis Variable Displacement Motor
Variable Displacement Pump
Case Drain
Working Loop A (Low Pressure) and Charge Pressure
Servo Pressure
Working Loop B (High Pressure)
Suction
H1 Pump and H1 Motor with Electric proportional control
