MDC Torque
Description Value
Torque required to move handle to maximum displacement 1.4 N•m [12.39 lbf•in ]
Torque required to hold handle at given displacement 0.6 N•m [5.31 lbf•in]
Maximum allowable input torque 20 N•m [177 lbf•in]
C
Caution
Volumetric efficiencies of the system will have impacts on the start and end input commands.
Neutral Start Switch (NSS)
The Neutral Start Switch (NSS) contains an electrical switch that provides a signal of whether the control
is in neutral. The signal in neutral is Normally Closed (NC).

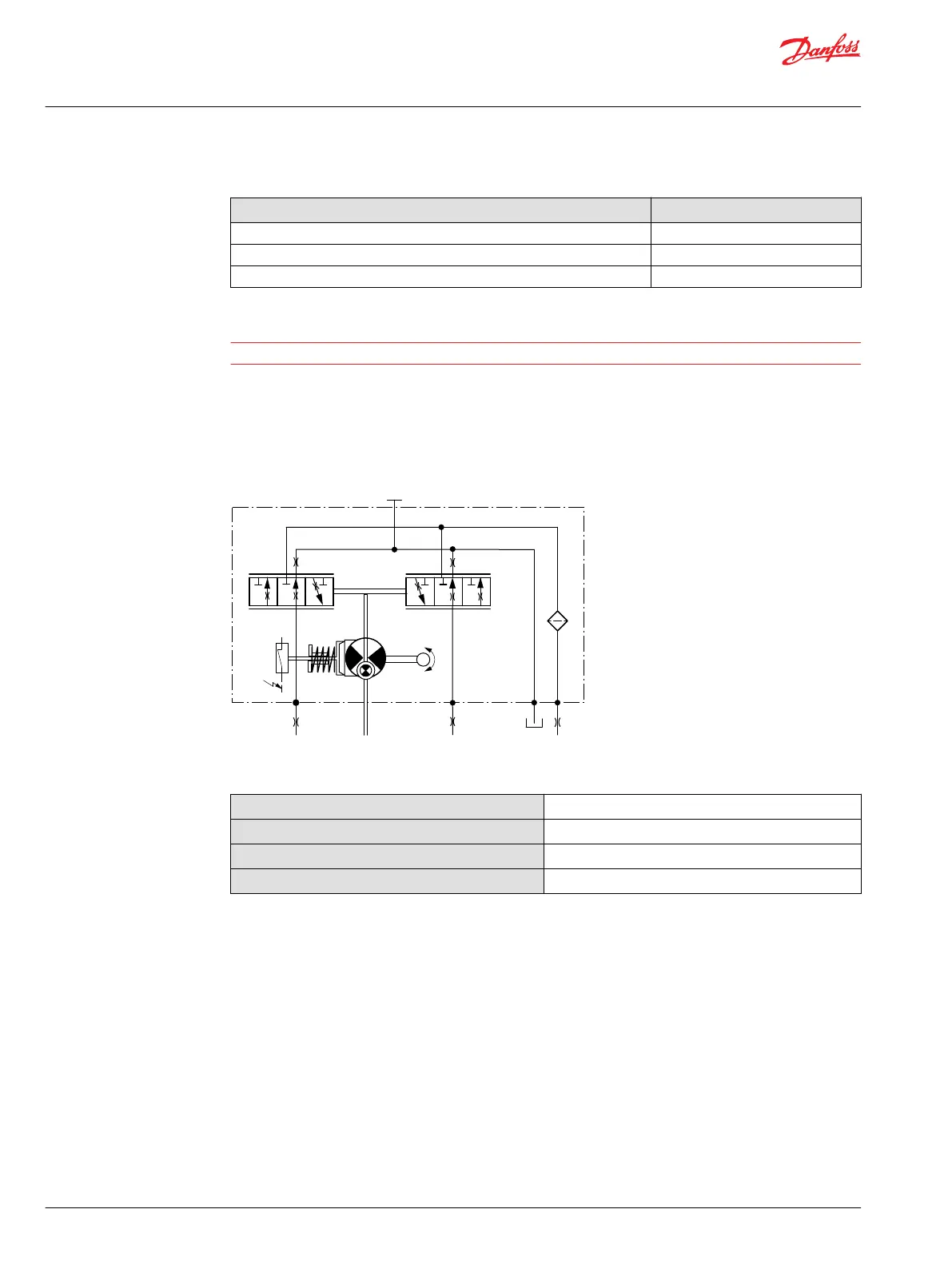

Neutral Start Switch schematic
P005 702
M14
M5
M4
M3
Neutral Start Switch data
Max. continuous current with switching
8.4 A
Max. continuous current without switching
20 A
Max. voltage
36 V
DC
Electrical protection class
IP67 / IP69K with mating connector
Case Gauge Port M14
The drain port should be used when the control is mounted on the unit’s bottom side to flush residual
contamination out of the control.
Service Manual
H1P 069—H1P 280 Axial Piston Single Pumps
Operation
18 |
©
Danfoss | January 2021 AX152886482551en-000601
