11. Remove the protective cover.
Seal Installation Tool
55 mm
[2.17 in]
120 mm
[4.72 in]
078/089/100
78 mm
[3.07 in]
82 mm
[3.23 in]
115/130
147/165
7 mm
[0.28 in]
51 mm
[2. in]
68.5 mm
[2.70 in]
50°
80°
44.7 mm
[1.76 in]
89.4 mm
[3.52 in]
7 mm
[0.276 in]
78 mm
[3.07 in]
75.6 mm
[2.97 in]
210/250/280
4.4 mm
[0.17 in]
80°
57.5 mm
[2.26 in]
89.4 mm
[3.52 in]
12. Install the remaining snap ring (J200).

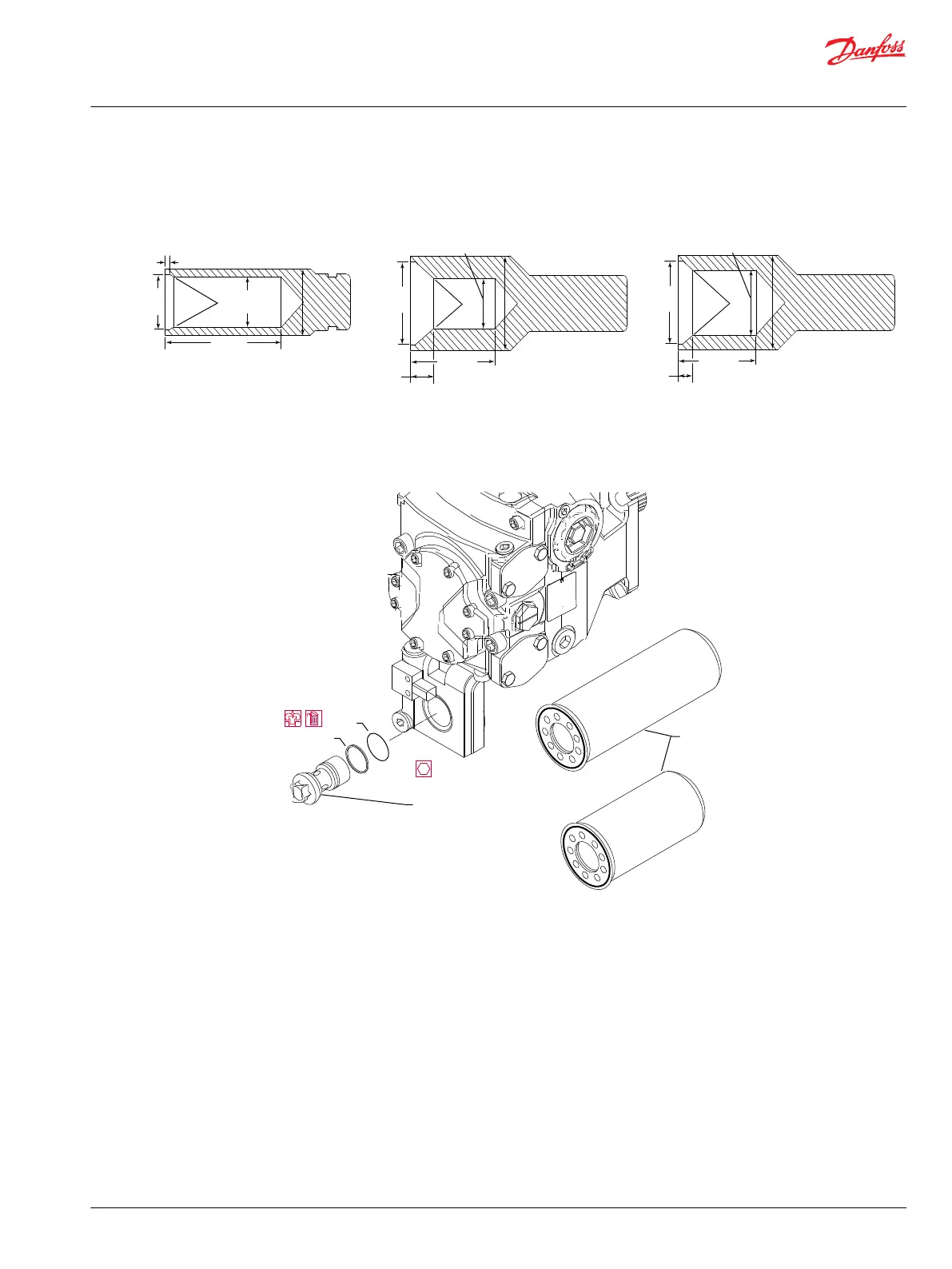

External Filter Repair
T015
24mm
P106 035E
T150
T035
T045
1. With the prime mover off, hold the filter (T150) in place, and remove the plug (T015) using a 24 mm
wrench.
2. Remove the filter.
3. Remove and discard the seal (T045) and O-ring (T035).
4. Inspect the plug and sealing surfaces in the filter bracket.
5. Replace any damaged components.
6. Install new seal (T045) and O-ring (T035) on plug.
7. Apply hydraulic fluid to the O-ring and seal for lubrication.
8. Insert the plug into the bracket.
9. Use a 24 mm wrench to hold the plug in place and install the replacement filter.
Hand tighten filter till it contacts O-ring, then tighten 1/2 turn further.
10. Start the prime mover.
Cycle the pump through normal machine operation and check for leaks.
