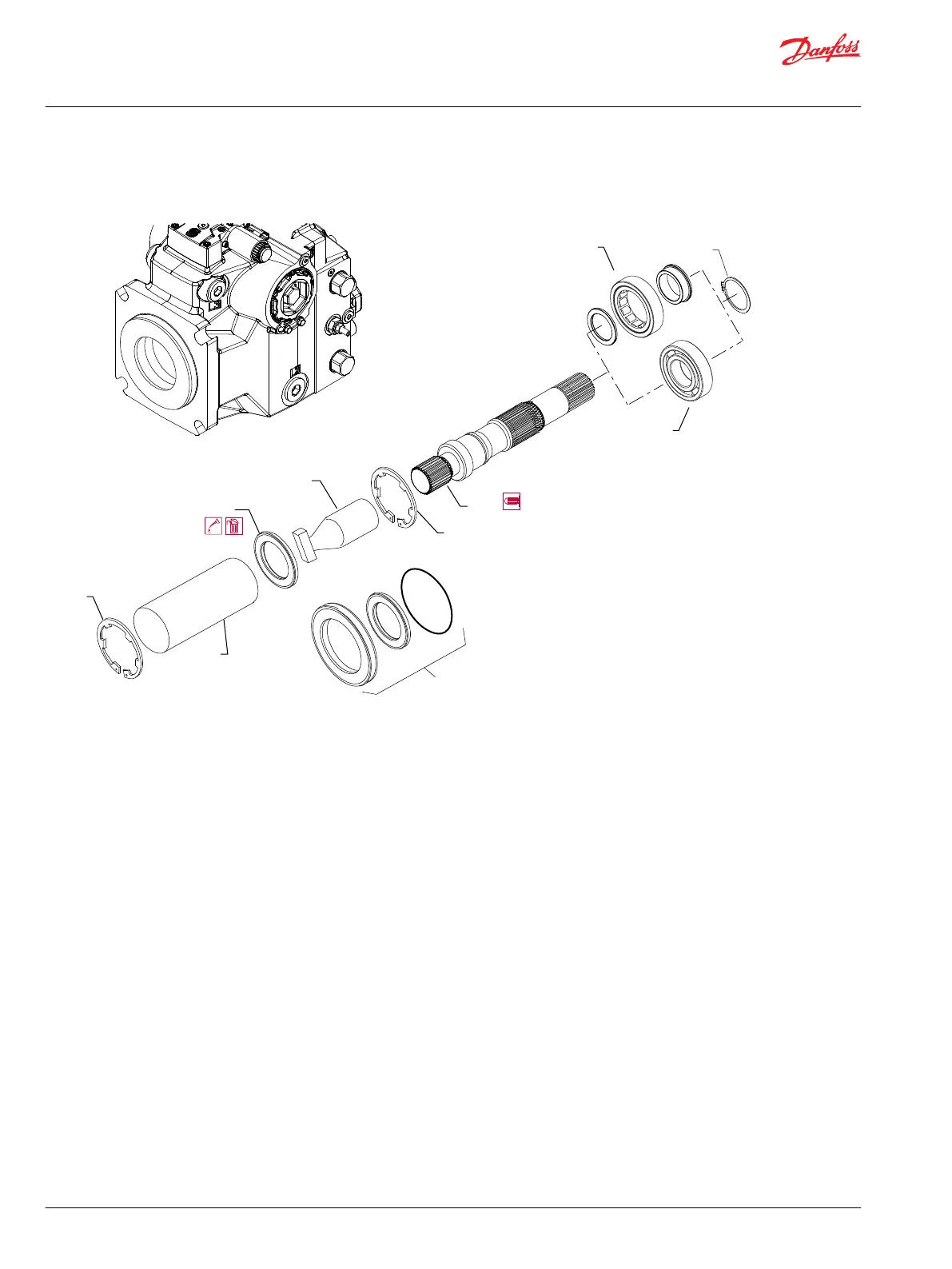

Shaft, Bearing Installation
J100
P106038
J150
J300
J250
J200
J200
Protective
cover
Seal
installation
tool
J150
J220
1. Inspect the shaft journals for wear, scratching, and pits.
2. Check the splines for fretting; replace if damaged.
3. Rotate the bearing; if it does not rotate smoothly, replace it.
4. Press bearing (J150) on shaft. Install snap-ring (J300).
5. Install the shaft/bearing assembly into the pump.
6. Rotate the shaft to align it with the block and charge pump splines.
7. Press down on the shaft and replace the inner snap ring (J200).
8. For 80/100, 210/250/280
a) Using a suitable press and tooling, lubricate and install new seal into the carrier, making note of
proper orientation.
b) Install new O-ring on OD of seal carrier.
9. Cover end of the shaft with an installation sleeve to protect the seal during installation.
10. Lubricate the seal. Tap on the seal replacing tool or an appropriate deep-socket to press in the seal.
Service Manual
H1P 069—H1P 280 Axial Piston Single Pumps
Minor Repair
56 |
©
Danfoss | January 2021 AX152886482551en-000601
