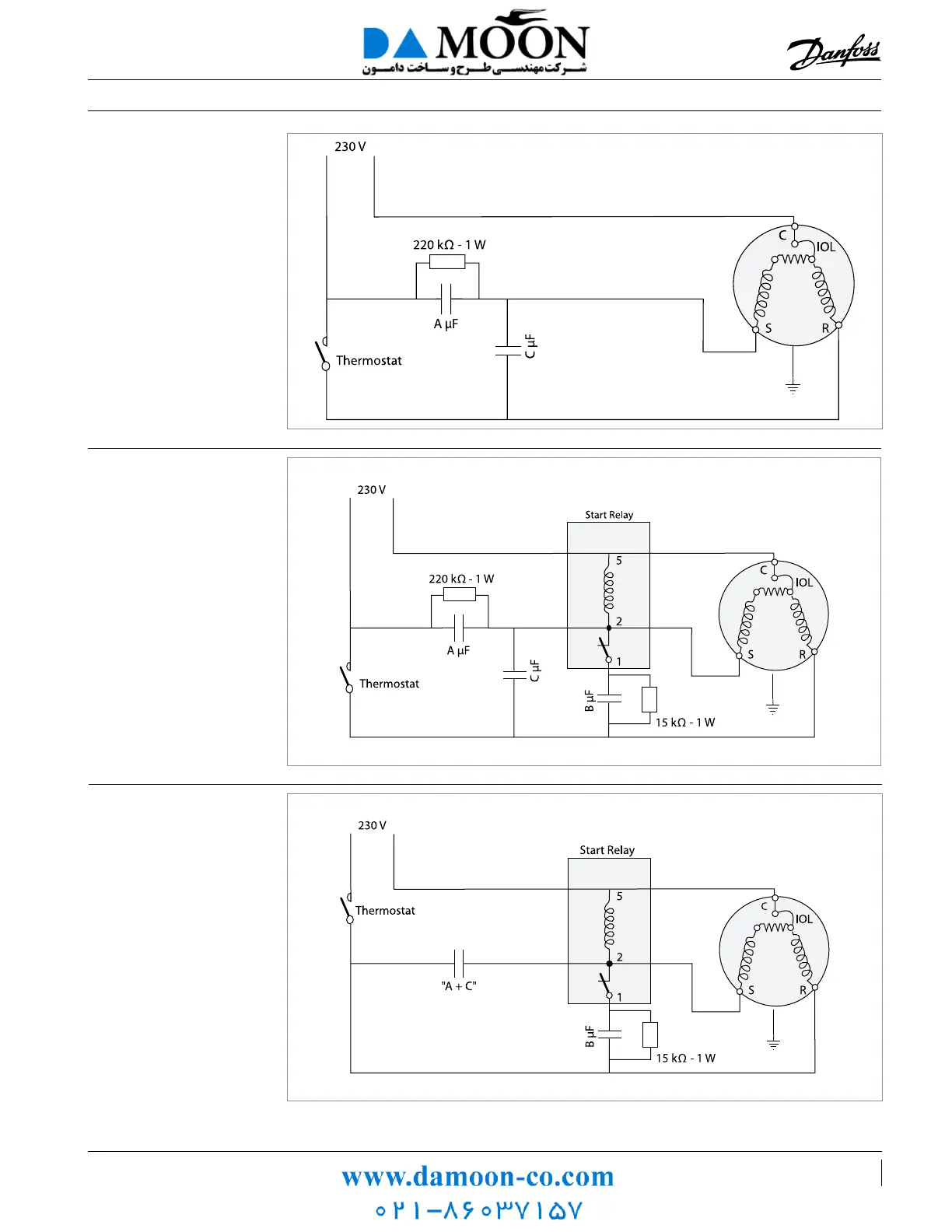

Electrical connections and wiring
Single phase PSC wiring
with trickle circuit
IOL Motor protector
A & C Run capacitors
C Common
S Start winding (auxiliary)
R Run winding (main)
Single phase CSR wiring
with trickle circuit
IOL Motor protector
A & C Run capacitors
B Start capacitor
C Common
S Start winding (auxiliary)
R Run winding (main)
IOL Motor protector
A + C Run capacitors
B Start capacitor
C Common
S Start winding (auxiliary)
R Run winding (main)
Capacitors A and C are replaced by a
single capacitor of size A + C
Single phase CSR wiring
without trickle circuit
