PVG 128/256 service parts
PVG 128/256 pump side module, PVPV

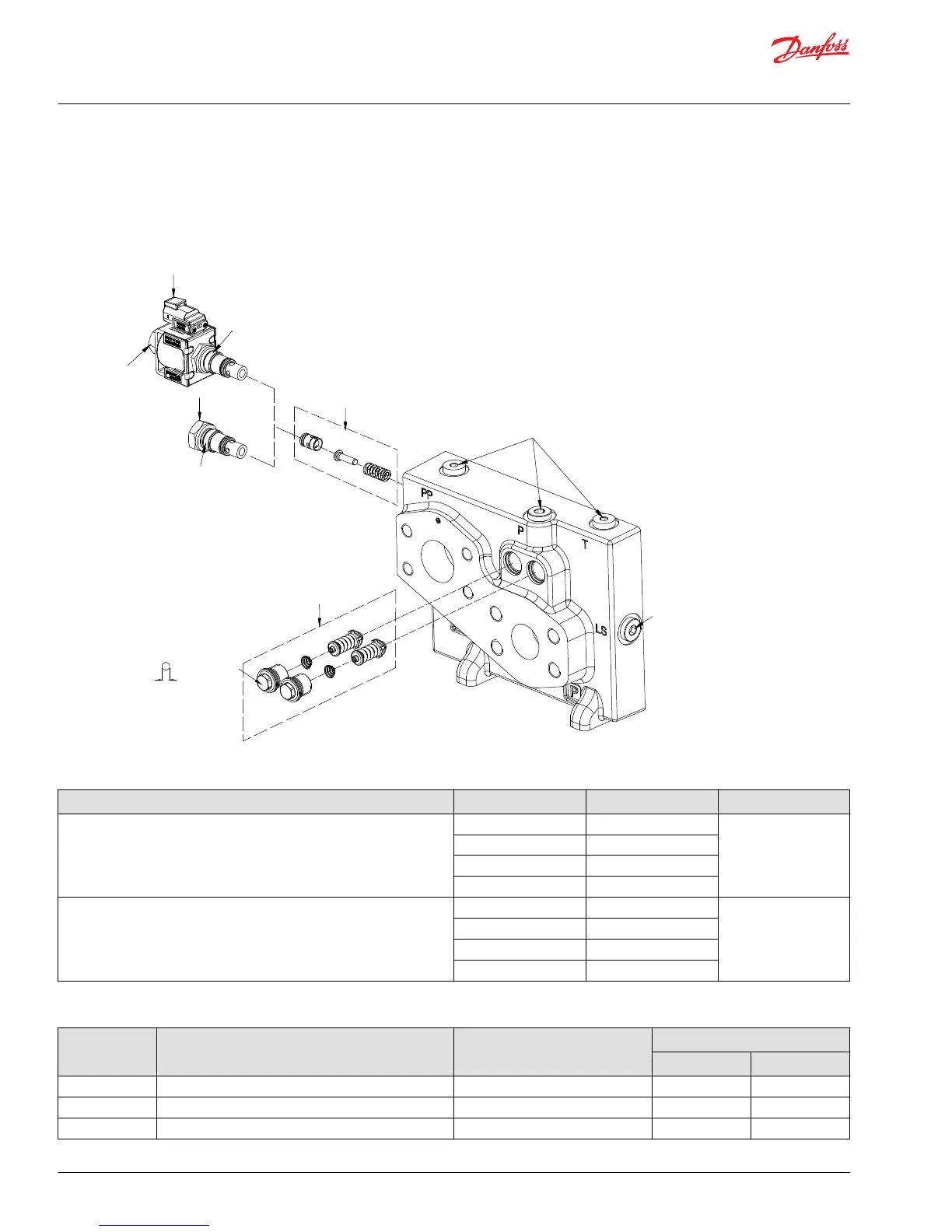

PVPV exploded view
2
3
1
4
30±3Nm
[265±27lbf·in]
35±5Nm
[310±44lbf·in]
35±5Nm
[310±44lbf·in]
35±3Nm
[310±27lbf·in]
13[0.50]
30±3Nm
[265±27lbf·in]
5±1Nm
[44±9lbf·in]
PVPV kits
Description Measure Code number Letter
Closed center with pilot supply for electrical actuation, pilot gage port, and
facility for pilot shut off
Metric flange 11173130 A
G1-1/2" BSP 11176703
SAE flange 11176691
Thread ports 1-7/8 UNF 11176702
Closed center with pilot supply for hydraulic actuation, pilot gage port, and
facility for pilot shut off
Metric flange 11178095 B
G1-1/2" BSP 11178098
SAE flange 11178117
Thread ports 1-7/8 UNF 11178119
Parts list
Item Description Code numbers Letter
A B
1 Pilot pressure reducing valve -
2 PVPP 12V 11160318
2 PVPP 24V 11160319
Service and Parts Manual
PVG 16/32/128/256
Service Parts
120 |
©
Danfoss | October 2018 AX284661889190en-000101
