PVG 32 external pilot pressure adapter, PVPC

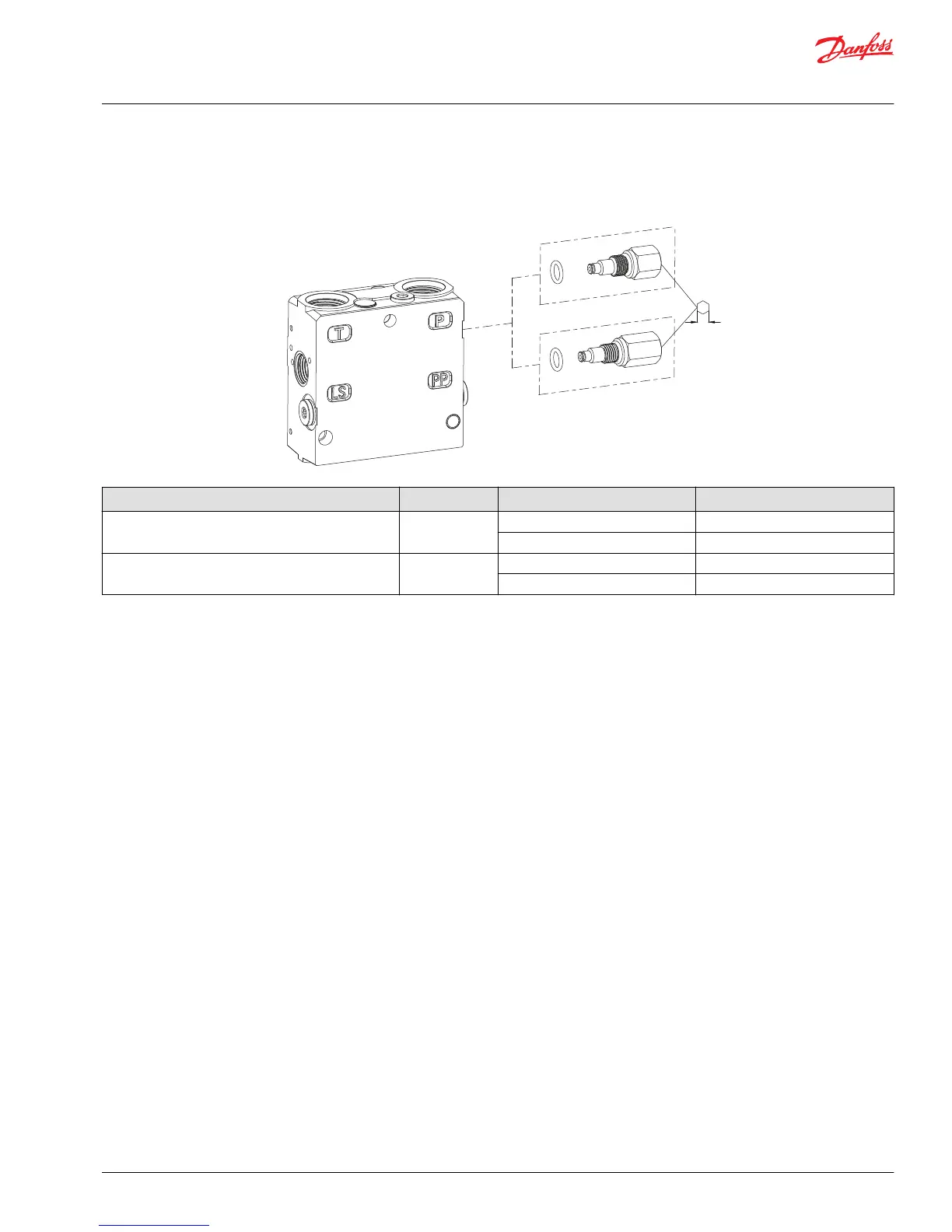

PVPC exploded view
1
2
198[0.75]
40±3Nm
[355±25lbf-in]
Type
Item
Thread
Code number
PVPC without check valve
1
G1/2”
157B5400
1/2-20 UNF
158X1000
PVPC with check valve
2
G1/2”
157B5600
1/2-20 UNF
157B5700
S
