PVG 16 service parts
PVG 16 pump side module PVP

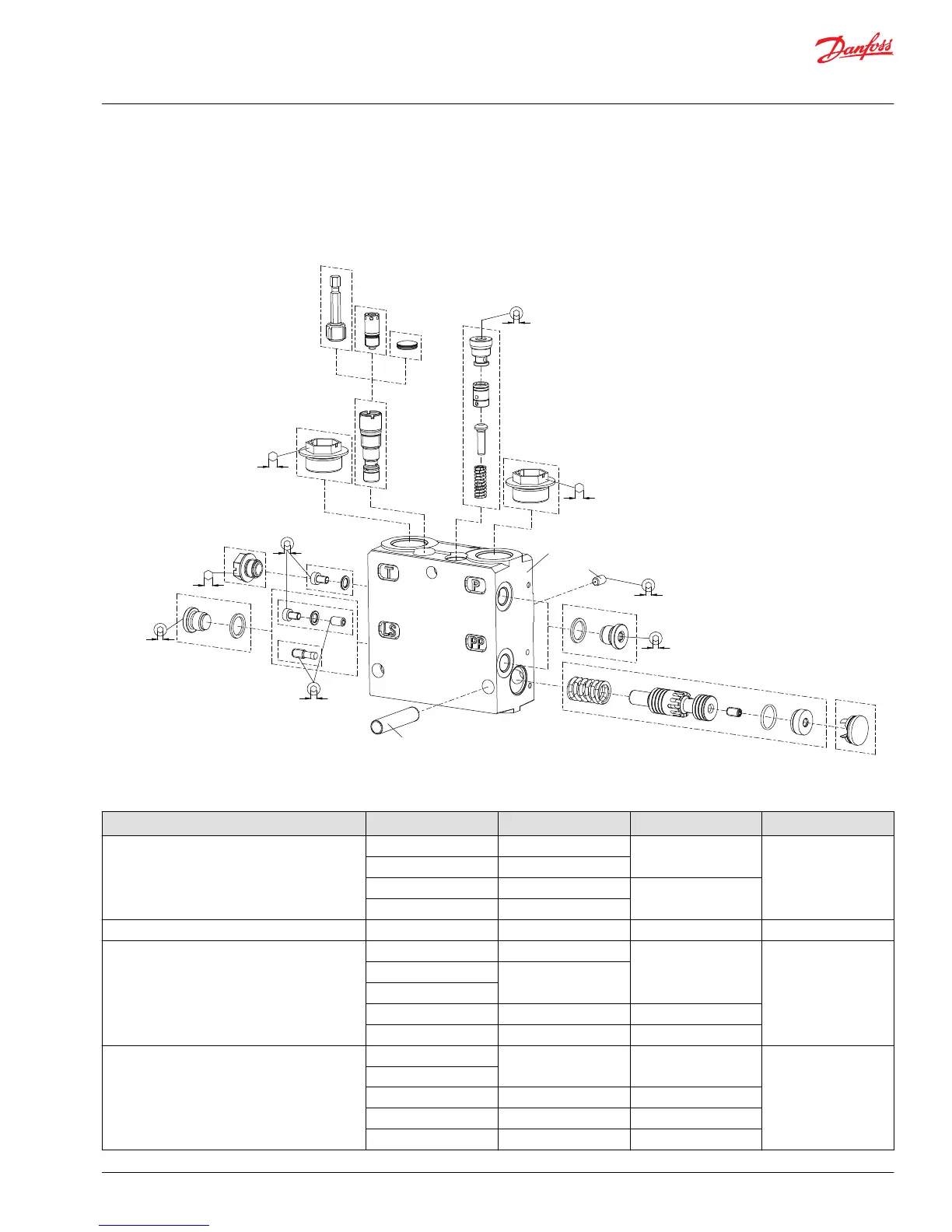

PVP exploded view
3[0.12]
4±1Nm
[35±9lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
4[0.16]
8±1Nm
[71±9lbf-in]
Open center
Closed Center
6[0.24]
30±3Nm
[266±27lbf-in]
2.5[1.0]
4±1Nm
[35±9lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
1
3
4
5
2
6
6
11
13
8
7
12
11
14
15
16
17
5±0.5Nm
[44±4.4lbf-in]
5±0.5Nm
[44±4.4lbf-in]
5±0.5Nm
[44±4.4lbf-in]
9
10
PVP kits
Description Code number P-port T-port/HPCO-port Letter
Open center 157B5000 G1/2” G3/4” A
157B5100 G3/4”
157B5200 7/8-14 UNF 1-1/16 UN
157B5300 1-1/16 UN
Open center with PVPX facility 157B5102 G3/4” G3/4” B
Open center with PPRV for PVE 157B5010 G1/2” G3/4” C
157B5110 G3/4”
11008849
157B5210 7/8-14 UNF 1-1/16 UN
157B5310 1-1/16-12 UNF 1-1/16-12 UNF
Open center with PPRV for PVE and PVPX facility 157B5012 G1/2” G3/4” D
11187356
157B5112 G3/4” G3/4”
157B5212 7/8-14 UNF 1-1/16 UN
157B5312 1-1/16-12 UNF 1-1/16-12 UNF
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 53

Danfoss PVG 32 Specifications

General

Category	Control Unit
Maximum working pressure	350 bar
Size	32
Type	Proportional Valve
Maximum operating pressure	420 bar
Porting pattern	ISO 4401
Electrical connection	AMP
