PVG 16/32 electrical LS pressure unloading valve, PVPX

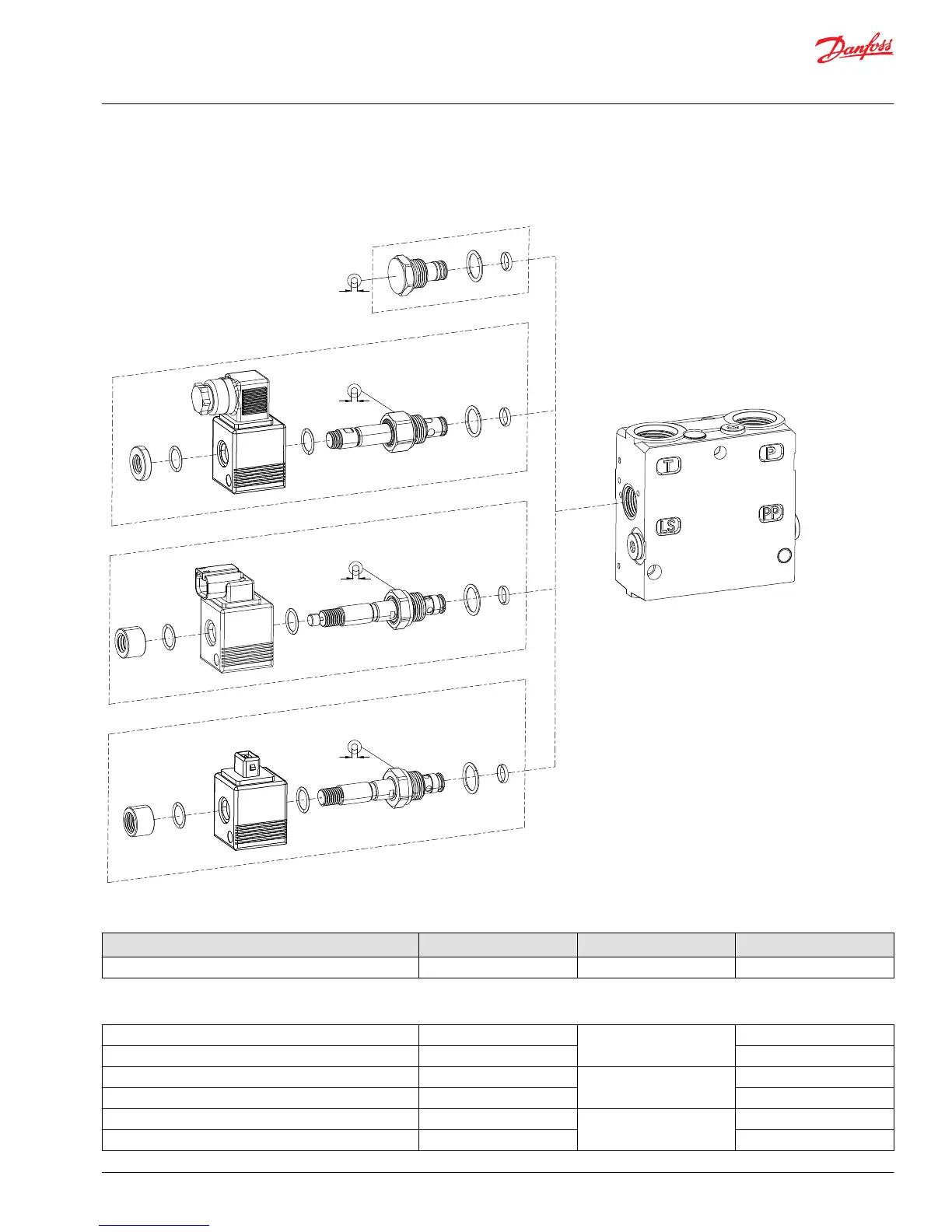

PVPX exploded view
24[0.94]
45+5Nm
[398+44lbf-in]
1
2
3
4
24[0.94]
45+5Nm
[398+44lbf-in]
24[0.94]
45+5Nm
[398+44lbf-in]
24[0.94]
45+5Nm
[398+44lbf-in]
PVPX plug
Description Manual Override Item Code number
Plug for PVPX port - 1 157B5601
PVPX, NO configuration
1x2 DIN (12 Vdc) - 2 157B4236
1x2 DIN (24 Vdc) - 157B4238
1x2 AMP (12 Vdc) - 4 157B4981
1x2 AMP (24 Vdc) - 157B4982
1x2 DEUTSCH (12 Vdc) - 3 11180766
1x2 DEUTSCH (24 Vdc) - 11180767
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 81
