PVG 32 pump side module PVPM/PVPVM

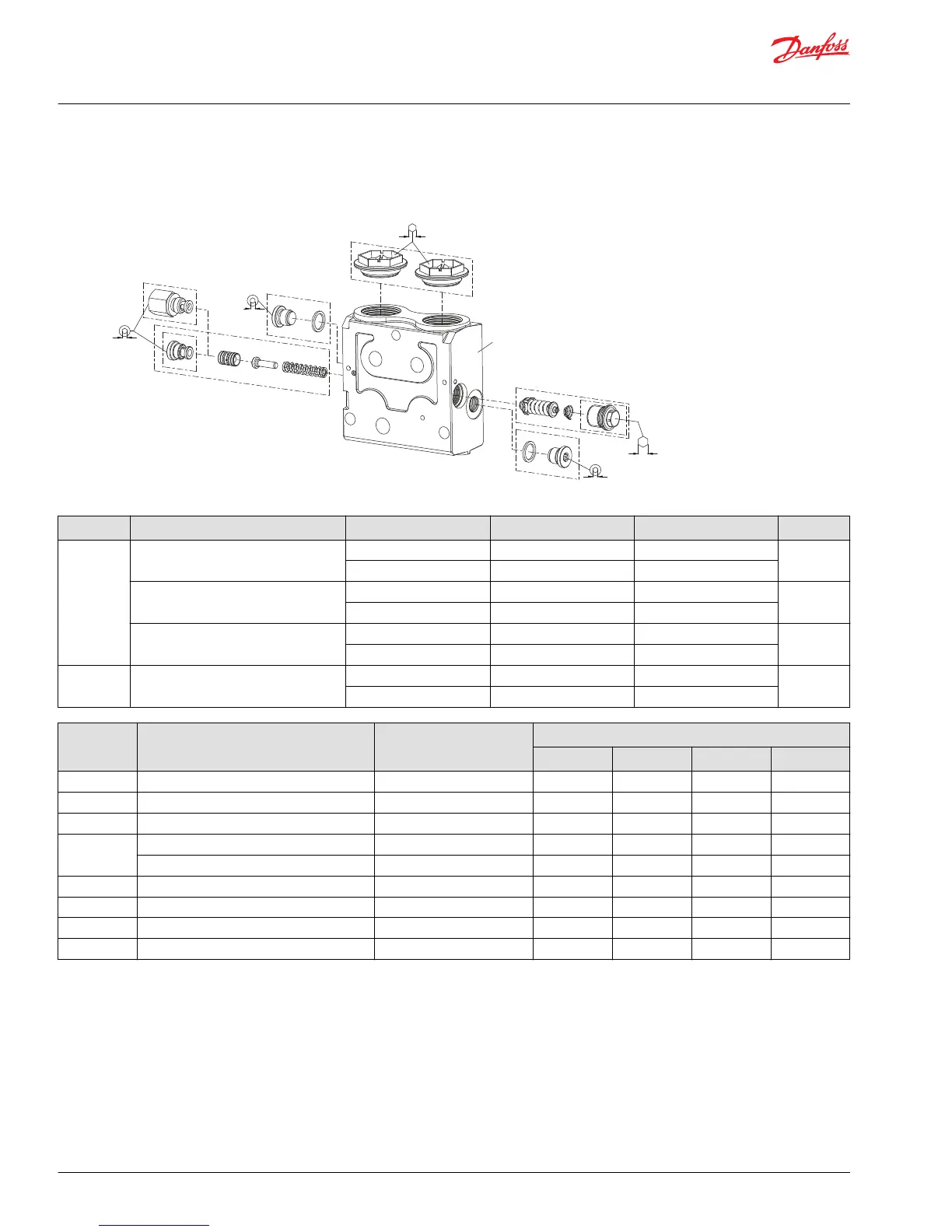

PVPM/PVPVM exploded view
13[0.51]
35±3Nm
[310±27lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
2
1
5
4
3
7
6
7
8
5±0.5Nm
[44±4.4lbf-in]
Type Description Code number P-port T-port Letter
PVPVM Closed center with PPRV for PVE 157B5912 1 5/16-12 UN 1 5/16-12 UN A
157B5937 G1” G1”
Closed center with PPRV for PVH/PVHC
and PVLP
11083156 1 5/16-12 UN 1 5/16-12 UN B
157B5986* G1” G1”
Closed center with PPRV for PVE and
PVLP
157B5914 1 5/16-12 UN 1 5/16-12 UN C
157B5940 G1” G1”
PVPM Open Center/Closed Center with PVLP
and T0 facility
11093682 1 5/16-12 UN 1 5/16-12 UN D
11093684 G1” G1”
Item Description Code number Letter
A B C D
1 PVLP assembly See PVLP section - 1 1 1
2 Plug for PVLP 157B2002 - 1 1 1
3 Plug - 1 1 1 -
4 Pilot supply for PVE 13.5 bar 155L5157 1 - 1 -
Pilot supply for PVH/PVHC 25 bar 11077272 - 1 - -
5 Plug for external Pp - - - - -
6 Plastic plug - 2 2 2 2
7 Plug - 2 2 2 -
8 PVPV inlet module - 1 1 1 -
Service and Parts Manual
PVG 16/32/128/256
Service Parts
80 |
©
Danfoss | October 2018 AX284661889190en-000101
