Application guidelines
SH180-240-295

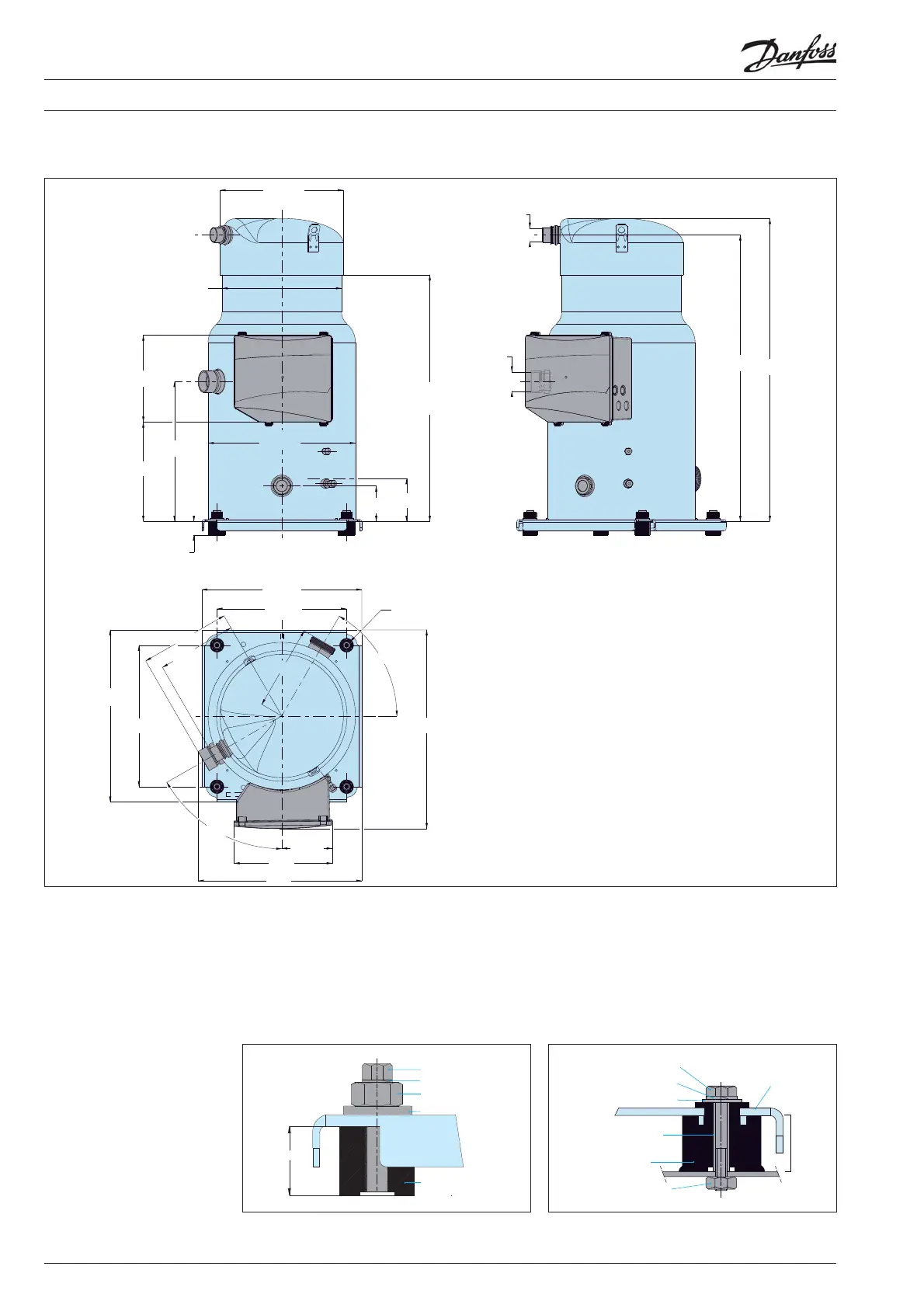

Dimensions
Flexible grommetRigid spacer
HM 8 bolt
Lock washer
Flat washer
Steel mounting sleeve
Rubber grommet
Nut
28 mm
Compressor
base plate
Ø265.9
Discharge
1"1/8
Suction
1"5/8
Ø257.4
Ø317.5
653
618
187
301.5
214
345.4
195
170
304.8
370.8
353
212
109
183
60°
60°
428
279.4
76.6
4x rigid
spacer 29.5
4x holes Ø19
All dimensions in mm
92.5
531.5
±1.2
HM 8 bolt
Lock washer
Flat washer
Rigid spacer
Nut
29.5 mm
