Sample Refrigeration Circuits

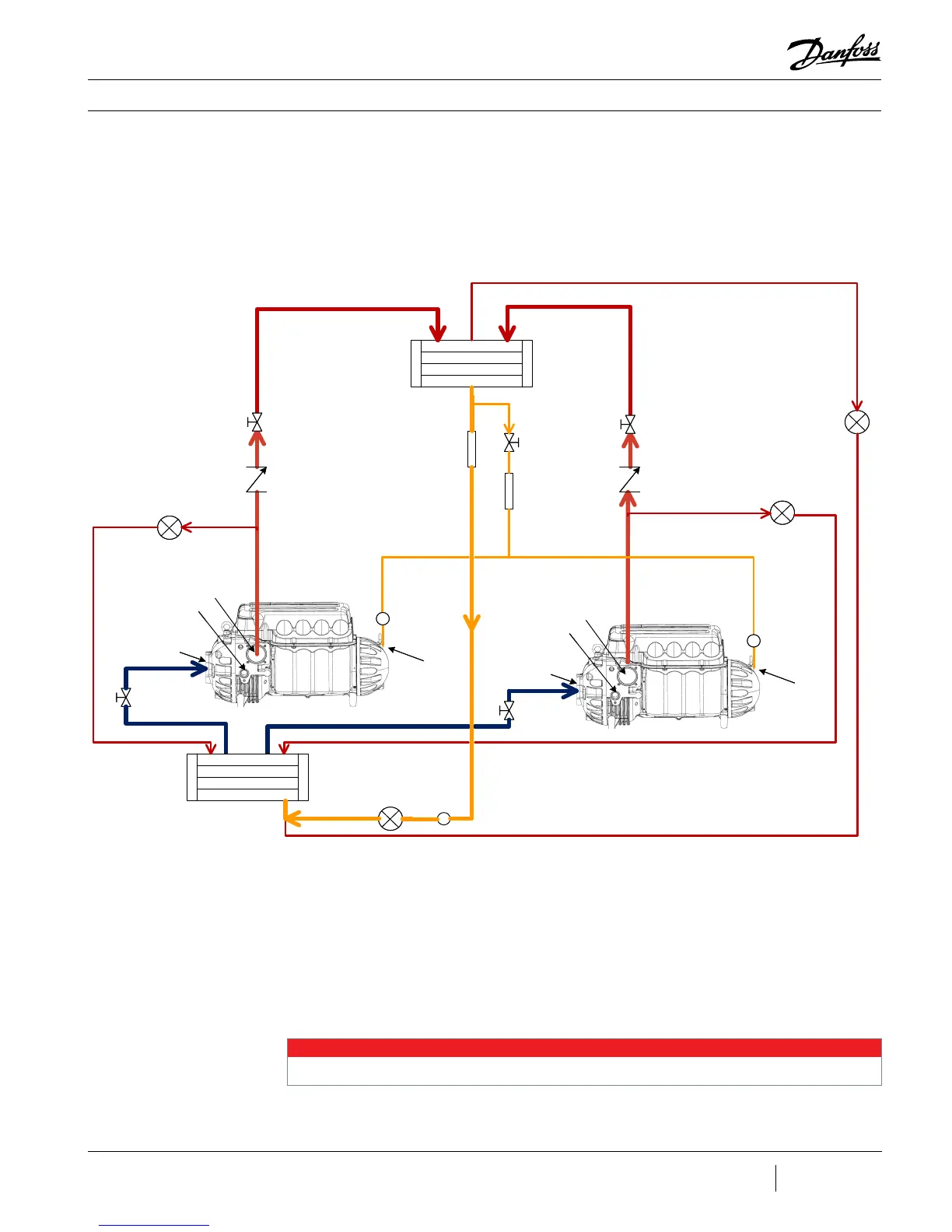

Figure 14-7 - Typical

Refrigeration Piping

Schematic Using Multiple

Compressors on a Common

Circuit With a Flooded

Evaporator

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

(with integral

strainer)

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

(with integral

strainer)

Suction

Port

Economizer

Port

Discharge Port

Sight

Glas s

Sight

Glas s

Filter/

Dr ier

Filter/

Dr ier

EXV

Sig ht

Glass

Staging

Valve

Staging

Valve

Staging

Valve

Staging

Valve

Sight

Glass

Sight

Glass

Check

Valv e

Check

Valve

Load

Balance

Valve

Condenser with Subcooler

Evaporator

Filter/

Dr ier

Filter/

Dr ier

(optional)

NOTE

Contact DTC for compressor selection and further technical advice.
