M-AP-001-EN Rev. N

Physical Data

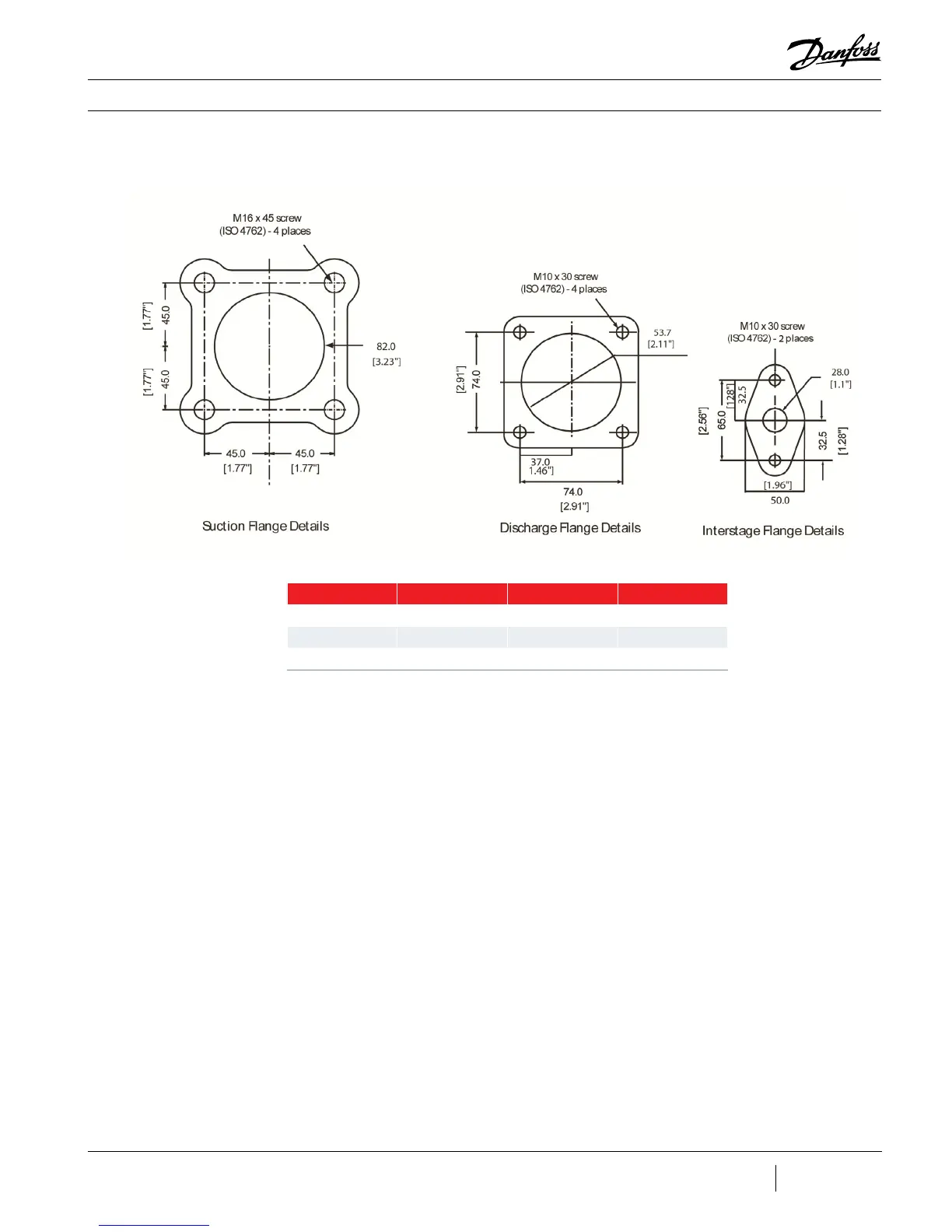

Figure 16-14 - TT700 and

TG520 Flange Footprint

Details

Port Thread Size Hole Depth (mm) Torque (Nm)

Suction M16 X 2 34.5 75

Discharge M10 X 1.5 20 22

Economizer M10 X 1.5 20 22

Table 16-3 - Screw Hole

Specications
