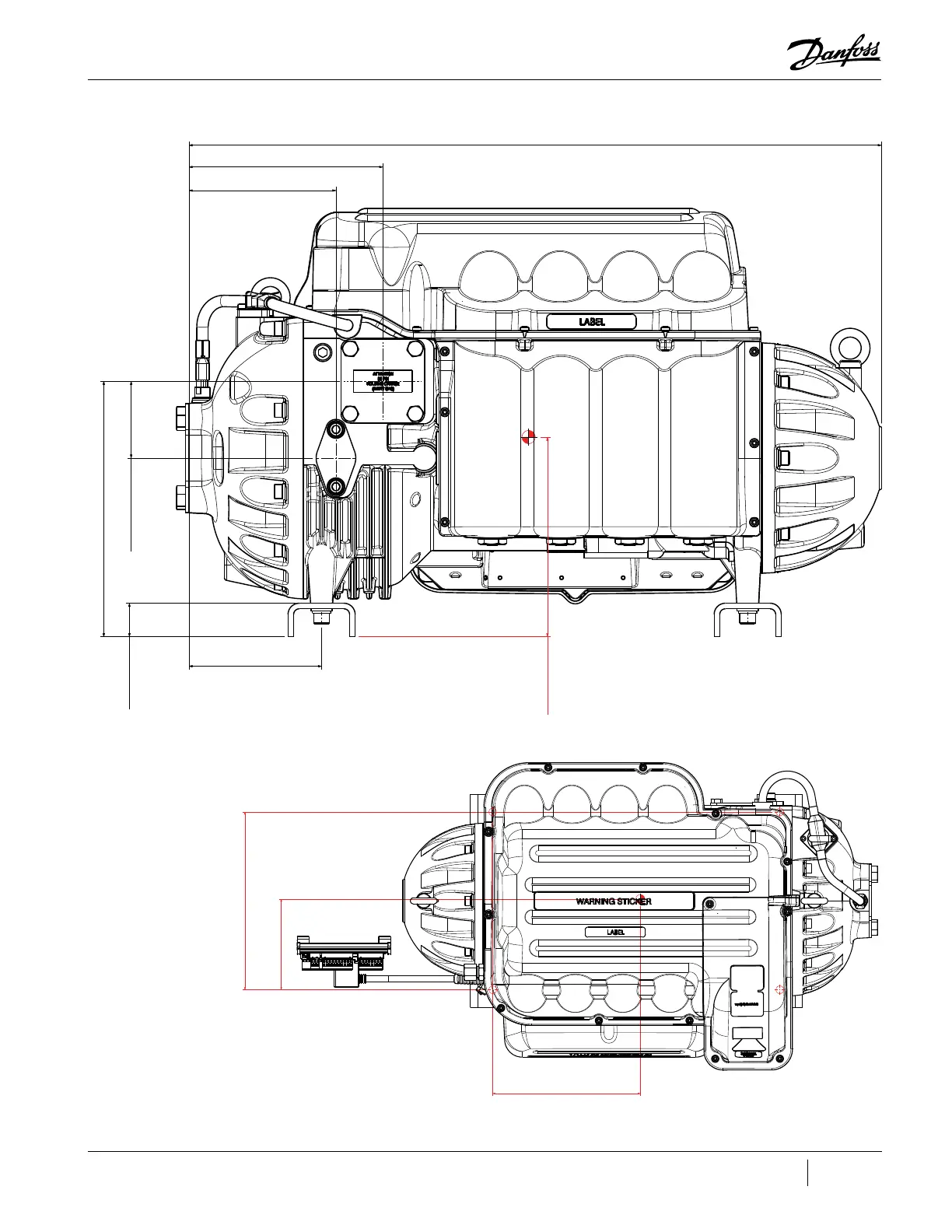

Figure 16-8 Center of Gravity Capacitor Side View (Excluding TTH/TGH Compressors)
Figure 16-9 Center of Gravity Top View (Excluding TTH/TGH Compressors)
150.66 (5.93”)
87.34 (3.44”)
290.44 (11.43”)
220.2 (8.67”)
38.1
(1.5”)
(ZL)
227.1 (8.94”)
167 (6.57”)
787 (30.98”)
Rear view
Scale: 1:2
249 (9.80”)
(XL)
300 (11.81”)
153.1 (6.03”)
(YL)
Center of Gravity view
Scale: 1:2
