91 of 114M-AP-001-EN Rev. Q

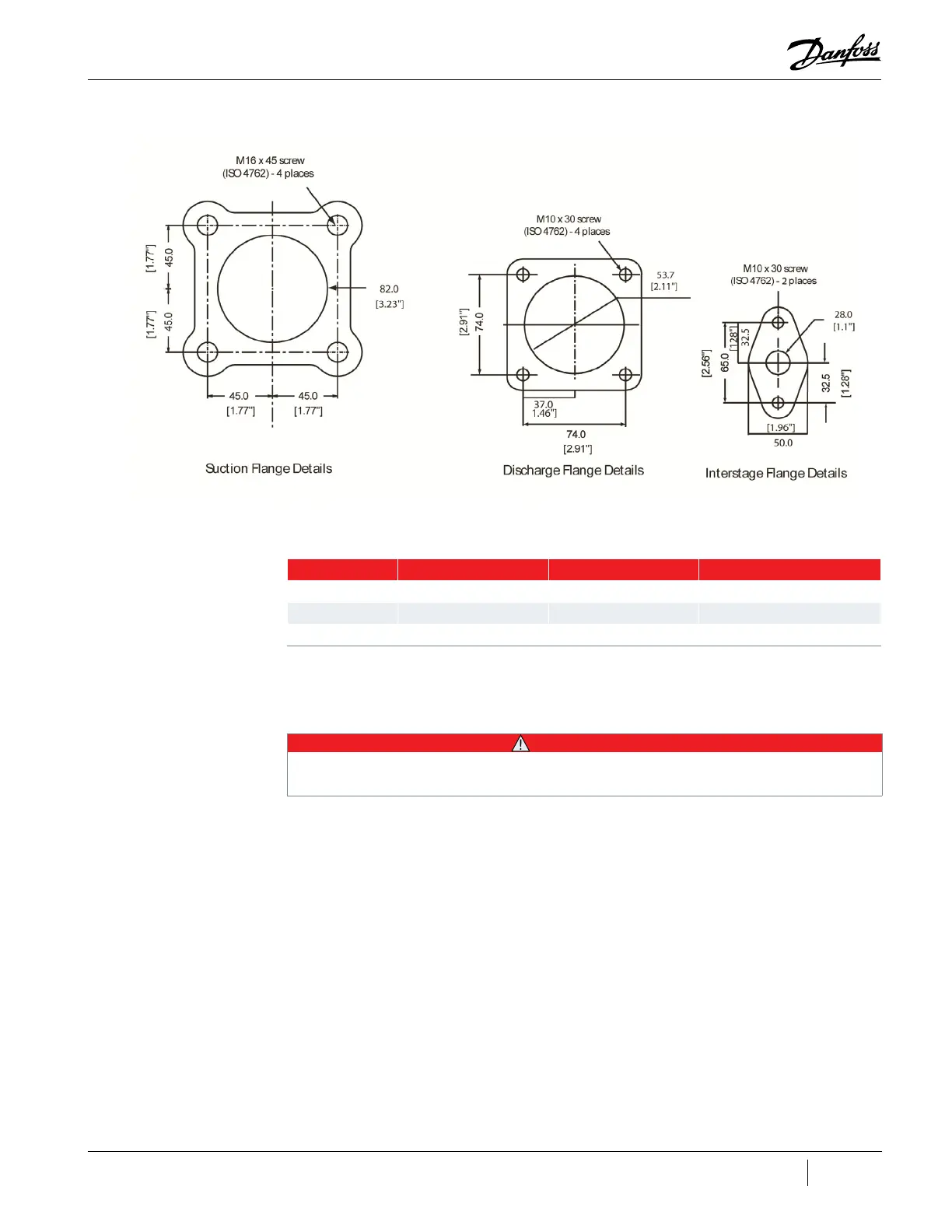

Figure 16-22 TTS700, TGS490, and TGS520 Flange Footprint Details
Table 16-3 Screw Hole Specifications
Port Fastner Thread Spec Thread Depth (mm) Recommended Torque (Nm)
Suction M16 34.5 75
Discharge M10 20 32
Economizer M10 20 32
• • • WARNING • • •
Refer to the manufacturer fastener specifications and torque as required, but do not exceed the torque values listed in
"Table 16-3 Screw Hole Specifications". If this value is exceeded, damage to compressor housing threads may occur.
