Danfoss Turbocor TT350 User Manual

31 of 132
M-SV-001-EN Rev.E
Compressor Components

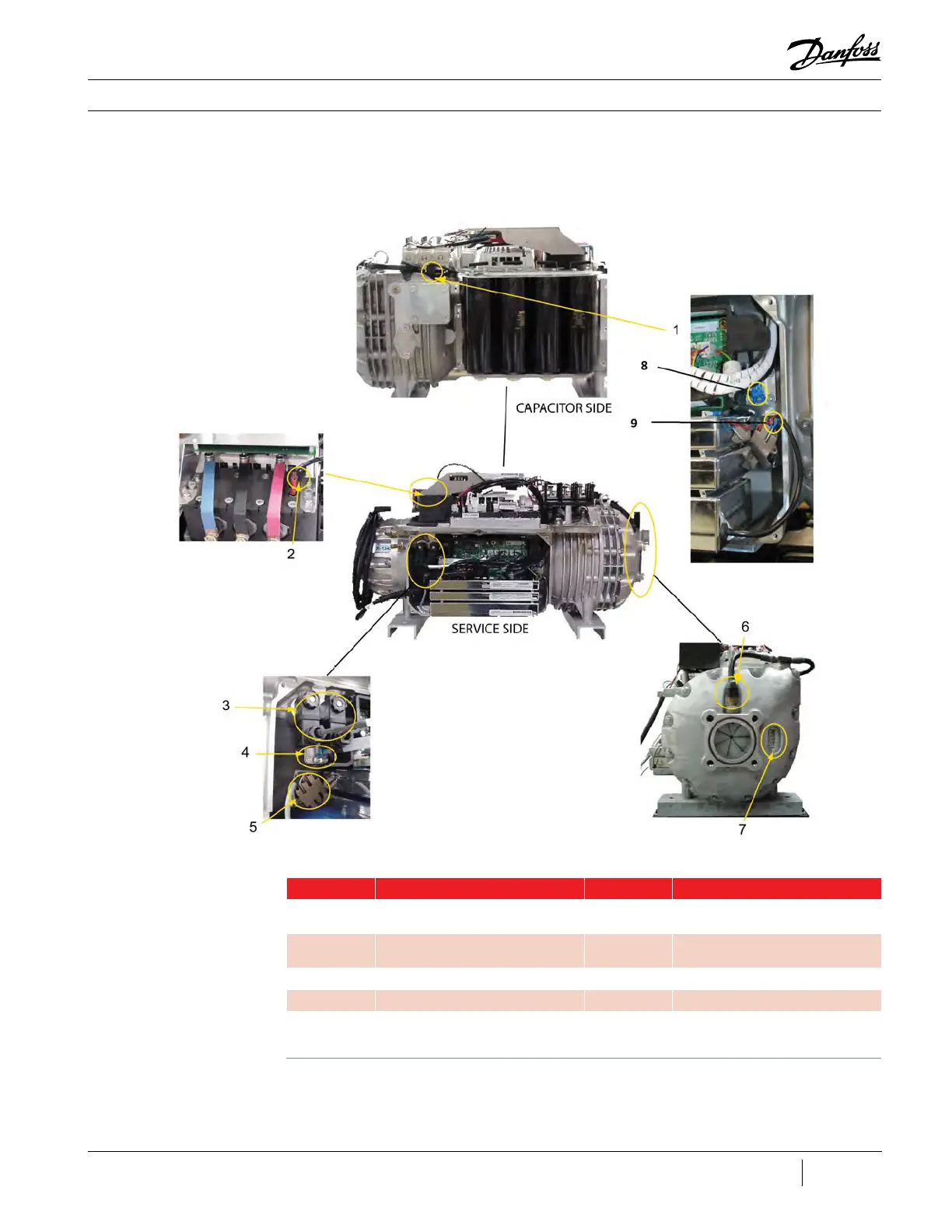

Figure 21 - Compressor Sensors,
Cables and Indicators (TT300/
TG230)
Table 6 - Compressor
Sensors, Cables, and
Indicators (TT300/TG230)
No. Component No. Component
1
Discharge Temperature / Pressure
Sensor
6 Suction Temperature/Pressure Sensor
2 Motor-Winding Sensors 7
Inlet Guide Vanes (IGV) Position
Indicator
3 Motor-Cooling Solenoids 8 Bearing Sensor Ring Cable (Front)
4 Bearing Sensor Ring Cable (Rear) 9 PWM Current Output (Front Bearing)
5
Bearing Pulse Width Modulation
(PWM)
Current Output (Rear Bearing)
