The LCP 2 Control unit, option
The frequency converter can be combined with an
LCP control unit (Local Control Panel - LCP 2) which
makes up a complete interface for operation and pro-
gramming of the frequency converter. The LCP 2 con-
trol unit can be attached up to three metres from the
frequency converter, e.g. on a front panel, using an
accessory kit.

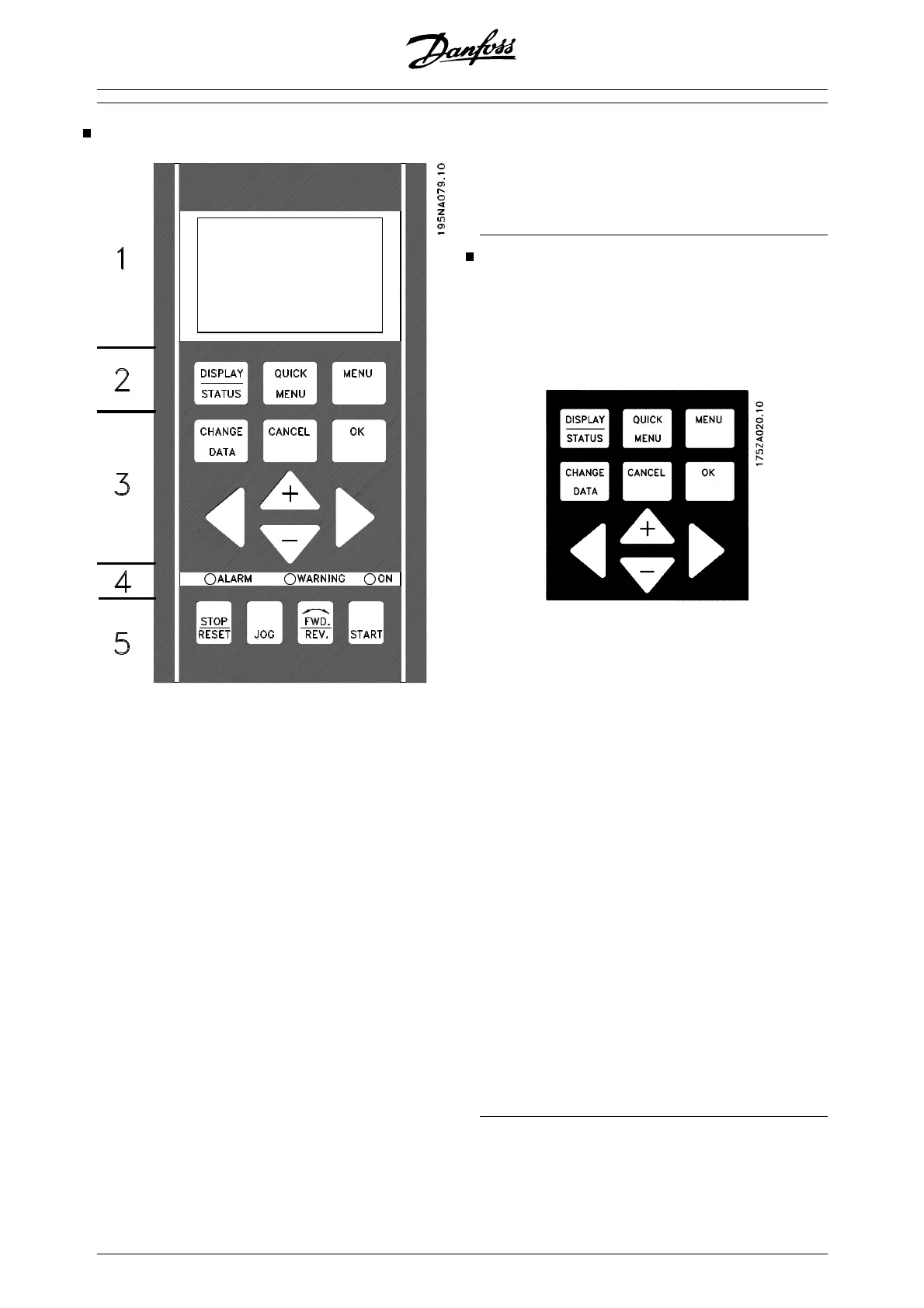

The control panel is divided into five functional groups:
1. Display.
2. Keys used to change the display function.
3. Keys used to change the programme param-
eters.
4. Indicator lamps.
5. Local control keys.
All data is displayed via a 4-line alphanumeric display,
which during normal operation will be able to continu-
ously display 4 items of operating data and 3 operating
modes. During programming all information needed
for quick, effective parameter setup of the frequency
converter will be displayed. As a supplement to the
display, there are three indicator lamps for voltage
(ON), warning (WARNING) and alarm (ALARM). All
frequency converter parameter Setups can be
changed immediately from the control panel, unless
this function has been programmed as Locked [1] via
parameter 018 Lock for data changes.
Control keys for parameter Setup
The control keys are divided into functions, in such a
way that the keys between the display and the indica-
tor lamps are used for parameter Setup, including
selection of the display's view mode during normal op-
eration.
[DISPLAY/STATUS] is used to select the display's
view mode or to change back to Display mode from
either Quick Menu or Menu mode.
[QUICK MENU] provides access to the parameters
used in the Quick Menu. It is possible to switch be-
tween Quick Menu and Menu mode.
[MENU] gives access to all parameters. It is possible
to switch between Menu mode and Quick Menu.
[CHANGE DATA] is used to change a parameter that
has been selected either in Menu mode or Quick
Menu.
[CANCEL] is used if a change to the selected param-
eter is not to be implemented.
[OK] is used to confirm a change to a selected pa-
rameter.
[+ / -] are used for selecting parameters and for chang-
ing parameter values.
These keys are also used in Display mode to switch
between the readouts of operating variables.
[< >] are used for selecting parameter group and to
move the cursor when changing a numerical value.
32 MG.27.E2.02 - VLT is a registered Danfoss trademark
