Danfoss VLT 5000 User Manual

Synchronizing controller
MG.10.N4.02 - VLT is a registered Danfoss trademark 49
Position synchronization (angle synchronization)
The position controller adjusts the slave drive position or angle to the master.

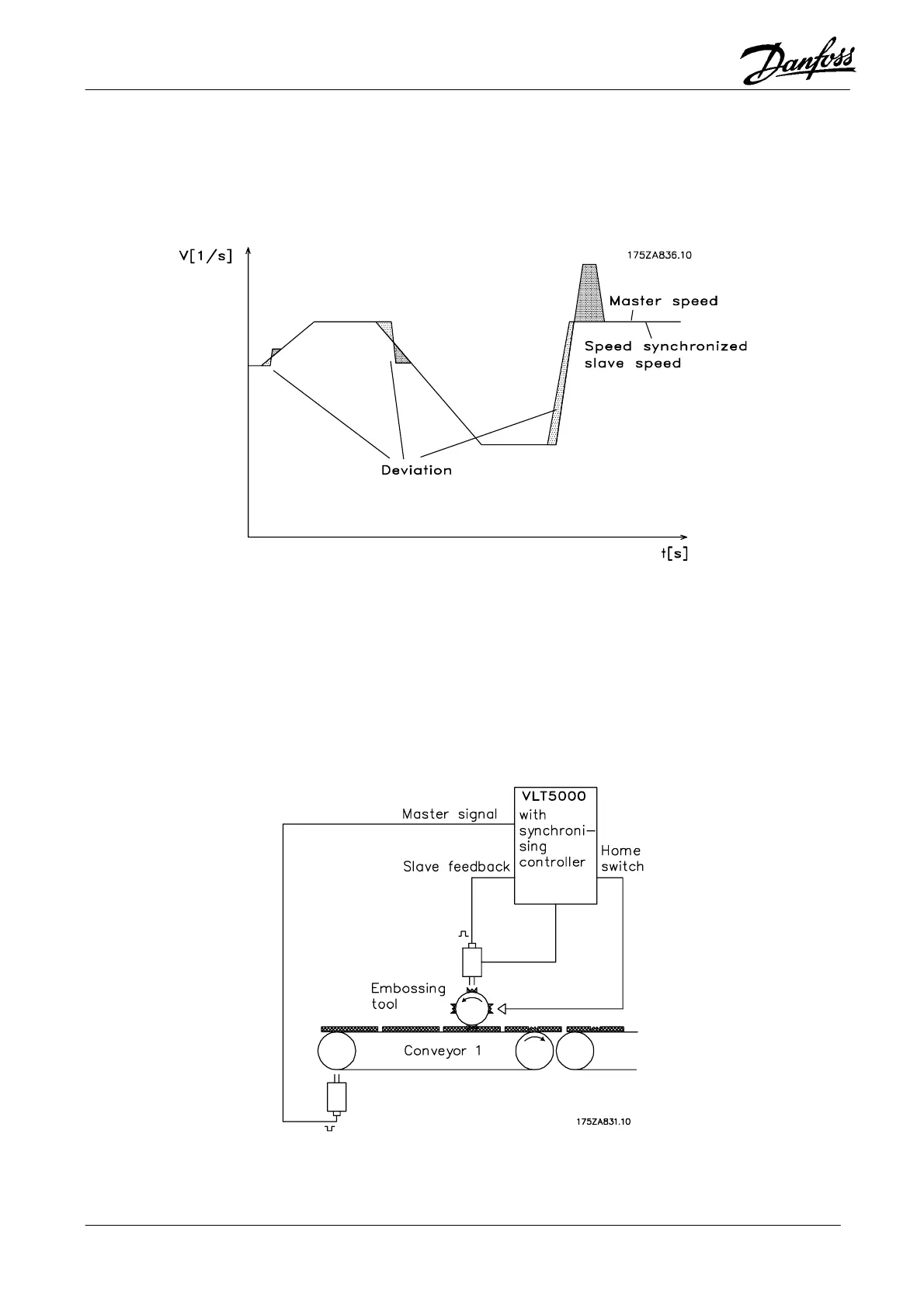

Figure 15: Control behaviour with position synchronization
It appears from the diagram that the control accuracy depends on the master acceleration and
on the speed deviation between slave and master. A typical application for this type of
synchronizing could be the replacement of a mechanical shaft. Or mixing controls where a
mixing rate is required.
The following example shows how embossing patterns on moulds is controlled. This application
requires accurate position control.
Figure 16: Embossing with position synchronization

Danfoss VLT 5000 Specifications

General

Frequency	50/60 Hz
Output Voltage Range	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overtemperature, Short circuit
Communication Interfaces	RS-485
Ambient Temperature Range	-10°C to +40°C
Enclosure Rating	IP20, IP21, IP55
Input Voltage	200-240V AC, 380-480V AC, 525-600V AC
