Danfoss VLT 6000 Installation Guide

2.1.4. Lifting
Always lift the frequency converter in the dedicated lifting eyes. Use a bar to avoid bending the
lifting holes of the frequency converter.

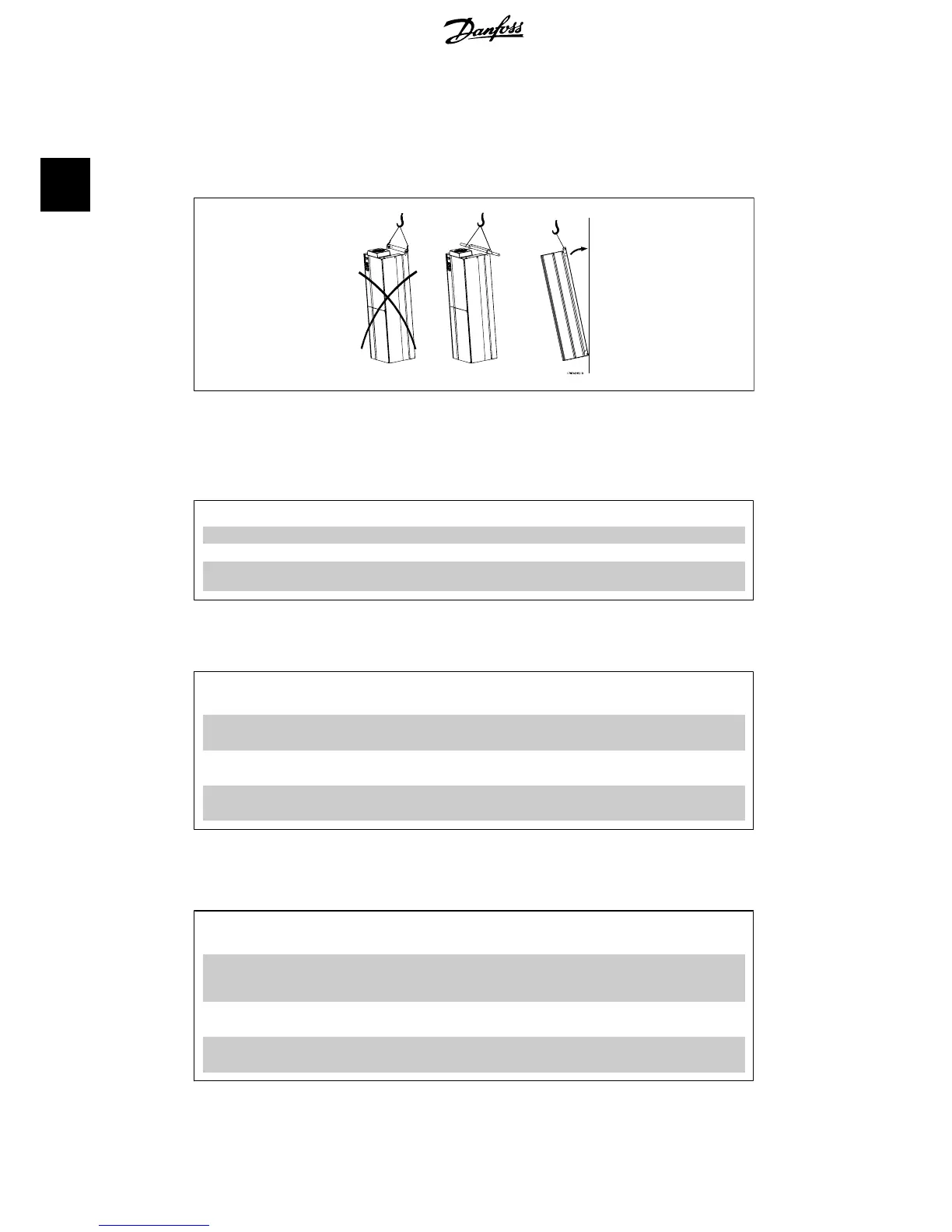

Illustration 2.2: Recommended lifting method
2.1.5. Shipping Weights and Dimensions
The weight and dimensions of the frequency converter and packaging depend on the actual unit.
Enclosure D1 Enclosure D2 Enclosure E1
IP 00 / Chassis 91 (200) 138 (304) 277 (610)
IP 21 / NEMA Type 1 104 (229) 151 (333) 313 (689)
IP 54 / NEMA Type 12 104 (229) 151 (333) 272 (689)
Table 2.1: Shipping weight in kg (lbs)
Weight is specified as the maximum weight with all possible options included.
IP00 / Chassis IP21 / NEMA Type 1
IP54 / NEMA Type 12
Enclosure D1 1220*650*570
(48*25.6*22.4)
1730*650*570
(53.9*25.6*22.4)
Enclosure D2 1490*650*570
(58.7*25.6*22.4)
1730*650*570
(68.1*25.6*22.4)
Enclosure E1 1705*831*736
(67.1*32.8*29.0)
2197*840*736
(86.5*33.1*29.0)
Table 2.2: Card board box size. Shipping dimensions (width * hight * depth in mm (in))
The units are shipped laying down, and the above dimensions are according to this. The dimen-
sions include the skid where the box is mounted.
IP00 / Chassis IP21 / NEMA Type 1
IP54 / NEMA Type 12
Enclosure D1 1046*408*373
(41*16.1*14.7)
1208*420*373
(47.5*16.5*14.7)
Enclosure D2 1327*408*373
(52.2*16.1*14.7)
1588*420*373
(62.5*16.5*14.7)
Enclosure E1 1499*585*506
(59.0*23.0*19.9)
2000*6000*494
(78.7*23.6*19.5)
Table 2.3: Drive dimensions (height * width * depth in mm (in))
2. Preinstallation
VLT
®
5000/6000/8000
High Power Installation Guide
8 MI.90.J2.02 - VLT
®
is a registered Danfoss trademark
2

Danfoss VLT 6000 Specifications

General

Category	Controller
Cooling method	Forced air cooling
Enclosure	IP20
Output frequency range	0-500Hz
Protection features	Overvoltage, Undervoltage, Short circuit
Communication options	Profibus
Ambient temperature range	-10°C to +40°C
