3.7.6 5-6* Pulse Outputs
Parameters for conguring the scaling and output
functions of pulse outputs. The pulse outputs are
designated to terminals 27 or 29. Select terminal 27 output
in parameter 5-01 Terminal 27 Mode and terminal 29 output
in parameter 5-02 Terminal 29 Mode.
Output value
Output
(Hz)
High output
value
P 5-60(term27)
P 5-63(term29)
High freq.
P 5-62(term27)
P 5-65(term29)
130BA089.11

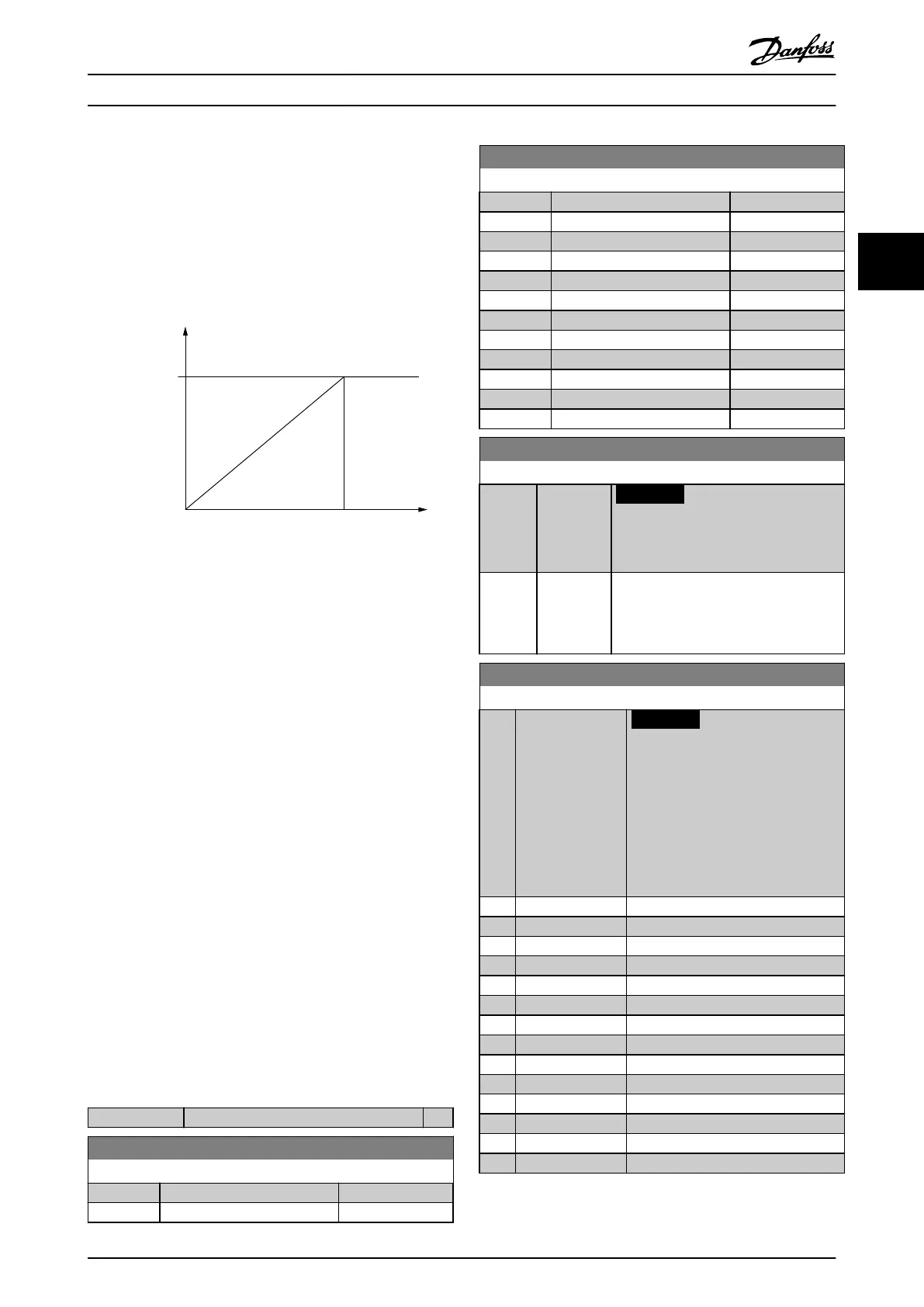

Illustration 3.28 Pulse Outputs
Options for readout output variables
[0] No operation
[45] Bus ctrl.
[48] Bus ctrl. timeout
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative to limit
[105] Torque relative to rated
[106] Power
[107] Speed
[113] Ext. Closed Loop
[114] Ext. Closed Loop
[115] Ext. Closed Loop
Select the operation variable assigned for terminal 27
readouts.
This meter cannot be adjusted while the motor is running.
Same options and functions as parameter group 5-6* Pulse
Output.
[0]
* No operation
5-60 Terminal 27 Pulse Output Variable
Option: Function:
[0] * No operation
[45] Bus ctrl.
5-60 Terminal 27 Pulse Output Variable
Option: Function:
[48] Bus ctrl., timeout
[100] Output freq. 0-100
[101] Reference Min-Max
[102] Feedback +-200%
[103] Motor cur. 0-Imax
[104] Torque 0-Tlim
[105] Torque 0-Tnom
[106] Power 0-Pnom
[107] Speed 0-HighLim
[113] Ext. Closed Loop 1
[114] Ext. Closed Loop 2
[115] Ext. Closed Loop 3
5-62 Pulse Output Max Freq #27
Range: Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
5000 Hz* [0 - 32000
Hz]
Set the maximum frequency for terminal
27 corresponding to the output variable
selected in parameter 5-60 Terminal 27
Pulse Output Variable.
5-63 Terminal 29 Pulse Output Variable
Option: Function:
NOTICE
This parameter cannot be
adjusted while the motor is
running.
Select the variable for viewing on the
terminal 29 display. Same options and
functions as parameter group 5-6*
Pulse Output.
[0] * No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[100] Output freq. 0-100
[101] Reference Min-Max
[102] Feedback +-200%
[103] Motor cur. 0-Imax
[104] Torque 0-Tlim
[105] Torque 0-Tnom
[106] Power 0-Pnom
[107] Speed 0-HighLim
[113] Ext. Closed Loop 1
[114] Ext. Closed Loop 2
[115] Ext. Closed Loop 3
Parameter Descriptions Programming Guide
MG11CE02 Danfoss A/S © 03/2015 All rights reserved. 79
