Danfoss VLT AutomationDrive FC 300 Instruction Manual

4 How to Program
4.1 The Graphical and Numerical LCP
The easiest programming of the adjustable frequency drive is performed by the Graphical LCP (LCP 102). It is necessary to consult the adjustable frequency
drive Design Guide when using the Numeric Local Control Panel (LCP 101).

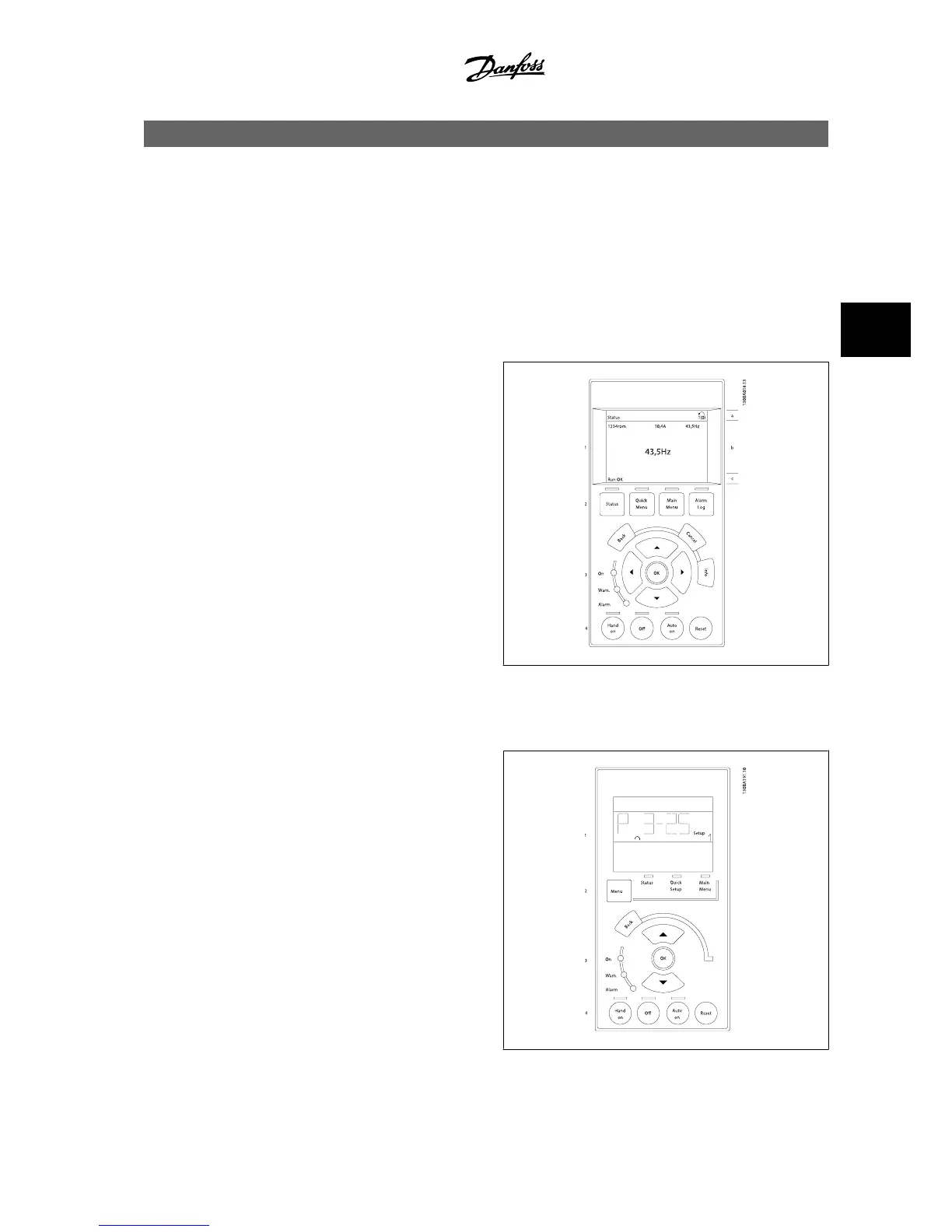

4.1.1 How to Program on the Graphical LCP
The following instructions are valid for the graphical LCP (LCP 102):
The control panel is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and LEDs - changing parameters and switching be-
tween display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
All data is displayed in a graphical LCP display, which can show up to five
items of operating data while displaying [Status].
Display lines:
a. Status line: Status messages displaying icons and graphic.
b. Line 1-2: Operator data lines displaying data defined or chosen
by the user. By pressing the [Status] key, up to one extra line
can be added.
c. Status line: Status messages displaying text.
4.1.2 How to Program on the Numerical Local Control Panel
The following instructions are valid for the numerical LCP (LCP 101):
The control panel is divided into four functional groups:
1. Numerical display.
2. Menu keys and LEDs - changing parameters and switching be-
tween display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
VLT
®
AutomationDrive FC 300 Instruction
Manual
4 How to Program
MG.33.AG.22 - VLT
®
is a registered Danfoss trademark 4-1
4
