Danfoss VLT AutomationDrive FC 302 Operating Instructions

130BB019.10
1
2
3
4
5
6
7
8
9
10

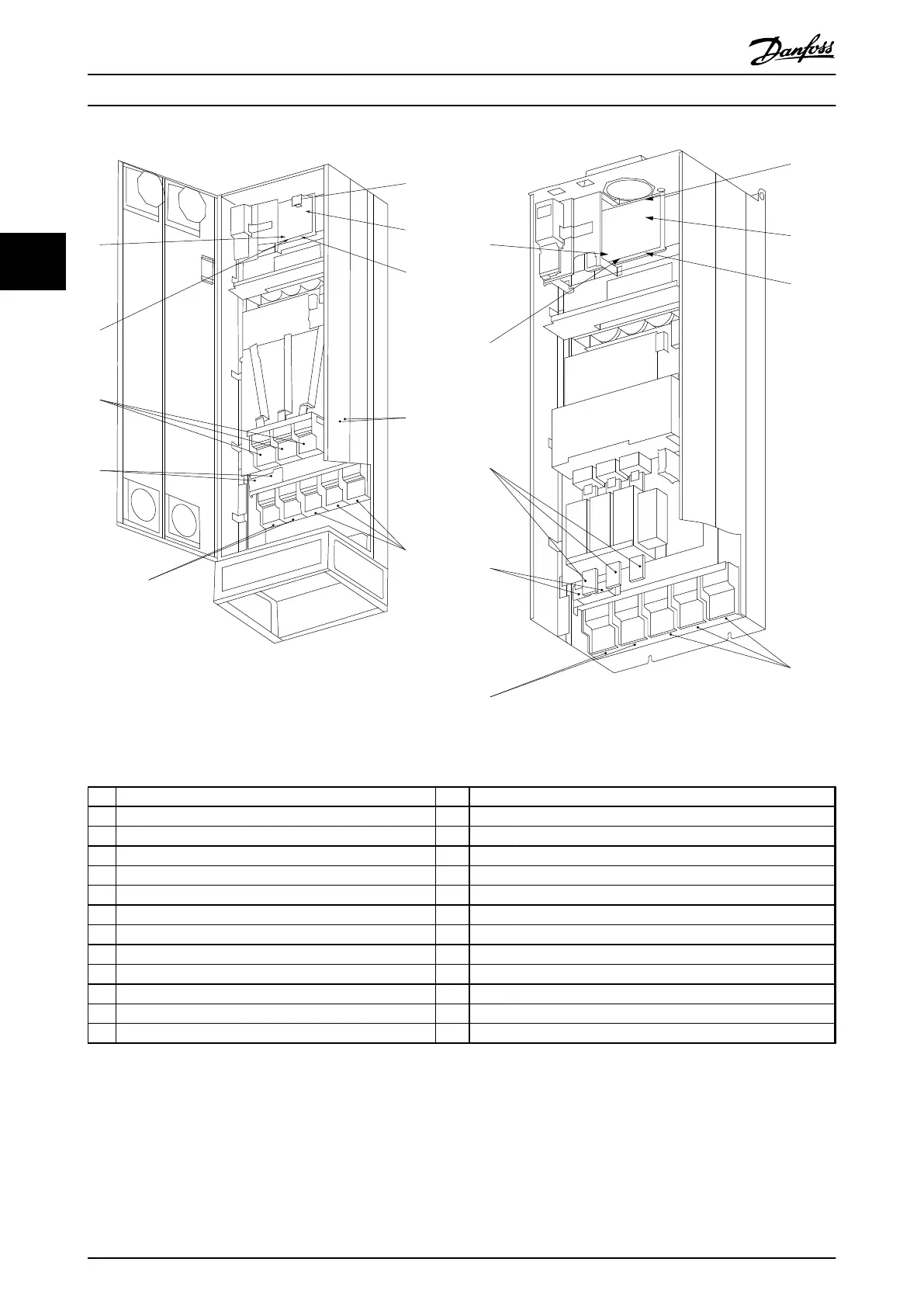

Illustration 3.56 Compact IP21 (NEMA 1) and IP54 (NEMA 12)
Enclosure Type E1
130BB020.10
1
2
3
4
5
6
7
8
10
Illustration 3.57 Compact IP00 (Chassis) with Disconnect, Fuse
and RFI Filter, Enclosure Type E2
1)
AUX Relay 5) Load sharing
01 02 03 -DC +DC
04 05 06 88 89
2) Temp Switch 6) SMPS Fuse (see fuse tables for part number)
106 104 105 7) Fan Fuse (see fuse tables for part number)
3) Mains 8) AUX Fan
R S T 100 101 102 103
91 92 93 L1 L2 L1 L2
L1 L2 L3 9) Mains ground
4) Brake 10) Motor
-R +R U V W
81 82 96 97 98
T1 T2 T3
Table 3.17 Legend to Illustration 3.56 and Illustration 3.57
How to Install
VLT
®
Automation Drive FC 300 Operating Instructions
48 MG33U402 - Rev. 2013-12-16
33
