Danfoss VLT AutomationDrive FC 302 Design Guide

FC 300 Design Guide
How to Program
" TheFC300LocalControlPanel
" How t o Program o n the Lo cal Control Panel
The following instructions, pertain to the
graphical LCP (LCP 102):

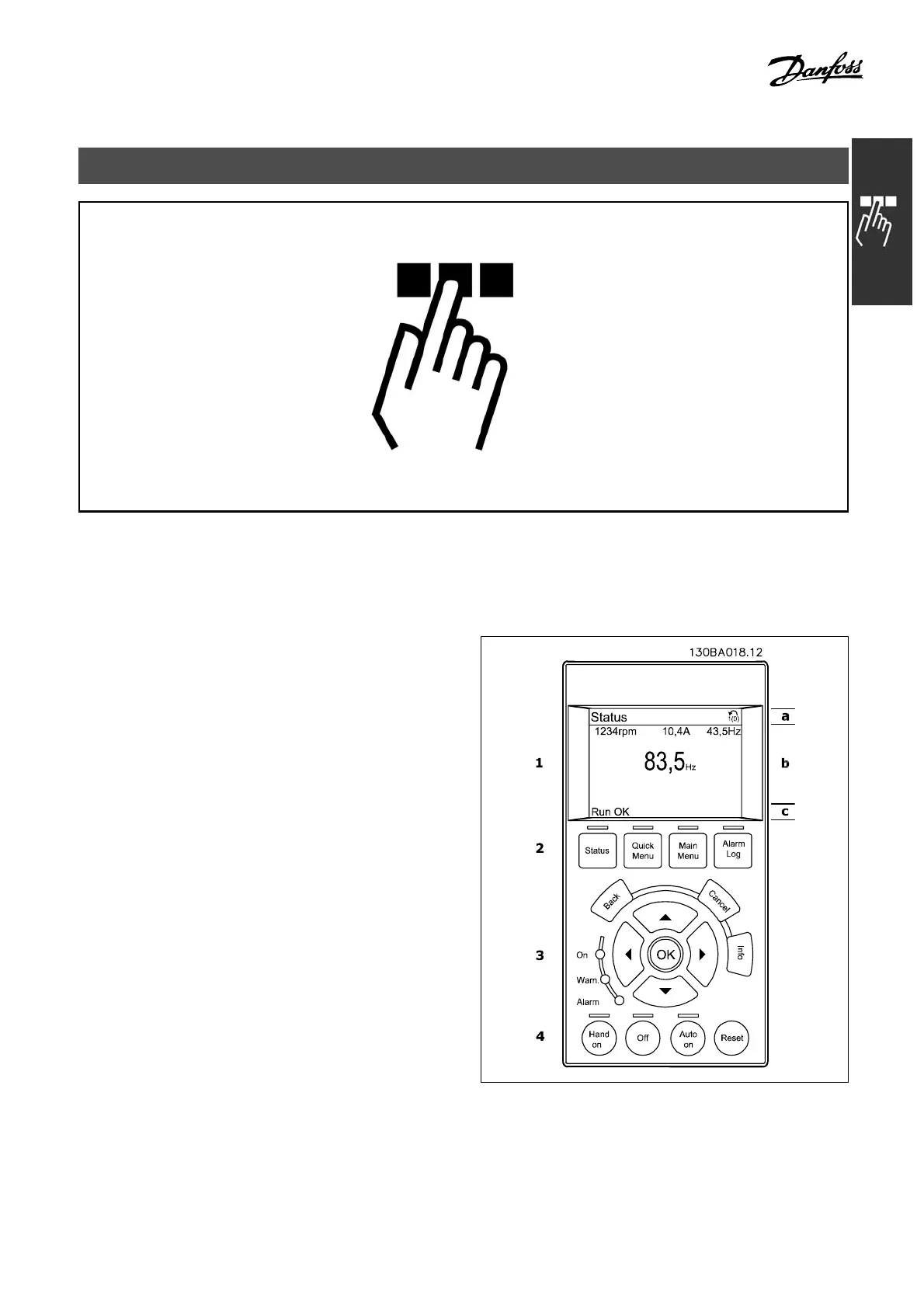

The control panel is divided into four
functional groups:
1. Graphical display with Status lines.
2. Menu keys and LEDs - changing parameters
and switching between display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
a. Status line:Status messages displaying
icons and graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, one extra line can be added.
c. Status line: Status messages displaying text.
119
MG.33.B3.22 - VLT is a registered Danfoss trademark
