Danfoss VLT AutomationDrive FC 302

e30bu181.12
-XD4.1
-XD11.1
-XDL.1
1
2
3
4
U W
V
5

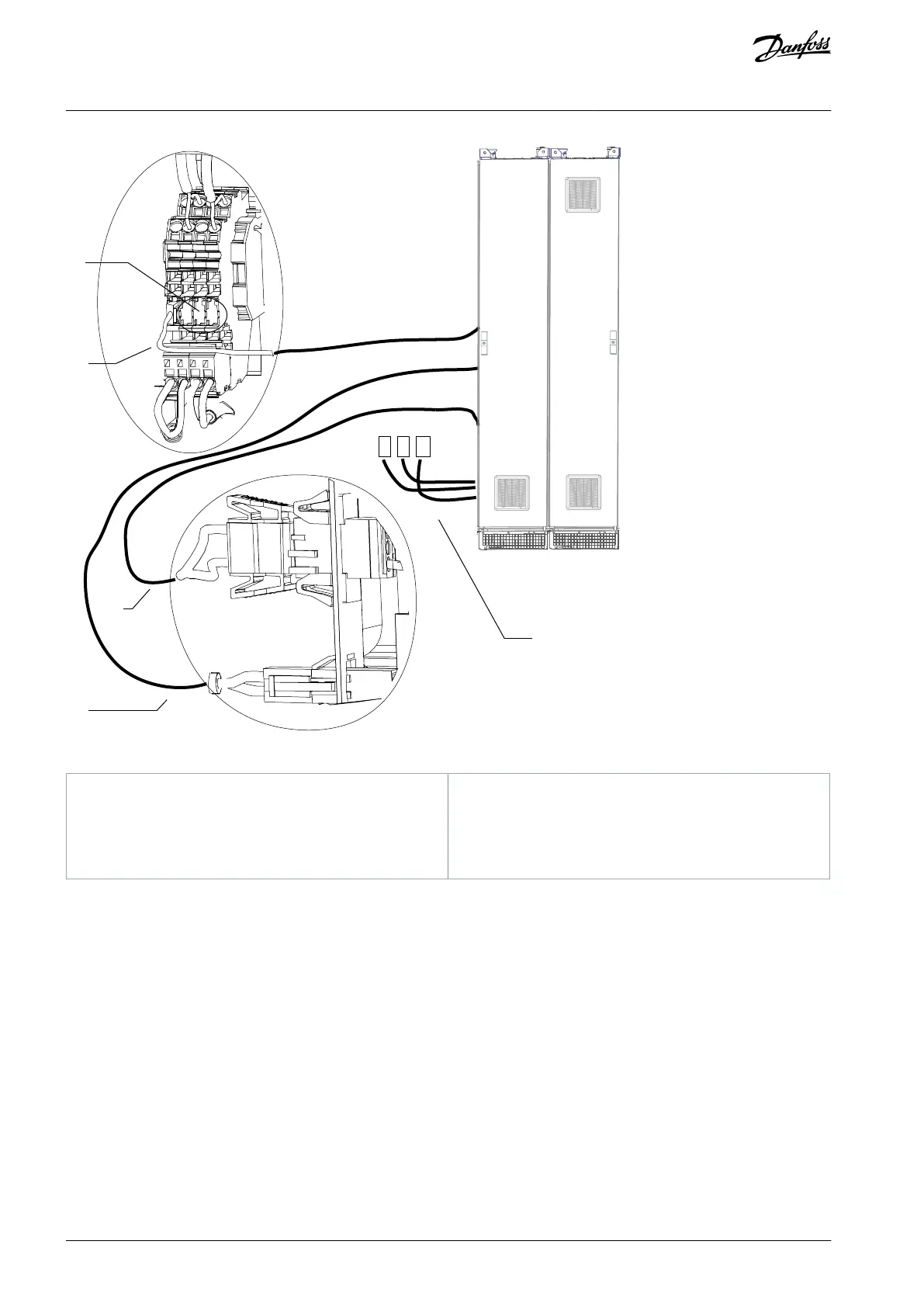

Illustration 36: Split Shipment Electrical Connections (dU/dt Cabinet + Top Exit Cabinet)
1
Additional terminal connections
2
Thermal protection wiring harness to drive cabinet
3
DC-link harness to fan supply in drive cabinet
4
Cabinet heater supply harness to drive cabinet
5
Motor cables (U/V/W) to motor terminals (U/V/W) in
drive cabinet
AQ262139143212en-000301 / 130R087970 | Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
