Danfoss VLT AutomationDrive FC 302

e30bu194.10
L1-L2
-FC7
-TB7
1
24 V
-XD1
2 A
N
L
+
~
+
60 W

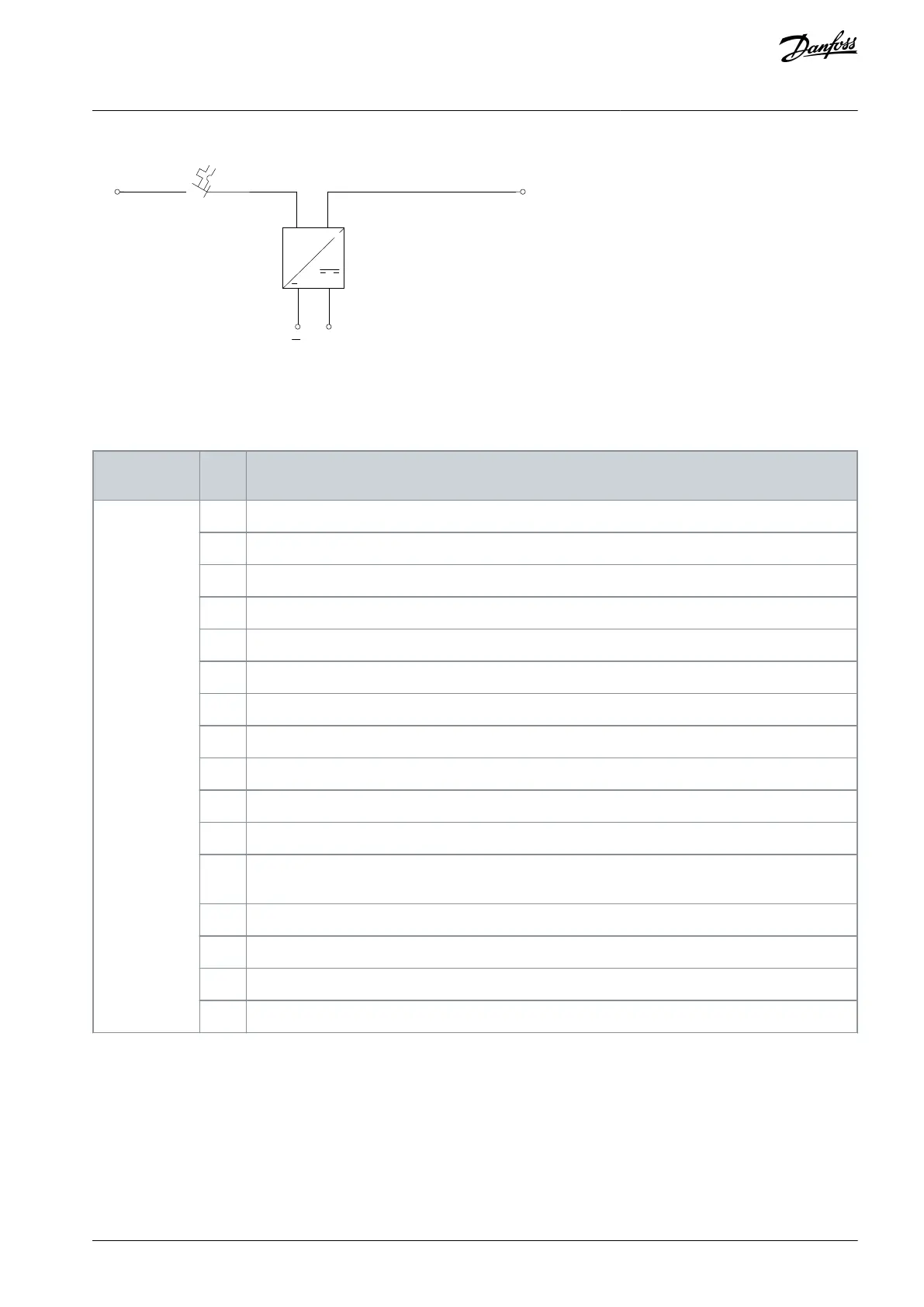

Illustration 51: 24 V DC External Supply Terminals
5.7.6.4 AC Customer Socket
Table 59: Auxiliary Function Type Codes
Character posi-
tion
Code
Description
23–24
A1
AC socket + cabinet light
AA
AC socket + cabinet light + extended I/O terminals
AB
AC socket + cabinet light + cabinet heater
AC
AC socket + cabinet light + motor heater control
AD
AC socket + cabinet light + insulation monitor
AE
AC socket + cabinet light + extended I/O terminals + cabinet heater
AF
AC socket + cabinet light + extended I/O terminals + motor heater control
AG
AC socket + cabinet light + extended I/O terminals + insulation monitor
AH
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AI
AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AJ
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL
AC socket + cabinet light + cabinet heater + motor heater control
AM
AC socket + cabinet light + cabinet heater + insulation monitor
AN
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO
AC socket + cabinet light + motor heater control + insulation monitor
The customer socket provides a supply for measurement tools, equipment, or a computer. The socket type is CEE 7/3 ("Schuko",
Type F) or NEMA 5-15 grounded (Type B). The default voltage is 230 V AC (IEC variant) and 115 V AC (UL variant). When using an
external supply, the maximum output power is 450 VA (IEC variant) and 230 VA (UL variant). When using a transformer supply, the
maximum output power is 200 VA for both variants.
AQ262139143212en-000301 / 130R0879 | 93Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
