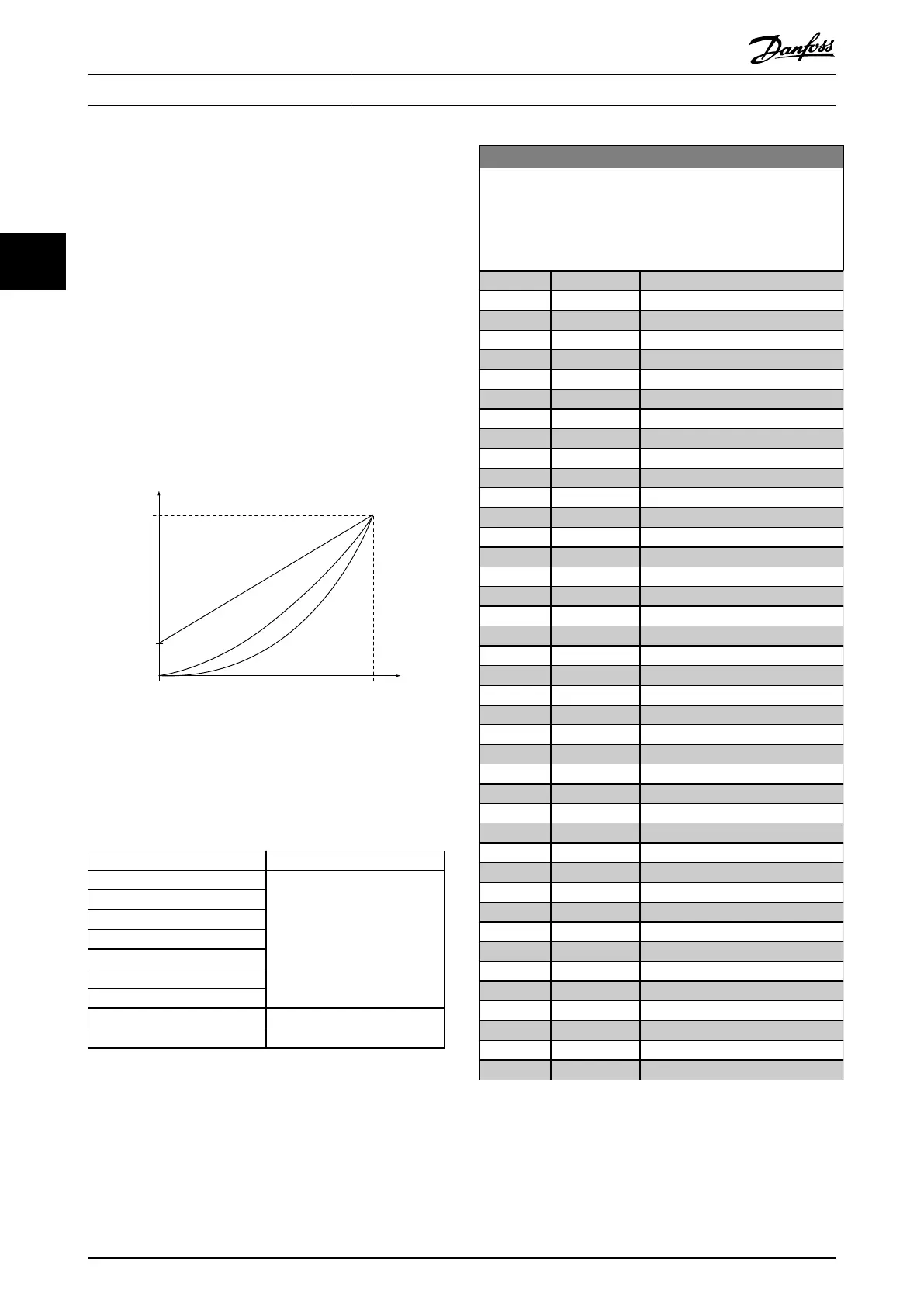

3.1.2 0-3* LCP Custom Readout and Display
Text
It is possible to customize the display elements for various
purposes.
Custom readout
The calculated value to be shown is based on the actual
speed and the settings in:
•
Parameter 0-30 Custom Readout Unit
•
Parameter 0-31 Custom Readout Min Value (linear
only)
•
Parameter 0-32 Custom Readout Max Value
•
Parameter 4-14 Motor Speed High Limit [Hz]
0
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
Motor Speed
130BB779.10
Motor Speed
High limit
P 4-14 (Hz)
Linear Unit (e.g. Speed and ow)
Quadratic Unit (Pressure)
Cubic Unit (Power)
Illustration 3.1 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit type Speed relation
Dimensionless
Linear
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure Quadratic
Power Cubic
Table 3.1 Speed Relation
0-30 Custom Readout Unit
Program a value to be shown in the display of the LCP. The value
has a linear, squared, or cubed relation to speed. This relation
depends on the unit selected (see Table 3.1). The actual
calculated value can be read in parameter 16-09 Custom Readout.
Option: Function:
[0] None
[1] * %
[5] PPM
[10] l/Min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m3/s
[24] m3/min
[25] m3/h
[30] kg/s
[31] kg/min
[32] kg/h
[33] t/min
[34] t/h
[40] m/s
[41] m/min
[45] m
[60] Degree Celsius
[70] mbar
[71] bar
[72] Pa
[73] kPa
[74] m Wg
[80] kW
[120] GPM
[121] gal/s
[122] gal/min
[123] gal/h
[124] CFM
[127] ft3/h
[140] ft/s
[141] ft/min
[160] Degree Fahr
[170] psi
[171] lb/in2
[172] in WG
[173] ft WG
[180] hp
Parameters
VLT
®
Compressor Drive CDS 803
20 Danfoss A/S © 06/2019 All rights reserved. MG18P202
