There is no access to UDC- and UDC+ on the following units:
IP20, 380–480 V, 30 kW (40 hp).
6.3.2 Terminal Overview of Enclosure Sizes H3–H5
1
2
2
3
4
U
V
W
-DC
+DC
e30bb634.11
5
MAINS
MOTOR

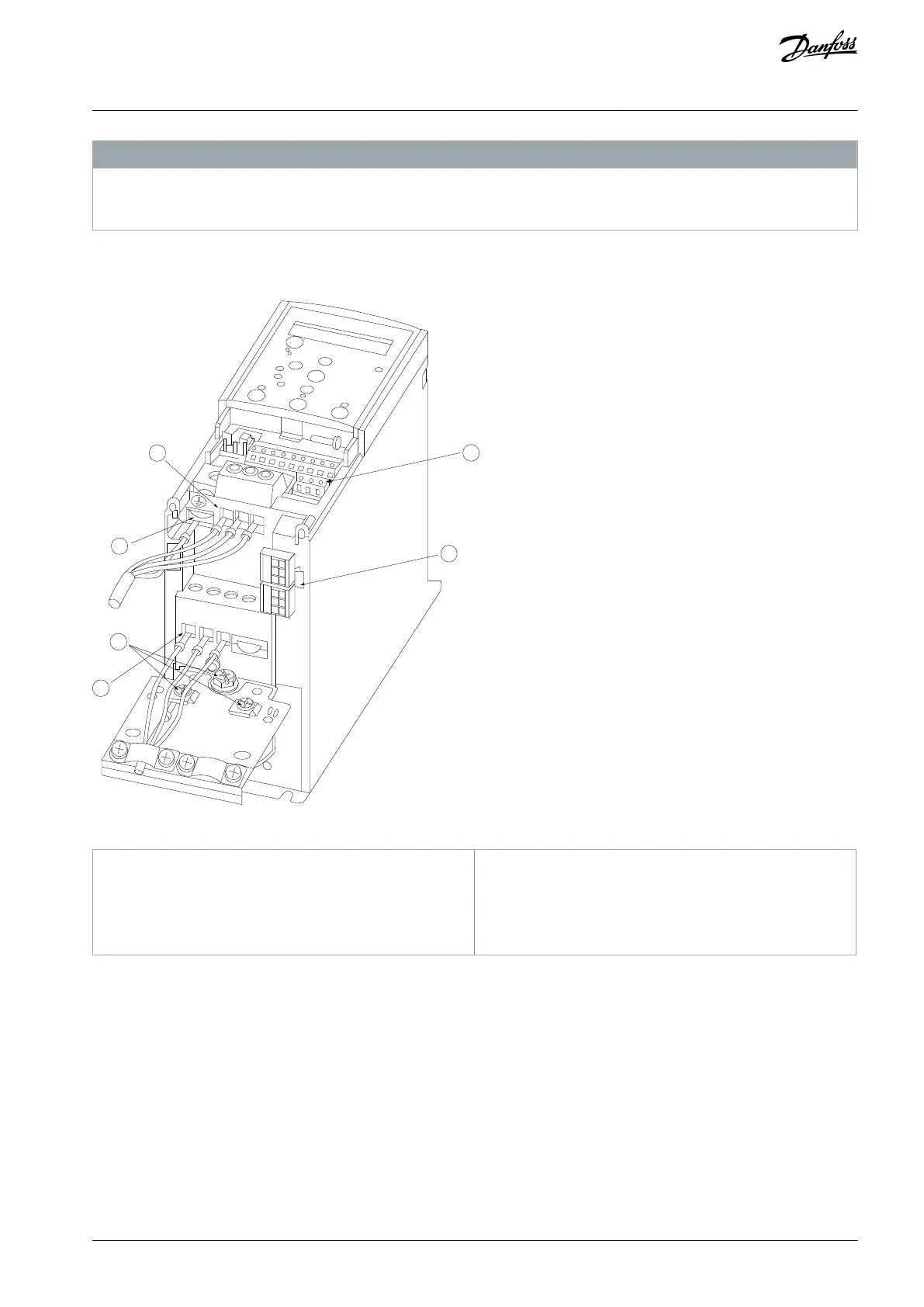

Illustration 28: Enclosure Sizes H3–H5
1
Mains
2
Ground
3
Compressor
4
Relays
5
Control terminals
AJ330233902305en-000201 / 130R0596 | 47
Danfoss A/S © 2021.05
Electrical Installation
Considerations
VLT® Compressor Drive CDS 803
Design Guide
46
48
