Danfoss VLT CDS 803 User Manual

•
•
•
Relay 2
Terminal 04: Common.
Terminal 05: Normally open.
Terminal 06: Normally closed.
Relay1
Relay2
03
02
01
06
05
04
e30bi798.10

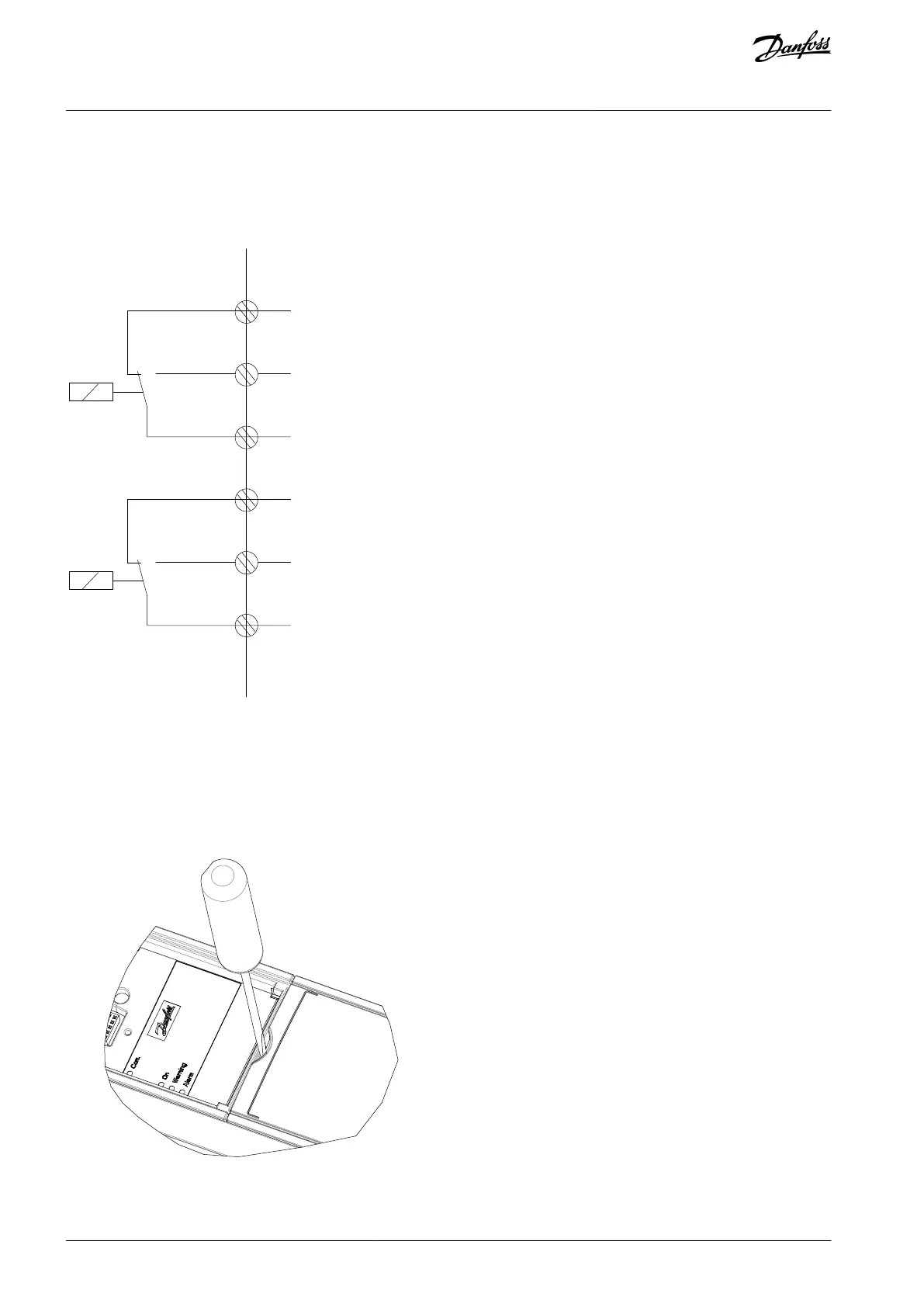

Illustration 30: Relay Outputs 1 and 2
6.3.6 Control Terminals
Remove the terminal cover to access the control terminals.
Use a flat-edged screwdriver to push down the lock lever of the terminal cover under the LCP, then remove the terminal cover as
shown in the following illustration.
e30bd331.11
Illustration 31: Removing the Terminal Cover
AJ330233902305en-000201 / 130R059650 | Danfoss A/S © 2021.05
Electrical Installation
Considerations
VLT® Compressor Drive CDS 803
Design Guide
