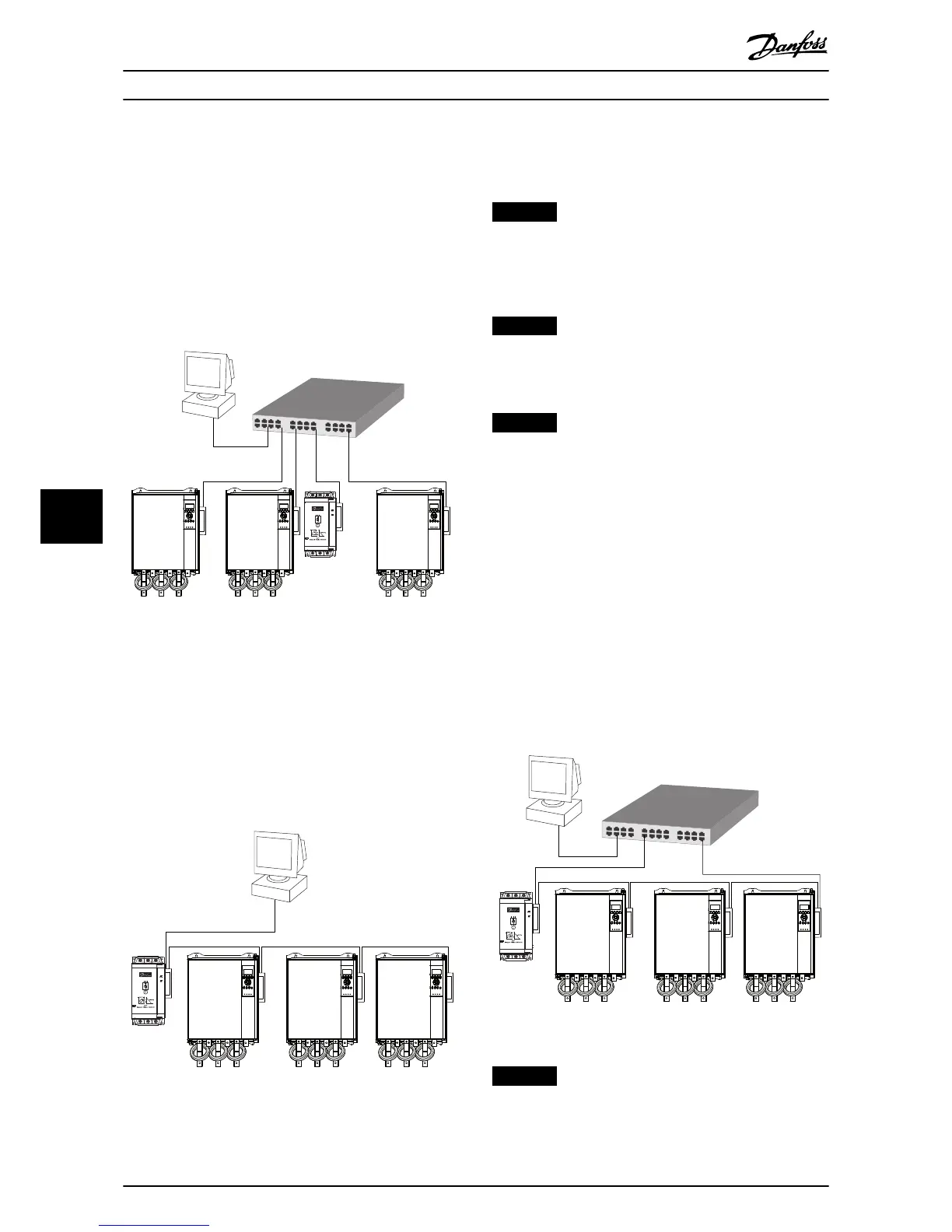

8 Network Design
The EtherNet/IP Module supports star, line, and ring
topologies.
8.1 Star Topology
In a star network, all controllers and devices connect to a
central network switch.
177HA628.10
Illustration 8.1 Star Network Topology
8.2 Line Topology
In a line network, the controller connects directly to 1 port
of the
rst EtherNet/IP Module. The 2
nd
Ethernet port of
the EtherNet/IP Module connects to another module,
which in turn connects to another module until all devices
are connected.
177HA629.10
Illustration 8.2 Line Network Topology
NOTICE
The EtherNet/IP Module has an integrated switch to
allow data to pass through in line topology. The
EtherNet/IP Module must be receiving control power
from the soft starter for the switch to operate.
NOTICE
If the connection between 2 devices is interrupted, the
controller cannot communicate with devices after the
interruption point.
NOTICE
Each connection adds a delay to communication with the
next module. The maximum number of devices in a line
network is 32. Exceeding this number may reduce the
reliability of the network.
8.3 Ring Topology
In a ring topology network, the controller connects to the
1
st
EtherNet/IP Module via a network switch. The 2
nd
Ethernet port of the EtherNet/IP Module connects to
another module, which in turn connects to another
module until all devices are connected. The nal module
connects back to the switch.
The EtherNet/IP Module supports beacon-based ring node
conguration.
177HA630.10
Illustration 8.3 Ring Network Topology
NOTICE
The network switch must support loss of line detection.
Network Design EtherNet/IP Module
22 Danfoss A/S © 05/2017 All rights reserved. MG17Q102
