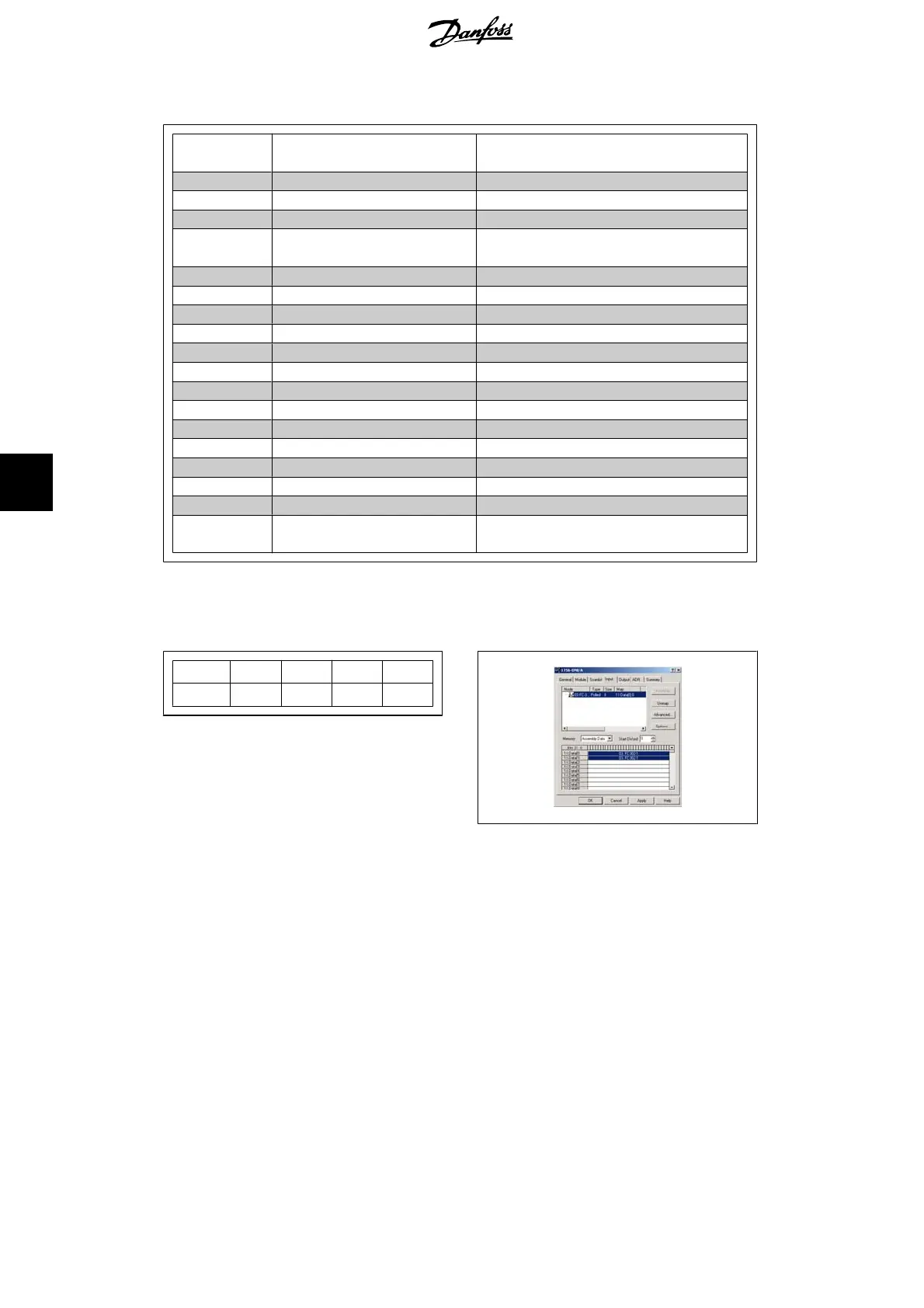

Danfoss VLT FC 100 Series User Manual

Parameter
No.
Function Setting
4-10 Motor speed range/direction Both directions [2]
5-10 Digital input 18 No operation [0]
5-11 Digital input 19 Reversing [10]
5-40 Function relay Control word bit 11 [36]
Control word bit 12 [37]
8-03 Control word timeout time 1.0 sec
8-04 Control word timeout function Stop [2]
8-10 Control word profile FC Profile
8-50 Coasting select Bus [1]
8-51 Quick-stop select Bus [1]
8-52 DC-brake select Bus [1]
8-53 Start select Bus [1]
8-54 Reversing select Logic AND [2]
8-55 Set-up select Bus [1]
8-56 Preset reference select Bus [1]
10-01 Baud rate select - set to match other DeviceNet stations
10-02 MAC ID - set desired station address
10-10 Process data type selection Instance 101/151 [1]
10-12 Process Data Config Read PCD 3: Torque
PCD 4: Digital input
7.1.1. Example of PLC Programming
In this example Instance 101/151 is placed in the following Input/Output address:
Input ad-
dress
0.0-0.15 0.16-0.31 1.0-1.15 1.16-1.31
Set-up Status
word
MAV Motor tor-
que
Digital in-
put
7. Application Examples FC 100/ 200/ 300 DeviceNet
70 MG.33.D3.02 - VLT
®
is a registered Danfoss trademark
7
