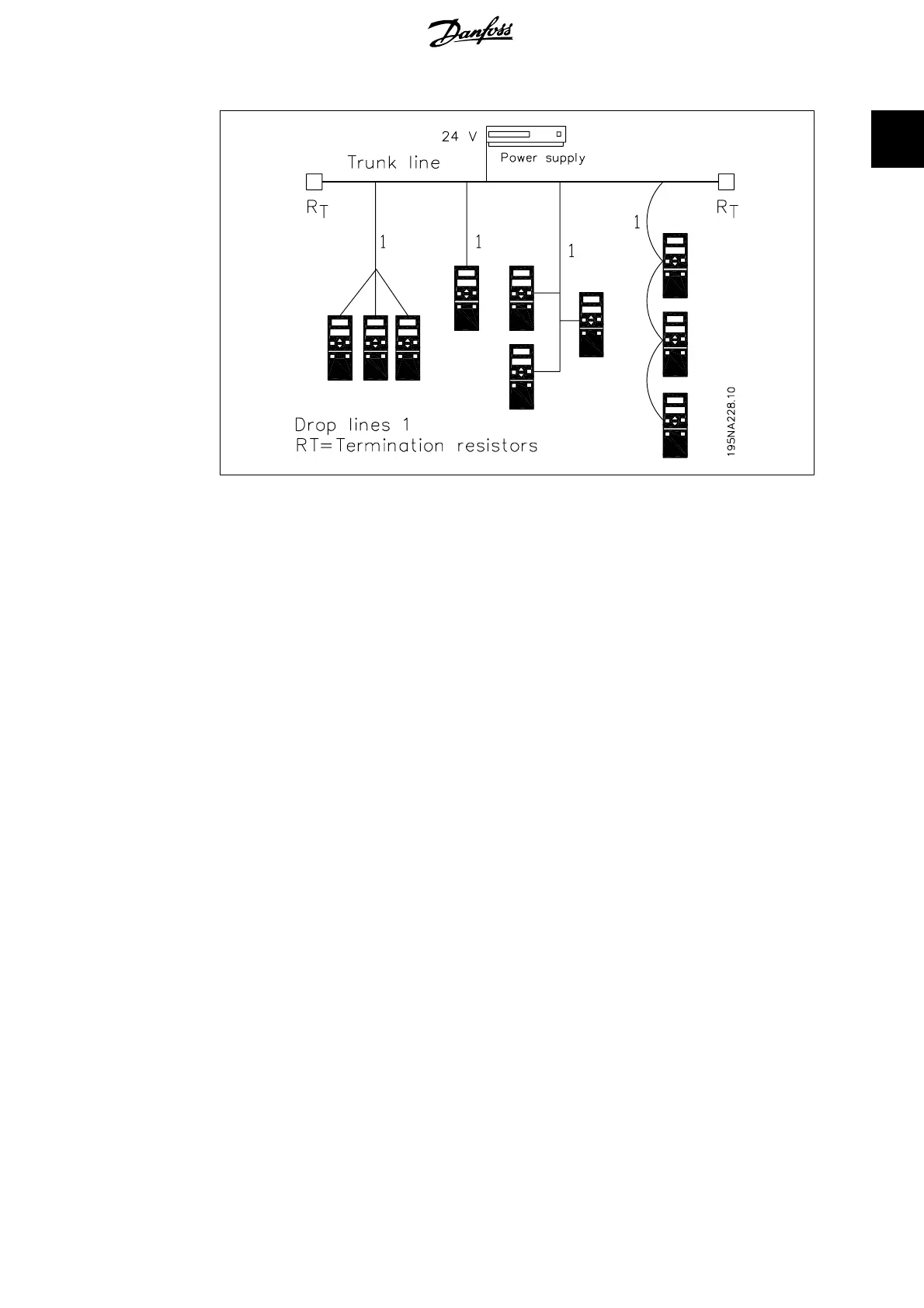

Illustration 1.1: Topology
1.5. Assumptions
These operating instructions assume that you are using a Danfoss FC 100, 200 or 300 frequency
converter with DeviceNet. It is also assumed that as master you are using a PLC or PC equipped
with a serial communication card supporting all the DeviceNet communication services required
by your application. Furthermore, it is assumed that all requirements stipulated in the DeviceNet
standard as well as those set up in the AC Drive Profile and those pertaining to the VLT frequency
converter are strictly observed as well as all limitations therein fully respected.
1.6. Hardware
These operating instructions relate to the DeviceNet option type no. 130B1102 and 130B1201.
1.7. Background Knowledge
The Danfoss DeviceNet is designed to communicate with any master abiding by the DeviceNet
standard. It is therefore assumed that you have full knowledge of the PC or PLC you intend to use
as a master in your system. Any questions pertaining to hardware or software produced by any
other manufacturer is beyond the scope of these operating instructions and is of no concern to
Danfoss. If you have questions about how to set up master - master communication or commu-
nication to a non-Danfoss slave, please consult the appropriate documentation.
