Danfoss VLT HVAC Drive FC 102 - Page 102

5.
6.
Connect the 3-phase AC motor wiring to the dU/dt terminals U (T1), V (T2), and W (T3).
Tighten the terminals in accordance with the specifications shown in 10.11 Fastener Torque Ratings.
Example
e30bu175.10
1
2
4
5
6
3

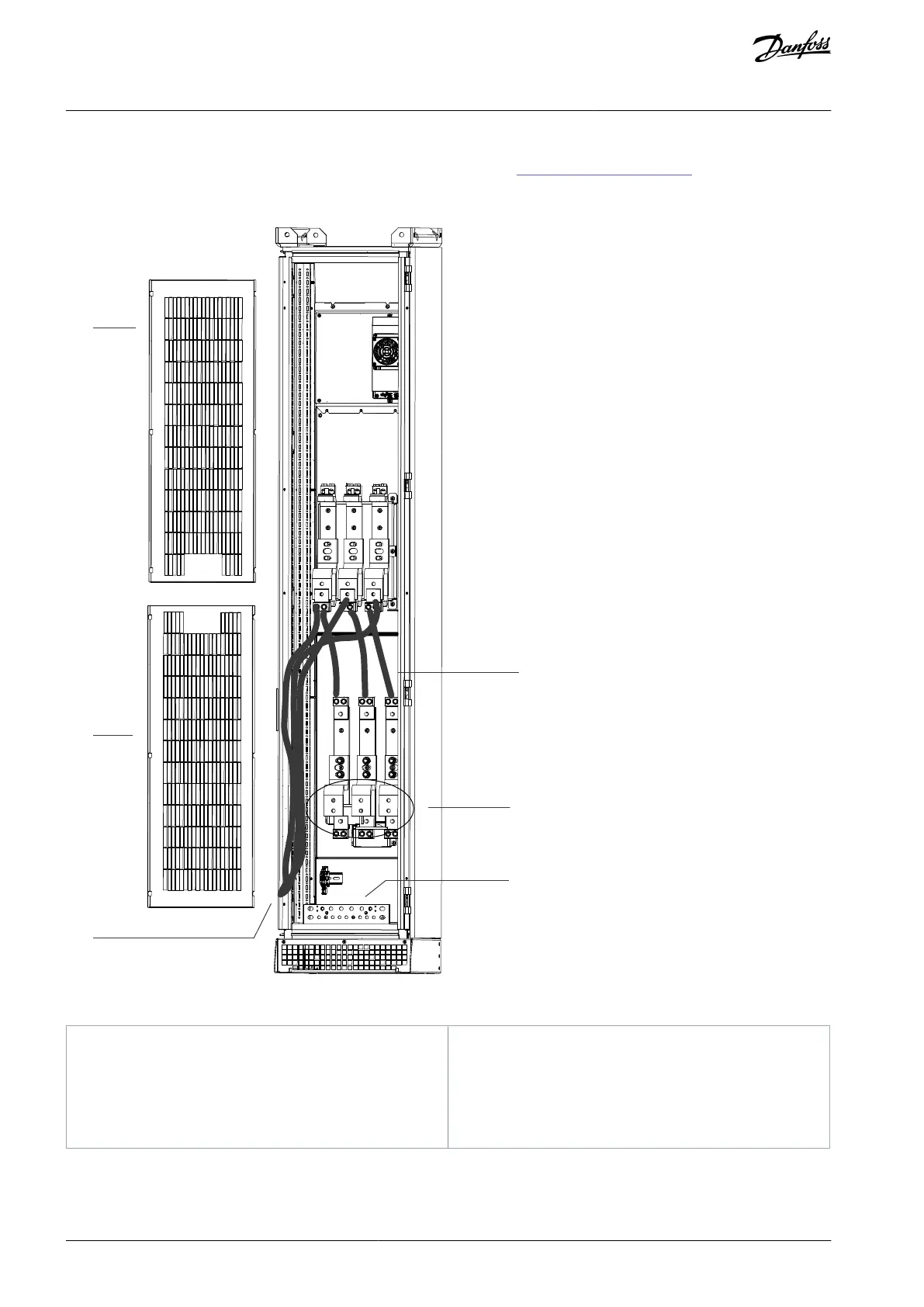

Illustration 60: Connection Points for the dU/dt Filter to Motor
1
Upper cover
2
Lower cover
3
Factory-installed power cables from the drive mod-
ule
4
Factory-installed cables
5
Motor terminals
6
Grounding bar
AQ262141314214en-000301 / 130R0880102 | Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
