10.9.4 E5h Enclosed Drive Exterior Dimensions
e30bu144.11
600 (23.6) /
800 (31.5)
2000
(78.7)
1200 (82.7)
1
6
600 (23.6)
2
4
5
600 (23.6)
3
55
(2.2)
100
(3.9)
400
(15.8)
600
(23.6)
600
(23.6)
600 (23.6)

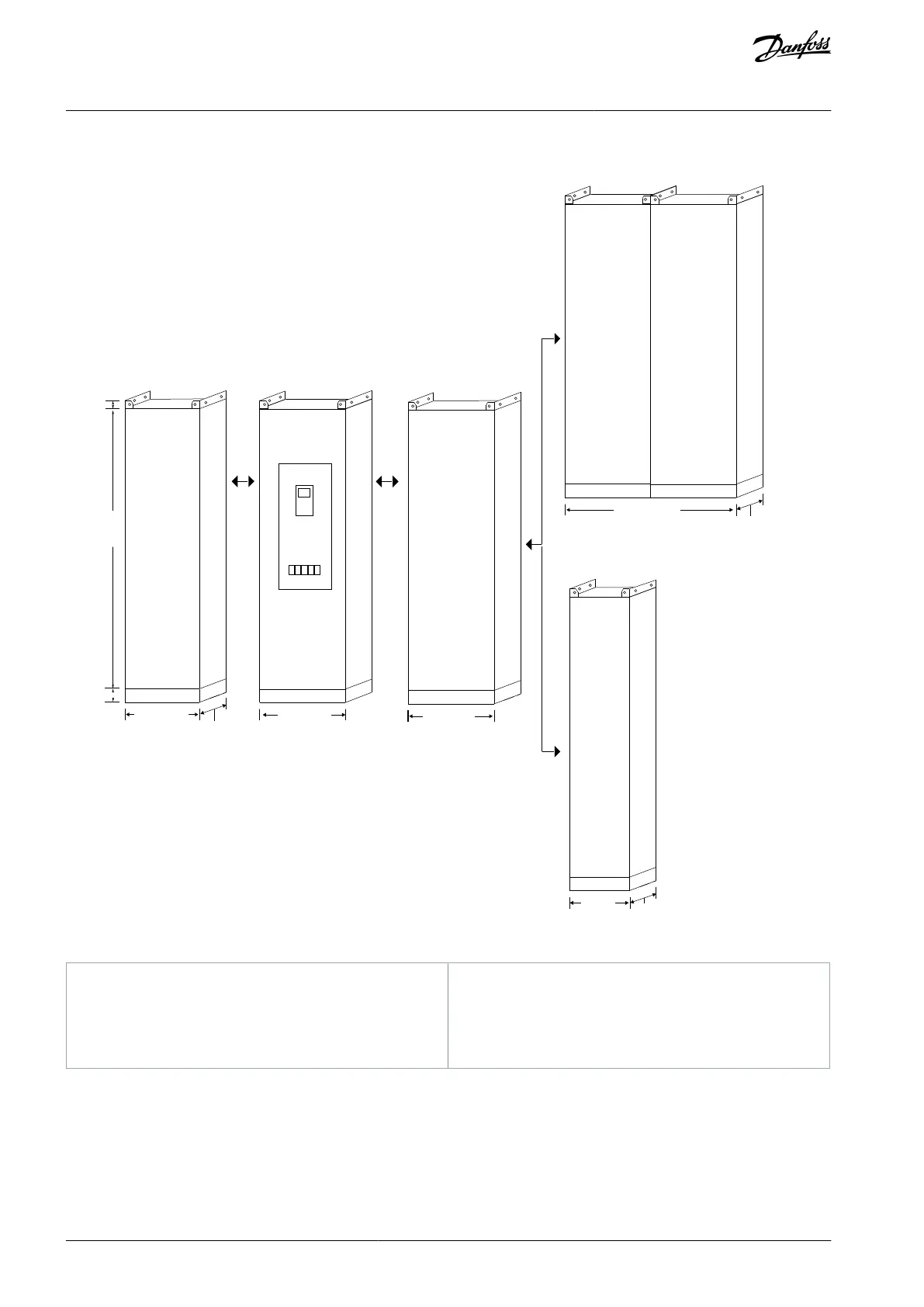

Illustration 80: Dimensions for E5h Enclosure with Standard Pedestal
1
Passive harmonic filter/line reactor cabinet
2
Options cabinet
3
E5h drive cabinet
4
Sine-wave cabinet
5
dU/dt cabinet
6
Standard pedestal
