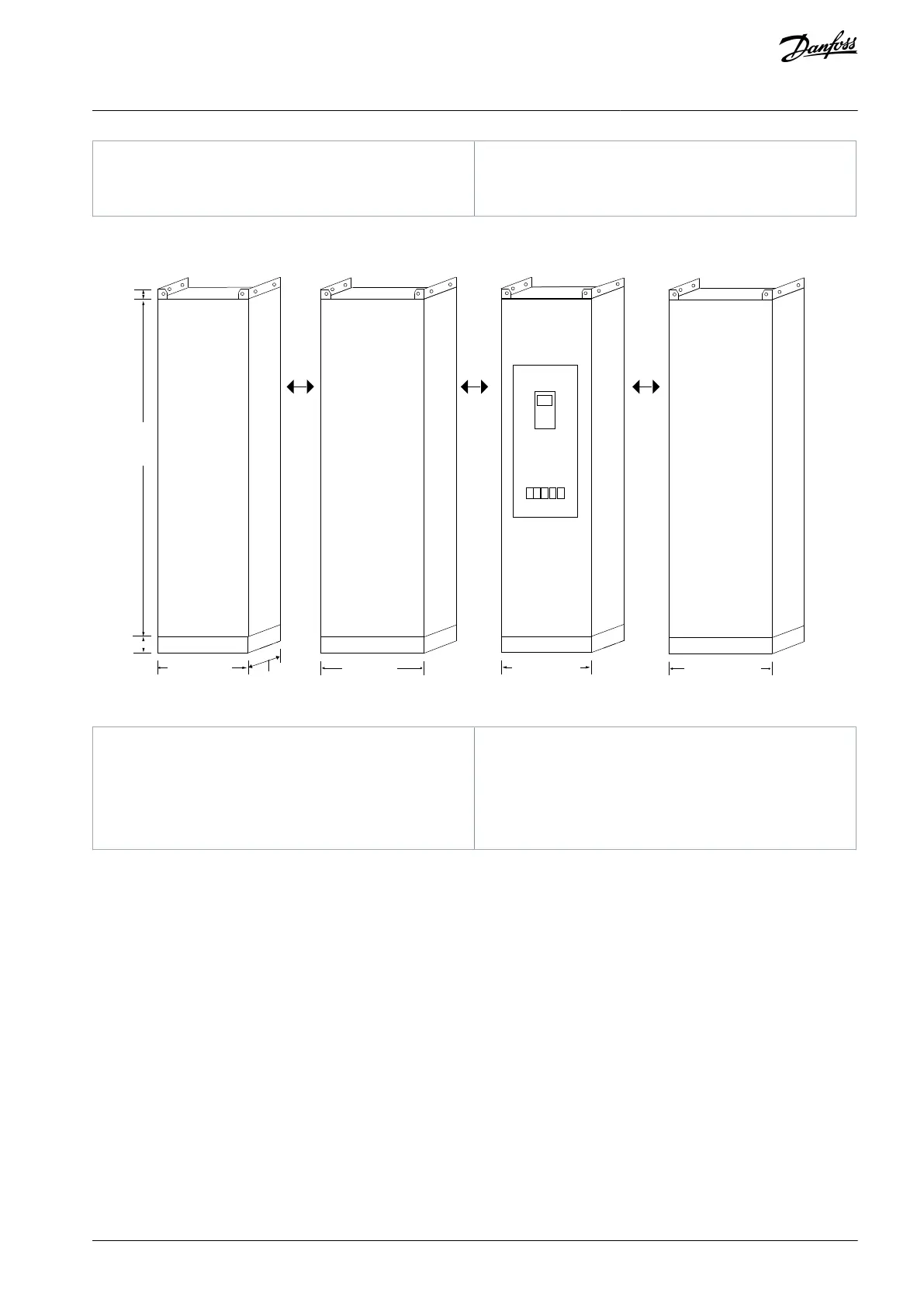

Danfoss VLT HVAC Drive FC 102 - D10 H Enclosed Drive Exterior Dimensions

1
Passive harmonic filter/line reactor cabinet
2
D9h drive cabinet
3
Sine-wave cabinet
4
Standard pedestal
10.9.3 D10h Enclosed Drive Exterior Dimensions
e30bu143.10
400 (15.8) /
2000
55
(78.7)
100 (3.9)
600 (23.6)
600 (23.6)
(2.2)
1
3
4
5
600 (23.6)
2
600 (23.6)
600 (23.6)
Illustration 79: Dimensions for D10h Enclosure with Standard Pedestal
1
Passive harmonic filter/line reactor cabinet
2
Options cabinet (provided when more than 1 input
option is ordered)
3
D10h drive cabinet
4
Sine-wave cabinet
5
Standard pedestal
AQ262141314214en-000301 / 130R0880 | 175Danfoss A/S © 2021.11
Specifications
VLT® HVAC Drive FC 102
Operating Guide
