10.9.5 E6h Enclosed Drive Exterior Dimensions
e30bu145.11
600 (23.6) /
800 (31.5)
2000
55
(78.7)
1200 (82.7)
(2.2)
1
6
600 (23.6)
2
4
5
800 (23.6)
3
100
(3.9)
400
(15.8)
600
(23.6)
600 (23.6)
600
(23.6)

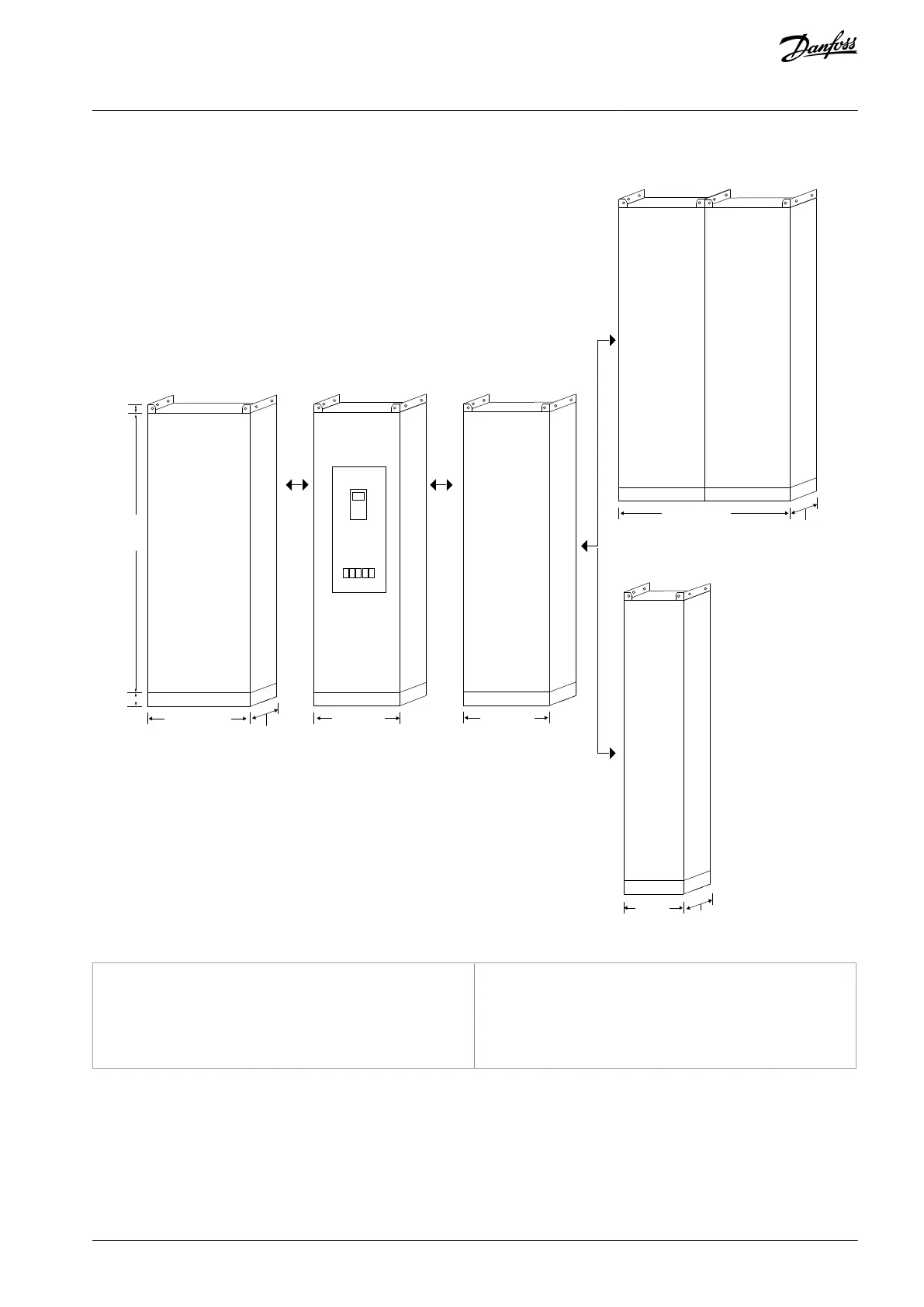

Illustration 81: Dimensions for E6h Enclosure with Standard Pedestal
1
Passive harmonic filter/line reactor cabinet
2
Options cabinet
3
E6h drive cabinet
4
Sine-wave cabinet
5
dU/dt cabinet
6
Standard pedestal
