Danfoss VLT HVAC Drive FC 102 - Page 66

e30bu181.12
-XD4.1
-XD11.1
-XDL.1
1
2
3
4
U W
V
5

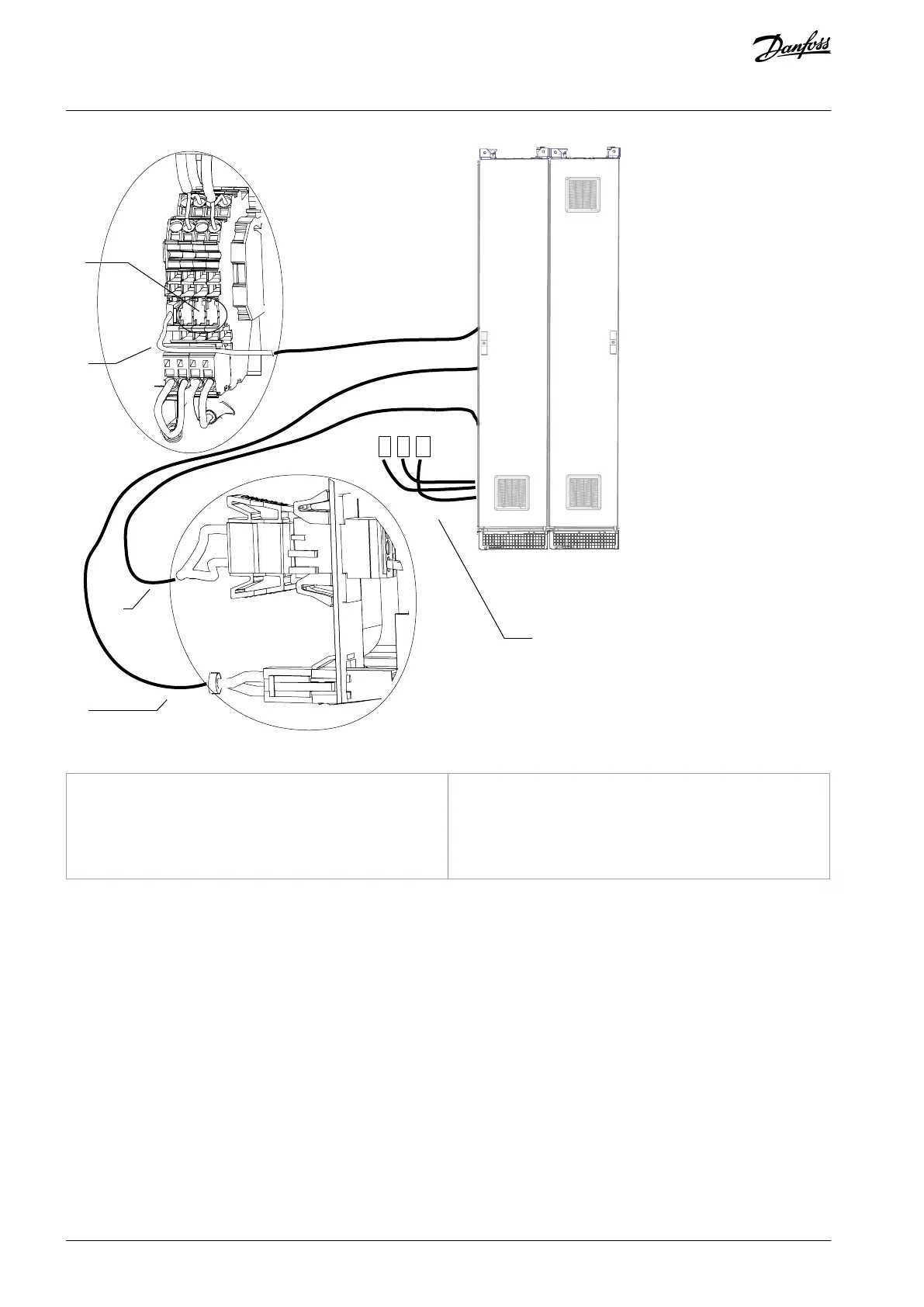

Illustration 32: Split Shipment Electrical Connections (dU/dt Cabinet + Top Exit Cabinet)
1
Additional terminal connections
2
Thermal protection wiring harness to drive cabinet
3
DC-link harness to fan supply in drive cabinet
4
Cabinet heater supply harness to drive cabinet
5
Motor cables (U/V/W) to motor terminals (U/V/W) in
drive cabinet
AQ262141314214en-000301 / 130R088066 | Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
