Danfoss VLT HVAC Drive FC 102 - Page 80

e30bu184.11
-XDL.1
-XD4.1
-XD11.1
8
9
10
11
R
TS
-XD4.3
-XD11.3
-XDL.1
2
3
4
6
7
-XD4.4
5
L1R
L3T
L2S
-XD4.1
1

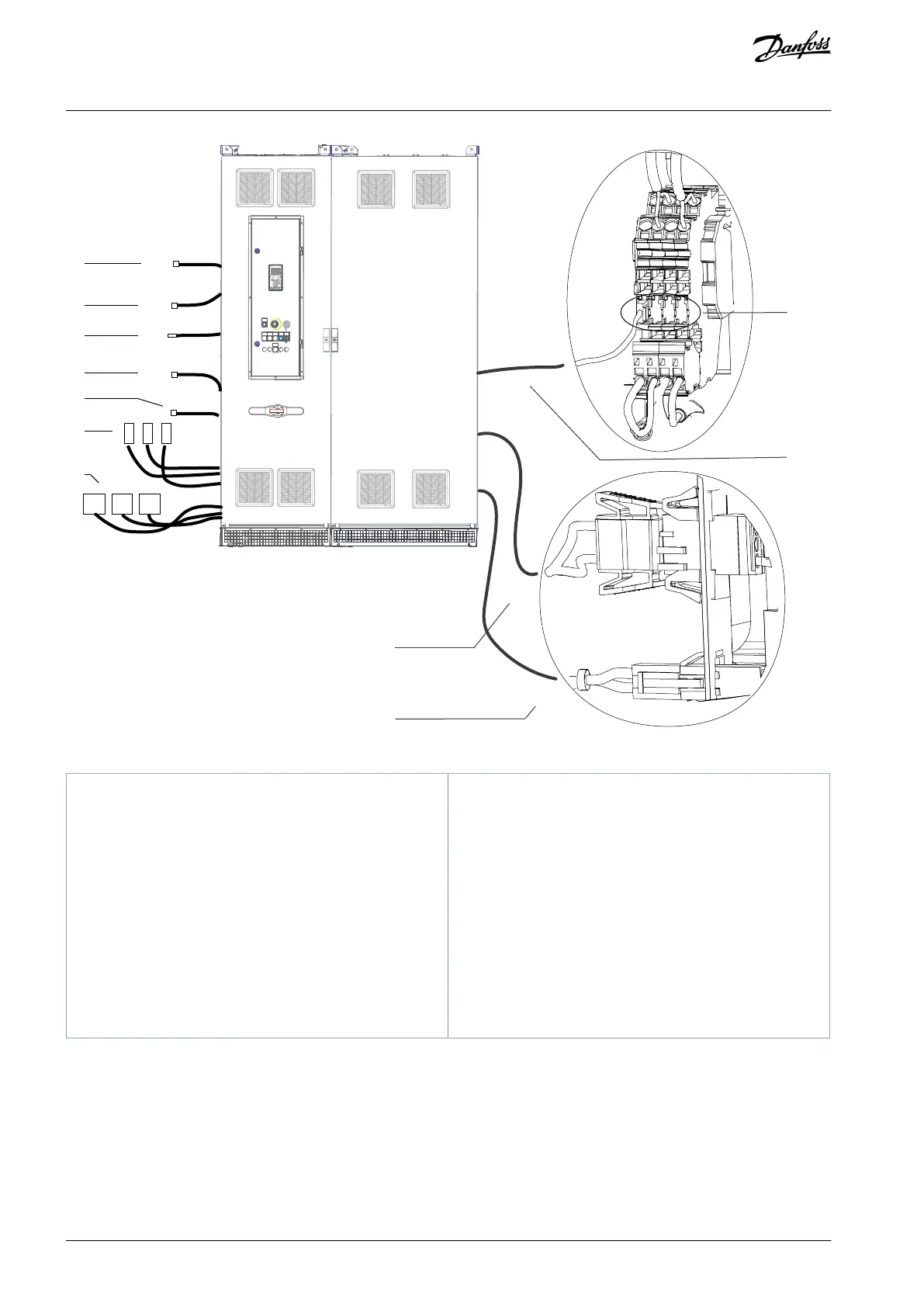

Illustration 46: Split Shipment Electrical Connections (Input Power Options Cabinet + E6h Drive Cabinet)
1
Cabinet heater supply harness to input filter cabinet
2
DC-link harness to fan supply to input filter cabinet
3
Thermal protection wiring harness in the input filter
cabinet
4
PHF contactor 1 supply harness to PHF cabinet (only
with PHF option)
5
PHF contactor 2 supply harness to PHF cabinet (only
with PHF option)
6
Mains cables R, S, T to input terminals (R/S/T) in the
input filter cabinet
7
Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input filter cabinet
8
DC-link harness to fan supply in output filter cabinet
9
Cabinet heater supply harness to output filter cabi-
net
10
Available terminal connections
11
Thermal protection wiring harness to output filter
cabinet
