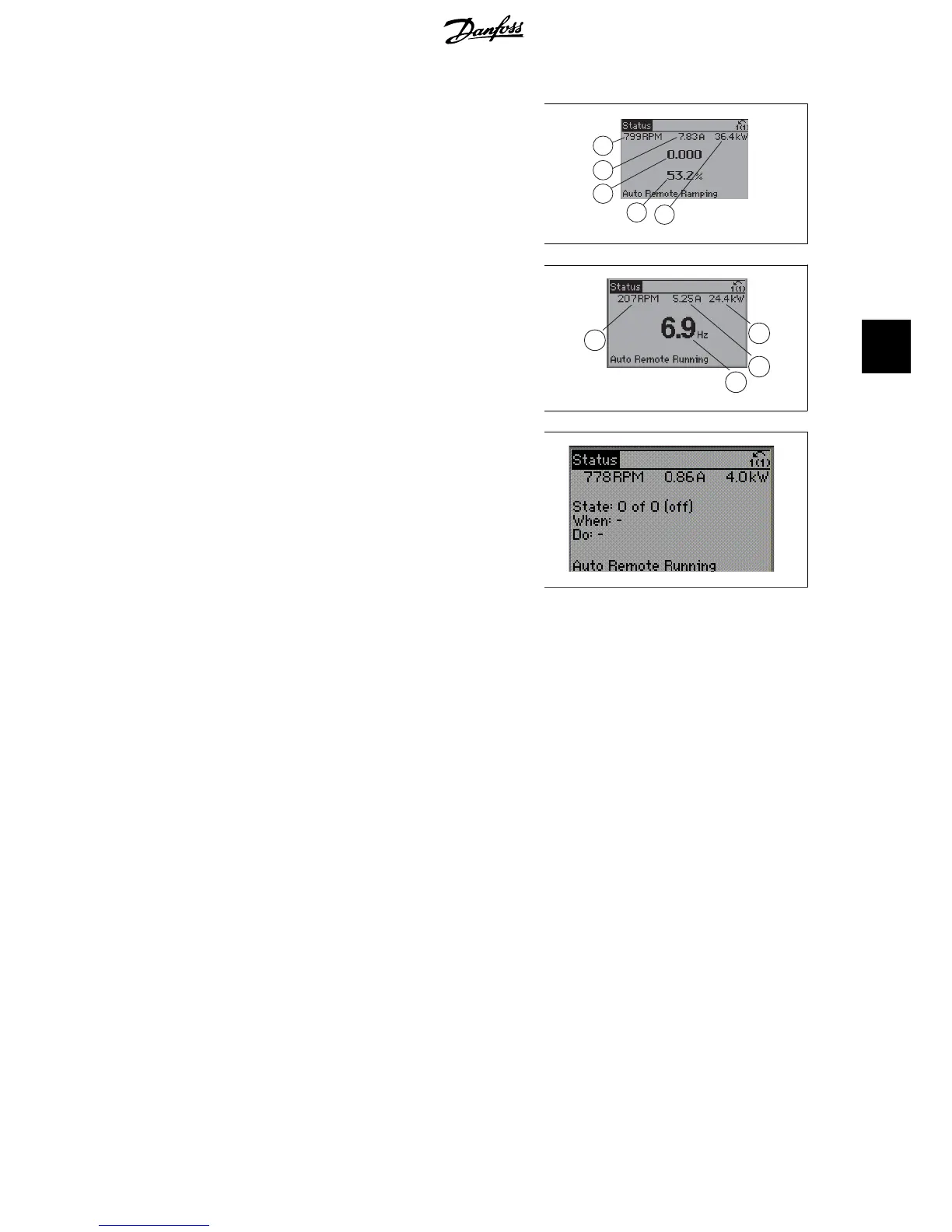

See the operating variables shown in the dis-
play in this illustration. 1.1, 1.2 and 1.3 are
shown in small size. 2 and 3 are shown in me-
dium size.
130BP041.10
1.1
1.3
2
1.2
3
Status display II:
See the operating variables (1.1, 1.2, 1.3, and
2) shown in the display in this illustration.
In the example, Speed, Motor current, Motor
power and Frequency are selected as varia-
bles in the first and second lines.
1.1, 1.2 and 1.3 are shown in small size. 2 is
shown in large size.
130BP062.10
2
1.2
1.3
1.1
Status display III:
This state displays the event and action of the
Smart Logic Control. For further information,
see section
Smart Logic Control .
