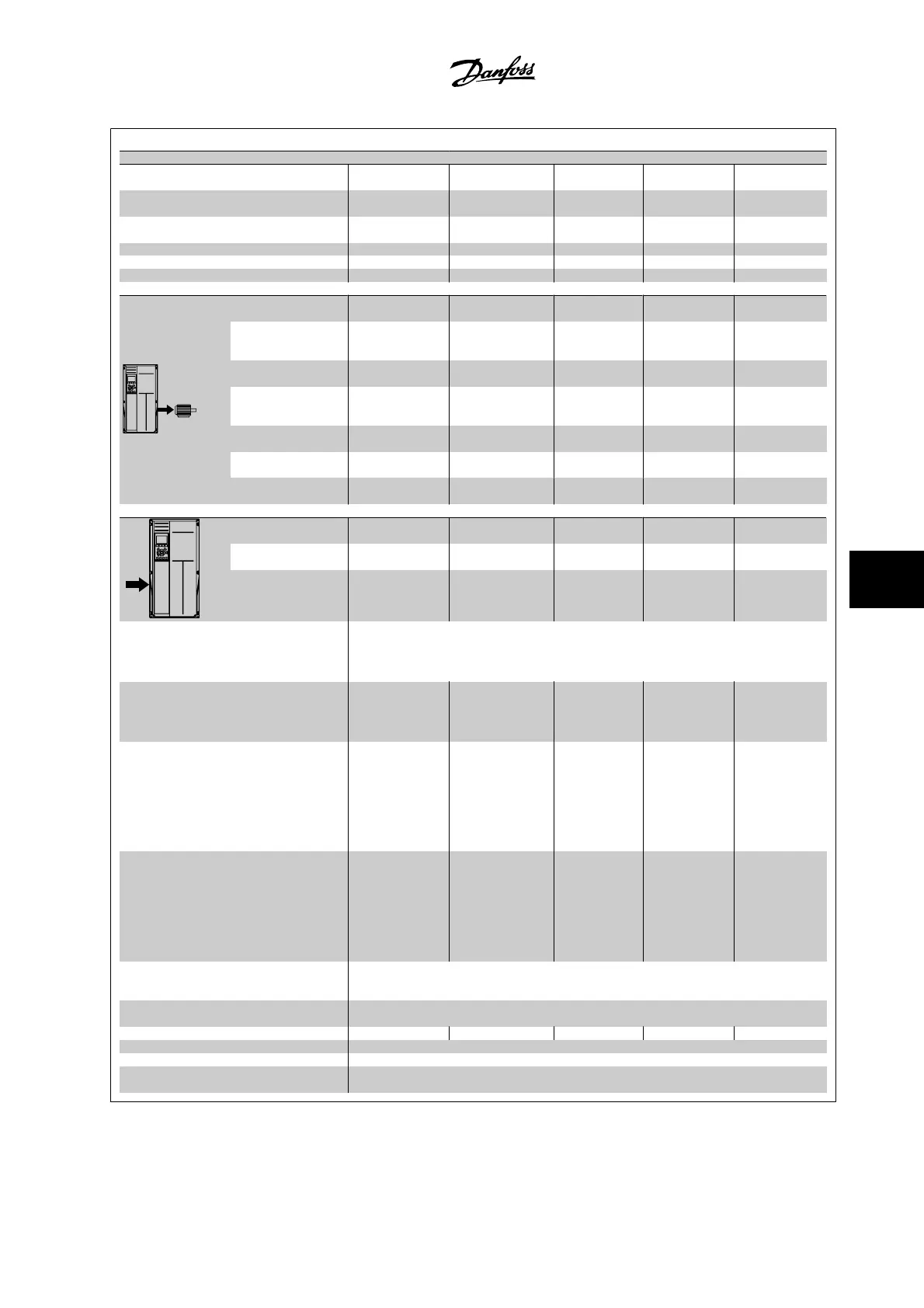

Danfoss VLT User Manual

Line Power Supply 3 x 525–690 V AC
P45K P55K P75K P90K P110
Typical Shaft output at
550 V [kW]
37 45 55 75 90
Typical Shaft output at
575 V [HP]
50 60 75 100 125
Typical Shaft output at
690 V [kW]
45 55 75 90 110
Enclosure IP21 D1 D1 D1 D1 D1
Enclosure IP54 D1 D1 D1 D1 D1
Enclosure IP00 D2 D2 D2 D2 D2
Output current
Continuous
(at 550 V) [A]
56 76 90 113 137
Intermittent (60 sec
overload)
(at 550 V) [A]
62 84 99 124 151
Continuous
(at 575/690 V) [A]
54 73 86 108 131
Intermittent (60 sec
overload)
(at 575/690 V) [A]
59 80 95 119 144
Continuous KVA
(at 550 V) [KVA]
53 72 86 108 131
Continuous KVA
(at 575 V) [KVA]
54 73 86 108 130
Continuous KVA
(at 690 V) [KVA]
65 87 103 129 157
Max. input current
Continuous
(at 550 V) [A]
60 77 89 110 130
Continuous
(at 575 V) [A]
58 74 85 106 124
Continuous
(at 690 V) [A]
58 77 87 109 128
Max. cable size, line
power, motor, load
share and brake [mm
2
(AWG)]
2x70 (2x2/0)
Max. external pre-fuses
[A]
1
125 160 200 200 250
Estimated power loss
at rated max. load [W]
4)
, 575 V
1398 1645 1827 2157 2533
Estimated power loss
at rated max. load [W]
4)
, 690 V
1458 1717 1913 2262 2662
Weight,
enclosure IP21, IP 54
[kg]
96
Weight,
enclosure IP00 [kg]
82
Efficiency
4)
0.97 0.97 0.98 0.98 0.98
Output frequency 0–600 Hz
Heatsink overtemp. trip 185°F [85°C]
Power card ambient
trip
140°F [60°C]
VLT
®
HVAC Drive Instruction Manual 8 Specifications
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 8-9
8

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
