5 How to operate the adjustable frequency drive
5.1 Three ways of operating
5.1.1 Three ways of operating
The adjustable frequency drive can be operated in 3 ways:
1. Graphical Local Control Panel (GLCP), see 5.1.2
2. Numeric Local Control Panel (NLCP), see 5.1.3
3. RS-485 serial communication or USB, both for PC connection, see 5.1.4
If the adjustable frequency drive is fitted with a serial communication bus option, please refer to relevant documentation.
5.1.2 How to operate the numeric LCP (NLCP)
The following instructions are valid for the NLCP (LCP 101).
The control panel is divided into four functional groups:
1. Numeric display.
2. Menu key and LEDs - changing parameters and switching be-
tween display functions.
3. Navigation keys and LEDs.
4. Operation keys and LEDs.
NOTE!
Parameter copy is not possible with the Numeric Local
Control Panel (LCP101).
Select one of the following modes:
Status Mode: Displays the status of the adjustable frequency drive or
the motor.
If an alarm occurs, the NLCP automatically switches to status mode.
A number of alarms can be displayed.
Quick Set-up or Main Menu Mode: Display parameters and parameter
settings.

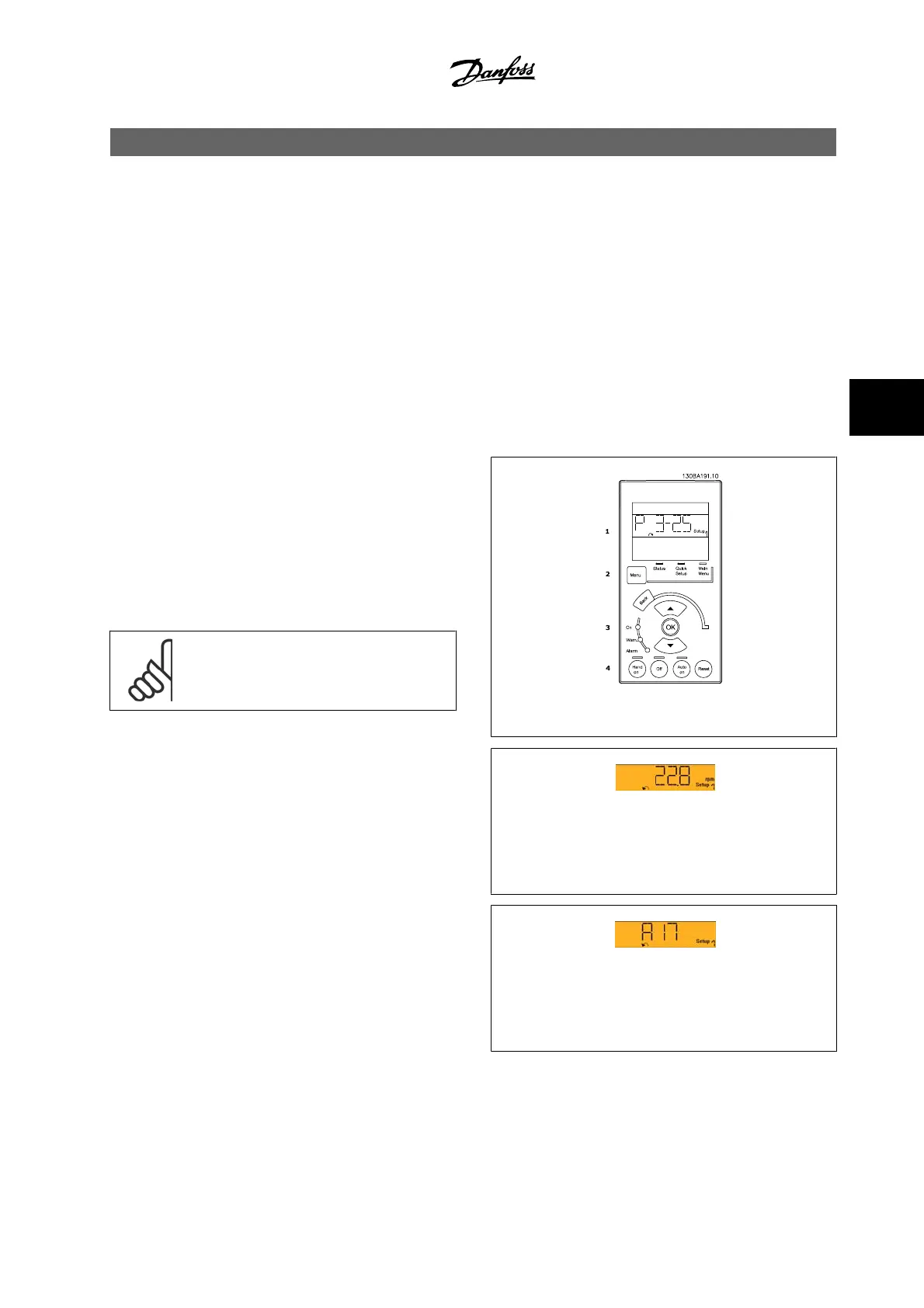

Figure 5.1: Numerical LCP (NLCP)
130BP077.10
Figure 5.2: Status display example
130BP078.10
Figure 5.3: Alarm display example
VLT
®
HVAC Drive Instruction Manual
5 How to operate the adjustable frequency
drive
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 5-1
5
