Size/Type Bussmann PN* Danfoss PN Rating Losses (W)
P315 170M5013 20221 900 A, 700 V 120
P355 170M6013 20221 900 A, 700 V 120
P400 170M6013 20221 900 A, 700 V 120
P450 170M6013 20221 900A, 700 V 120
Table 4.13: E enclosures, 380–480 V
Size/Type
Bussmann JFHR2* SIBA Type RK1 FERRAZ-SHAWMUT Type RK1
P355 170M5013/170M4017 2061032.700 900 A, 700 V
P400 170M5013/170M4017 2061032.700 900 A, 700 V
P450 170M6013 2063032.900 900 A, 700 V
P500 170M6013 2063032.900 900A, 700 V
P560 170M6013 2063032.900
Table 4.14: E enclosures, 525–600 V
*170M fuses from Bussmann shown, use the -/80 visual indicator, -TN/80 Type T, -/110 or TN/110 Type T indicator fuses of the same size and amperage
may be substituted for external use.
4.1.3 Grounding and IT line power
The ground connection cable cross-section must be at least 0.016 in
2
[10 mm
2
]or 2 rated line power wires terminated separately
according to
EN 50178 or IEC 61800-5-1
unless national regulations specify differently. Always comply with national and local regula-
tions on cable cross-sections.
The line power is connected to the main disconnect switch if this is included.
NOTE!
Make sure that the AC line voltage corresponds to the AC line voltage of the adjustable frequency drive nameplate.

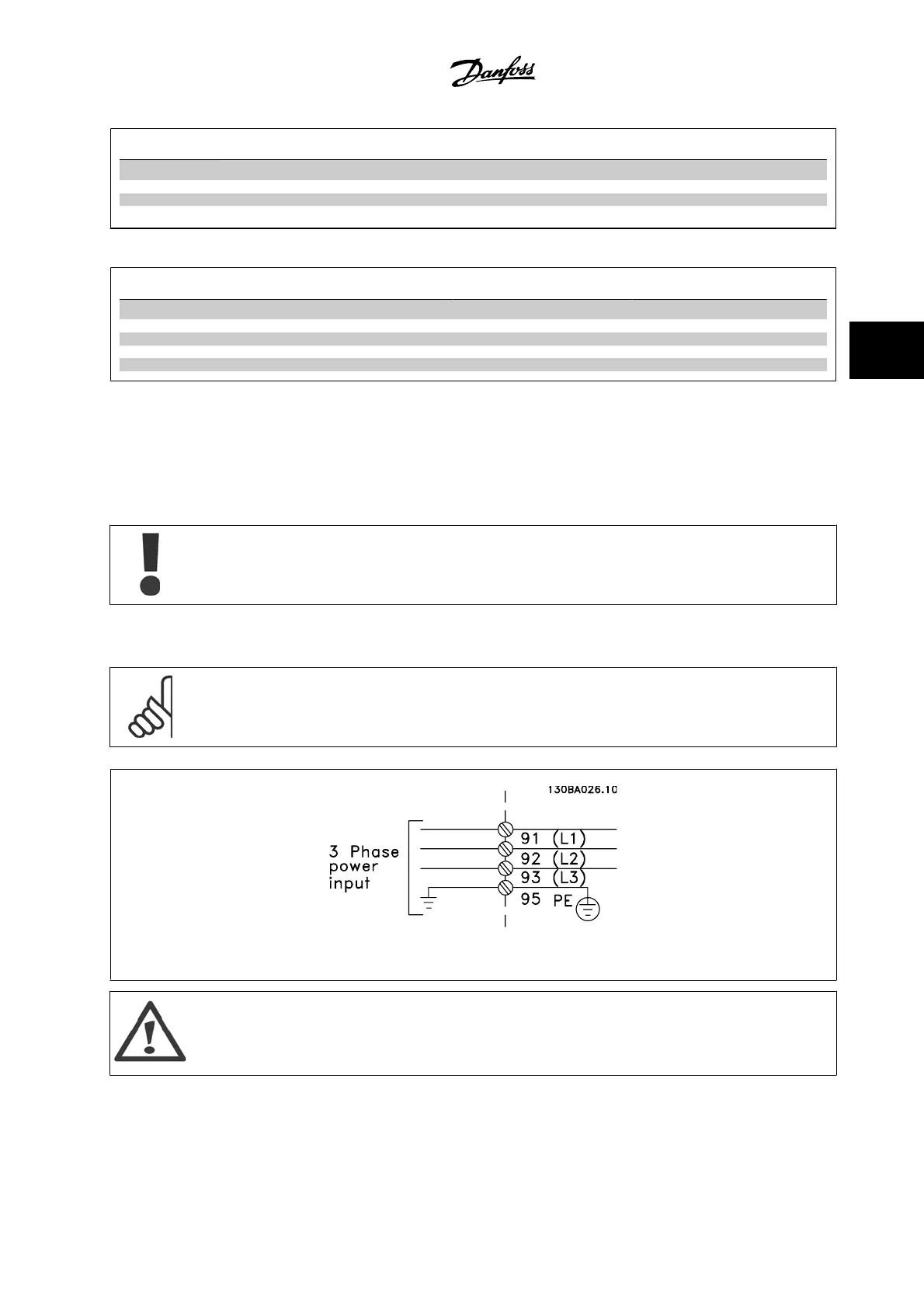

Figure 4.1: Terminals for line power and grounding.
IT Line Power
Do not connect 400 V adjustable frequency drives with RFI filters to line power supplies with a voltage between phase and ground of
more than 440 V.
For IT line power and delta ground (grounded leg), AC line voltage may exceed 440 V between phase and ground.
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark
4-5
