4.1.5 AC line input connections for A2 and A3

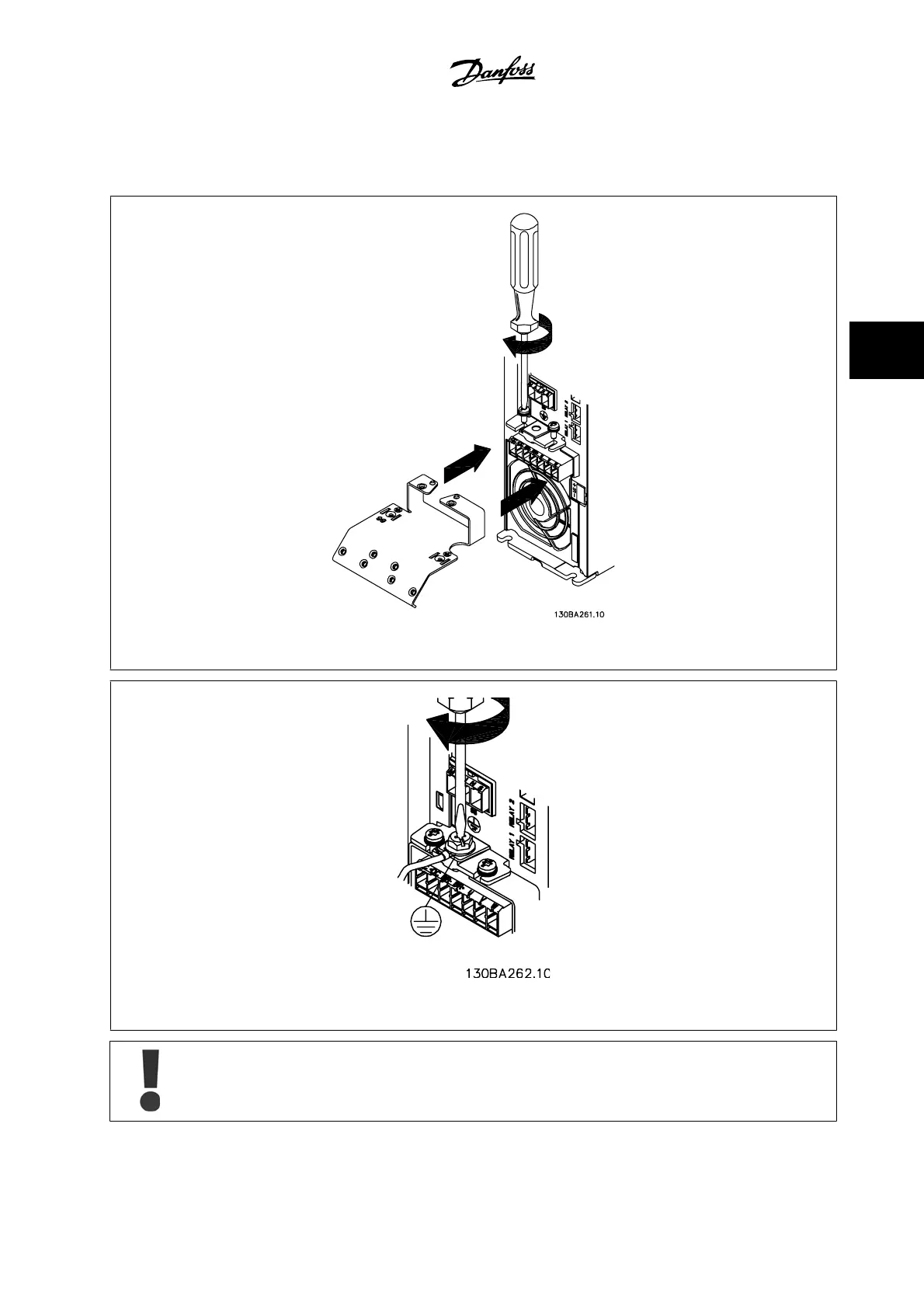

Figure 4.2: First, mount the two screws on the mounting plate, slide it into place and tighten fully.
Figure 4.3: When mounting cables, first mount and tighten ground cable.
The ground connection cable cross-section must be at least 0.016 in
2
[10 mm
2
] or 2 rated line power wires terminated separately
according to
EN 50178/IEC 61800-5-1
.
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
