4.1.6 AC line input connections for A5

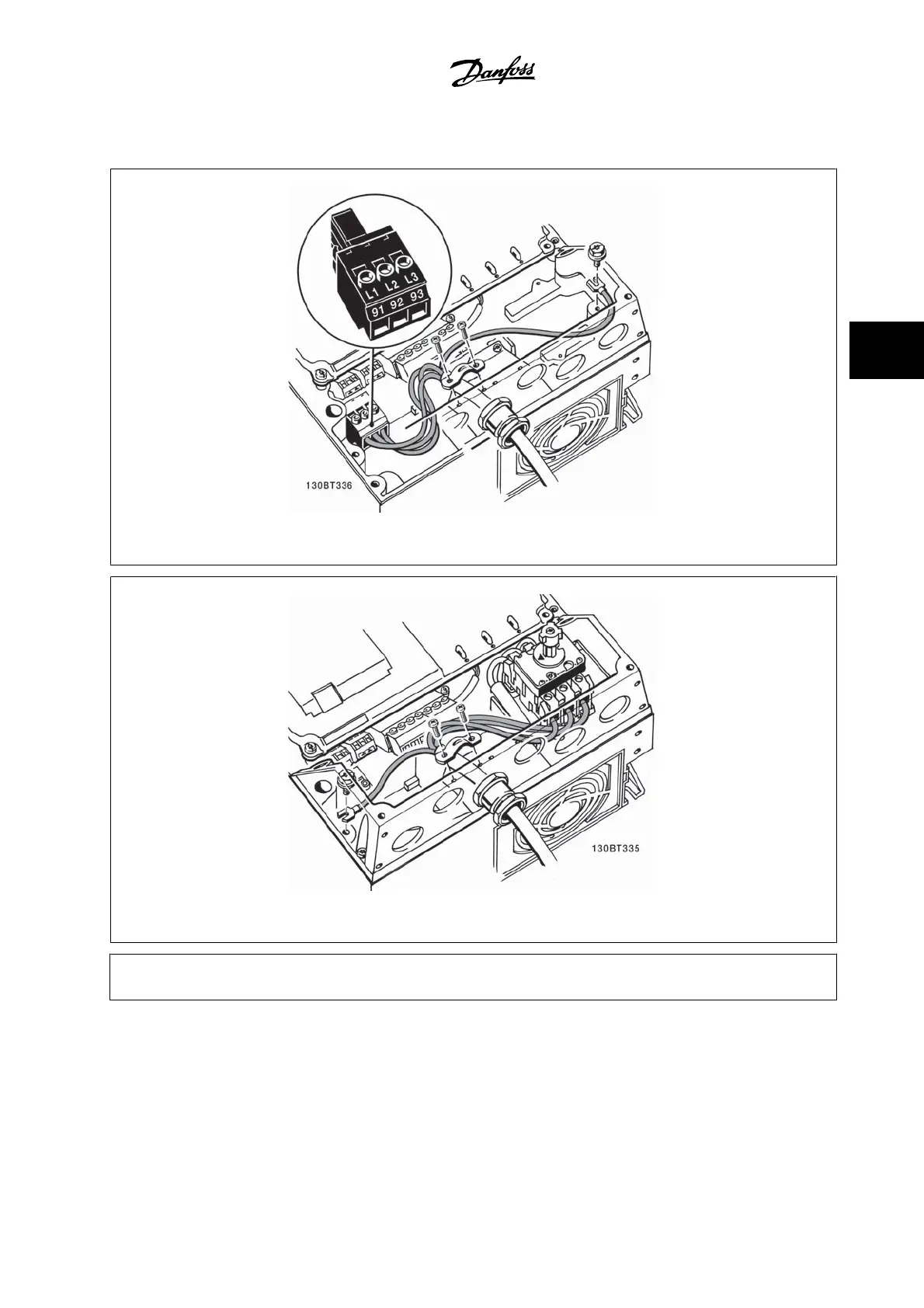

Figure 4.6: How to connect to line power and grounding without a line power disconnect switch. Note that a cable clamp is used.
Figure 4.7: How to connect to line power and grounding with a line power disconnect switch.
NOTE!
With single phase A5 use L1 and L2 terminals.
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 4-9
4
