Danfoss VLT User Manual

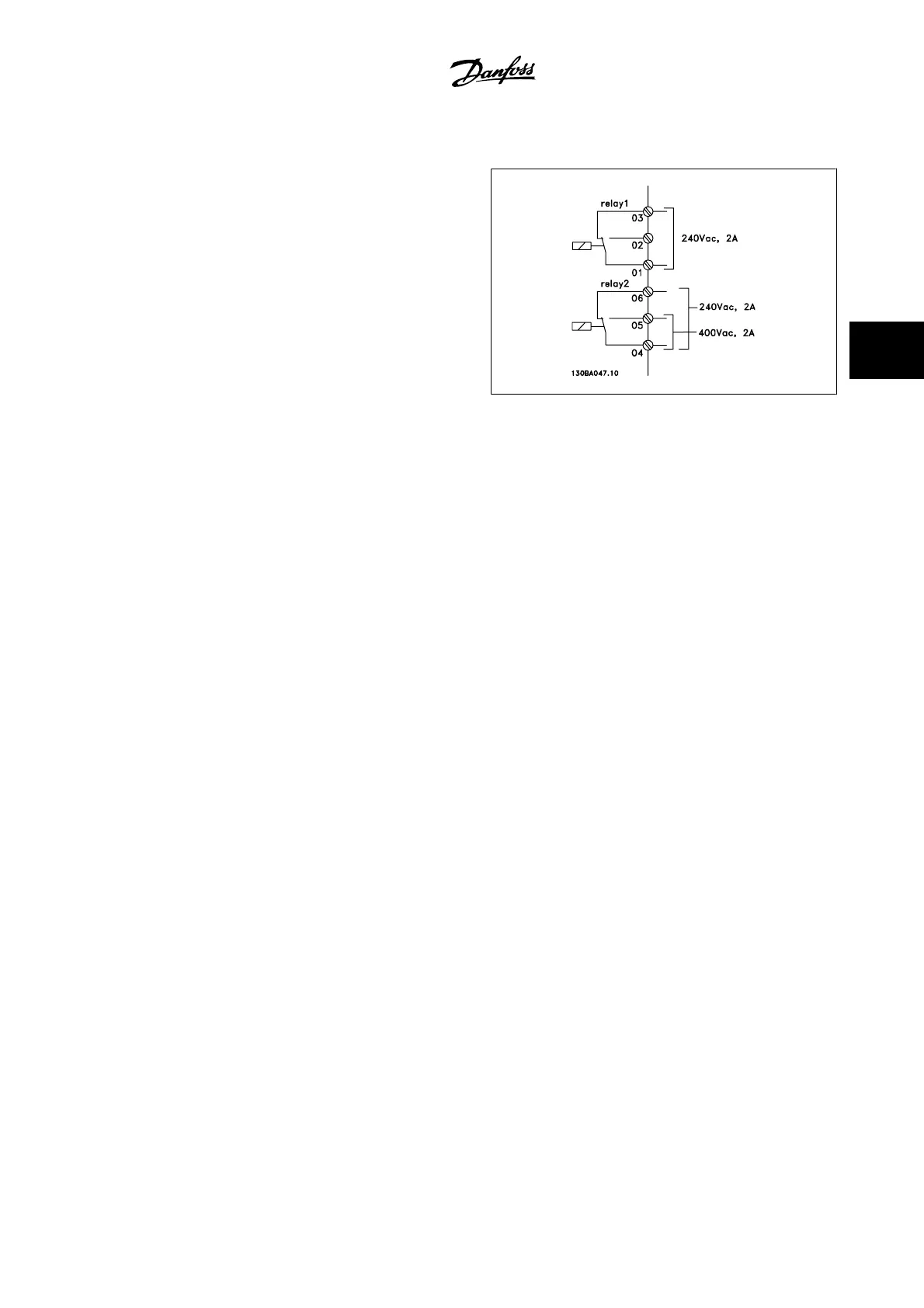

4.1.22 Relay Output
Relay 1
• Terminal 01: common
• Terminal 02: normal open 240 V AC
• Terminal 03: normal closed 240 V AC
Relay 2
• Terminal 04: common
• Terminal 05: normal open 400 V AC
• Terminal 06: normal closed 240 V AC
Relay 1 and relay 2 are programmed in par.5-40
Function Relay ,
par. 5-41
On Delay, Relay , and par. 5-42 Off Delay, Relay .
Additional relay outputs by using option module MCB 105.
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 4-23
4

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
