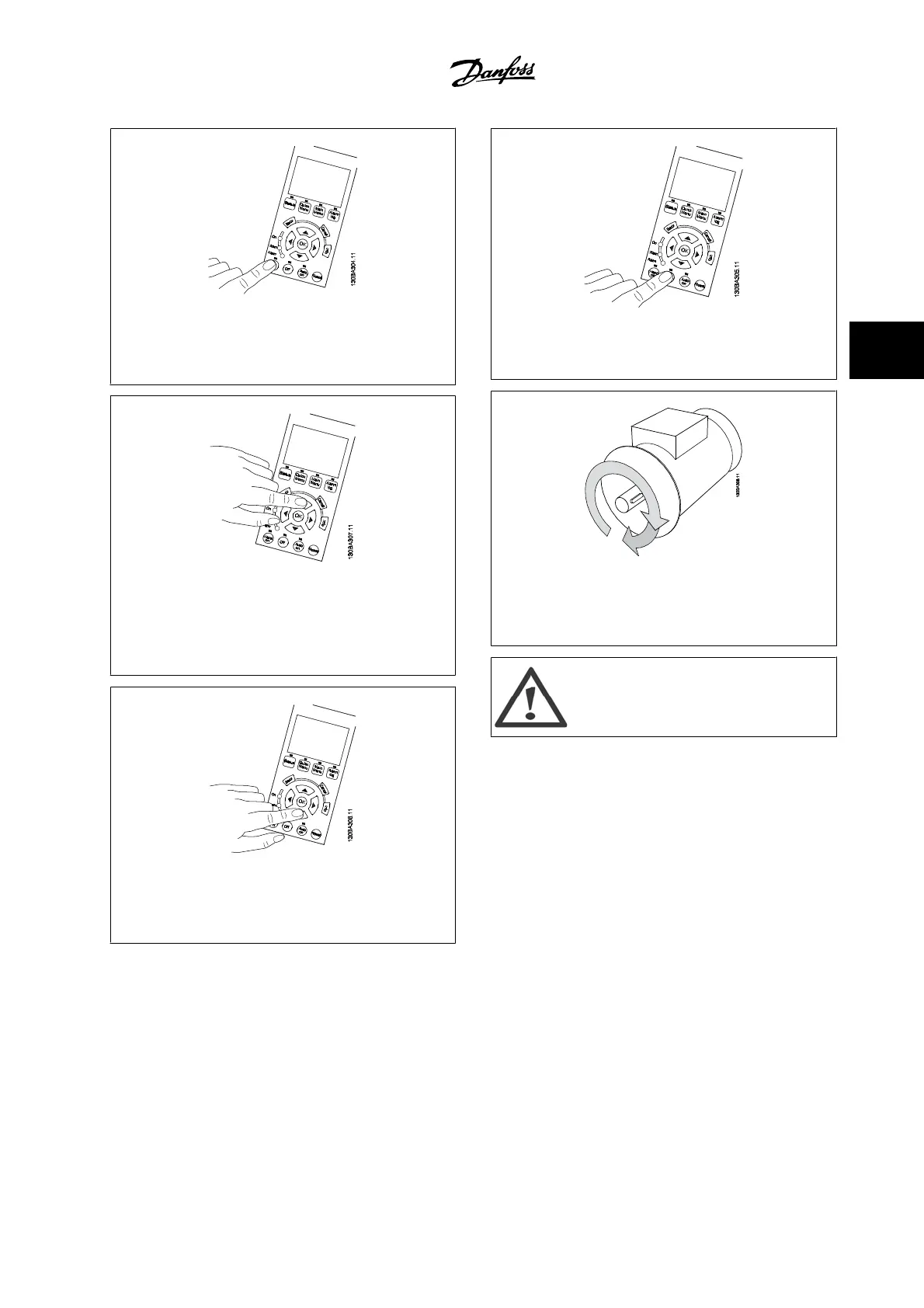

Figure 4.41:
Step 5: By pressing the [Hand on] button, the LED above
the button should be lit and the motor may rotate.
Figure 4.42:
Step 6: The speed of the motor can be seen in the LCP. It
can be adjusted by pushing the up
▲
and down
▼
arrow
buttons.
Figure 4.43:
Step 7: To move the cursor, use the left ◄ and right ► arrow
buttons. This enables speed changes by larger increments.
Figure 4.44:
Step 8: Press the [Off] button to stop the motor again.
Figure 4.45:
Step 9: Change two motor wires if the desired direction of
rotation is not achieved.
Remove line power from the adjustable frequency
drive before changing motor wires.
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 4-25
4
