POLARITY DELAY TIME SETUP (Esc<POLDELAY)
A time delay can be inserted between the OFF state and the activation of the polarity change
over switch. The range of the time delay can be set from 0 to 25.5 seconds, (in steep of 100ms)
this for letting the rest energy in the magnet to decay.
The time delay is only inserted, if the power supply was ON before invoking the POL +/-
command. That is, when just changing the polarity in the power OFF mode, no time delay will
be inserted.

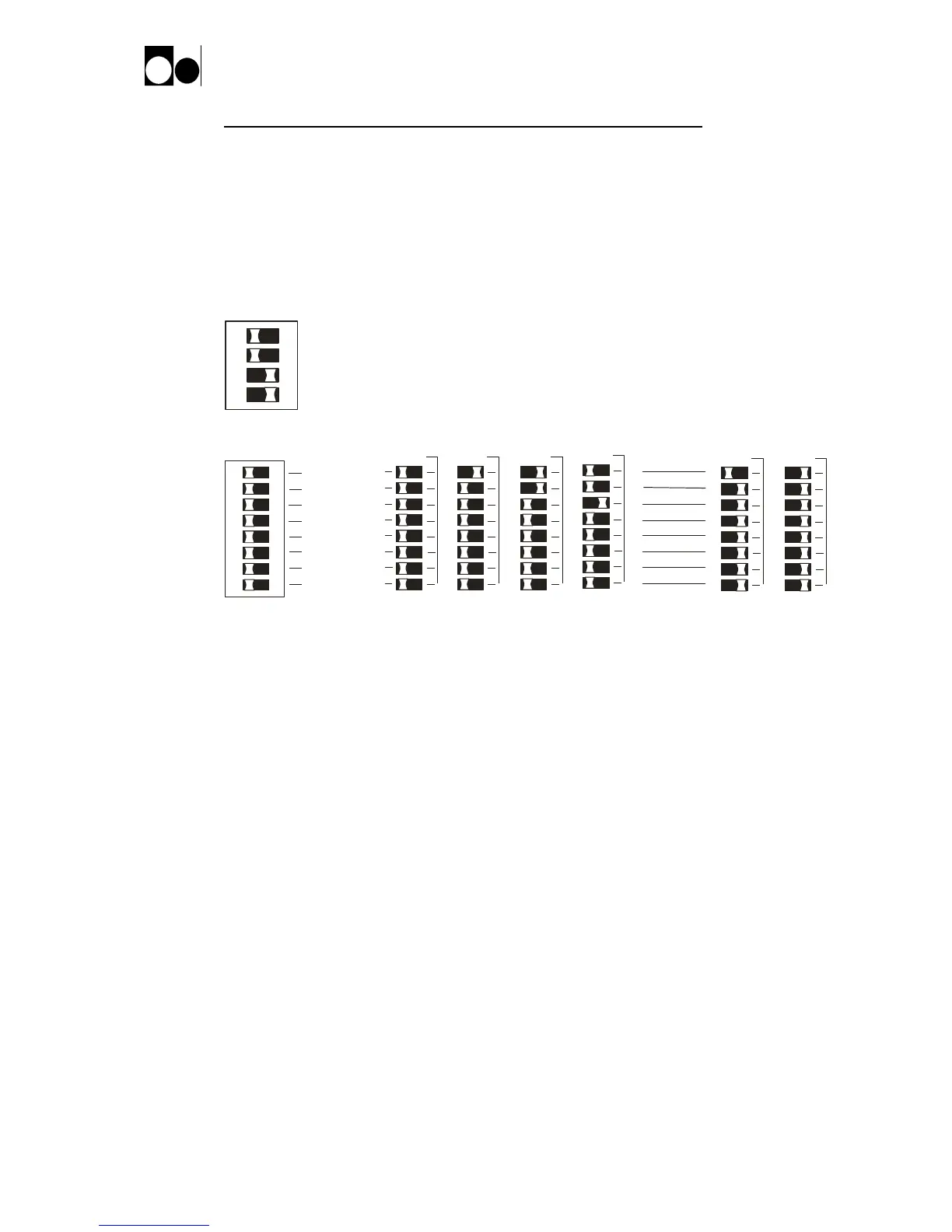

SW3 FOR POLDELAY
ON
1
2 3
4
12
SW4
0 0.1
25.4
0.2
0.3
25.5
#2
#2: Zero defaults to no delay
#1: Time is in 0.1 sec steps.
TIME 2
3
TIME 2
2
TIME 2
1
TIME 2
0
TIME 2
5
TIME 2
6
TIME 2
7
TIME 2
4
ON
1
2 3
4 5 6
7
8
#1
Parameters:
Default setting after “COLD BOOT”
No polarity delay.
