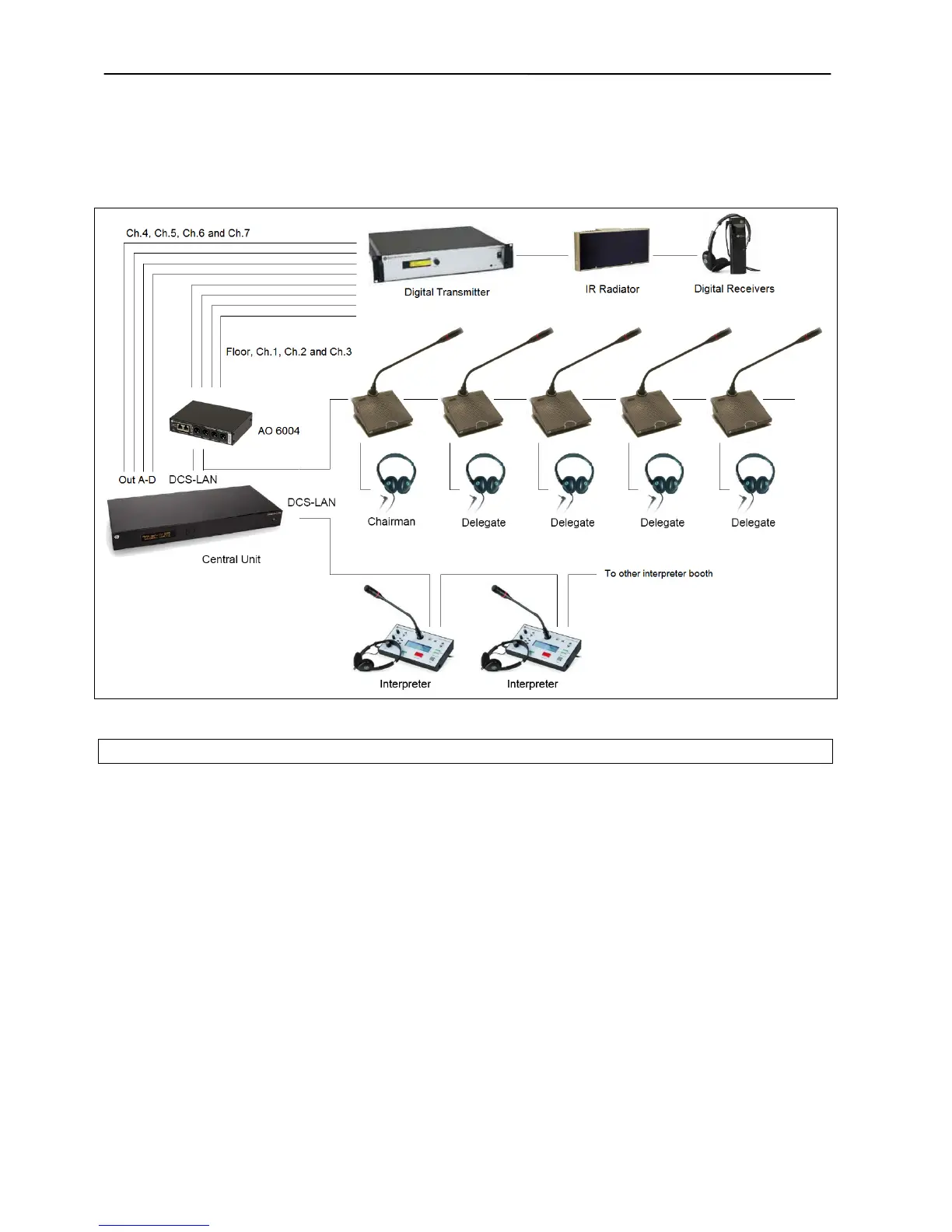

Figure 6.3-I DCS 6000 Digital Conference System with interpretation and wireless distribution, Ch.1 to Ch.7
6.3.8 Connecting using RP 6004 Repeater
RP 6004 Repeater can be used to extend the
maximum cable length from the central unit of the
unit furthest away.
The maximum cable length is 200 m in one chain, but
when using RP 6004 Repeater that maximum cable
length can be expanded to 680m.
