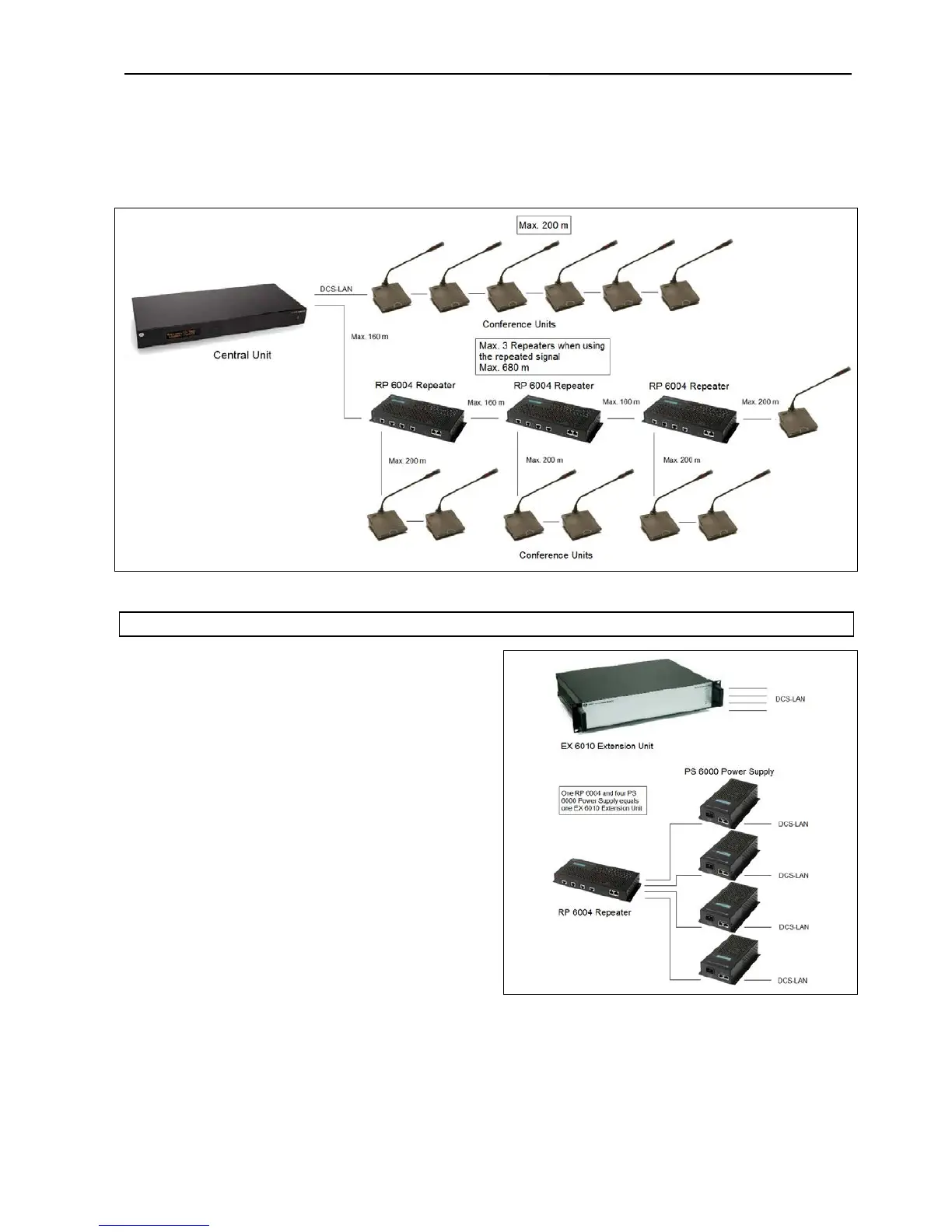

Figure 6.3-J DCS 6000 Digital Conference System with RP 6004 Repeater.
6.3.9 Connecting using PS 6000 Power Supply
The PS 6000 is an in-line Power supply, which can be
inserted in the DCS-LAN chains at any point, where
additional power is needed.
Figure 6.3-K show that one RP 6004 and four PS 6000
Power Supplies equals one EX 6010.
Figure 6.3-K DCS 6000 Digital Conference System with PS
6000.
