3 Description

3.3 DATAEAGLE Compact

3.3.1 Connections

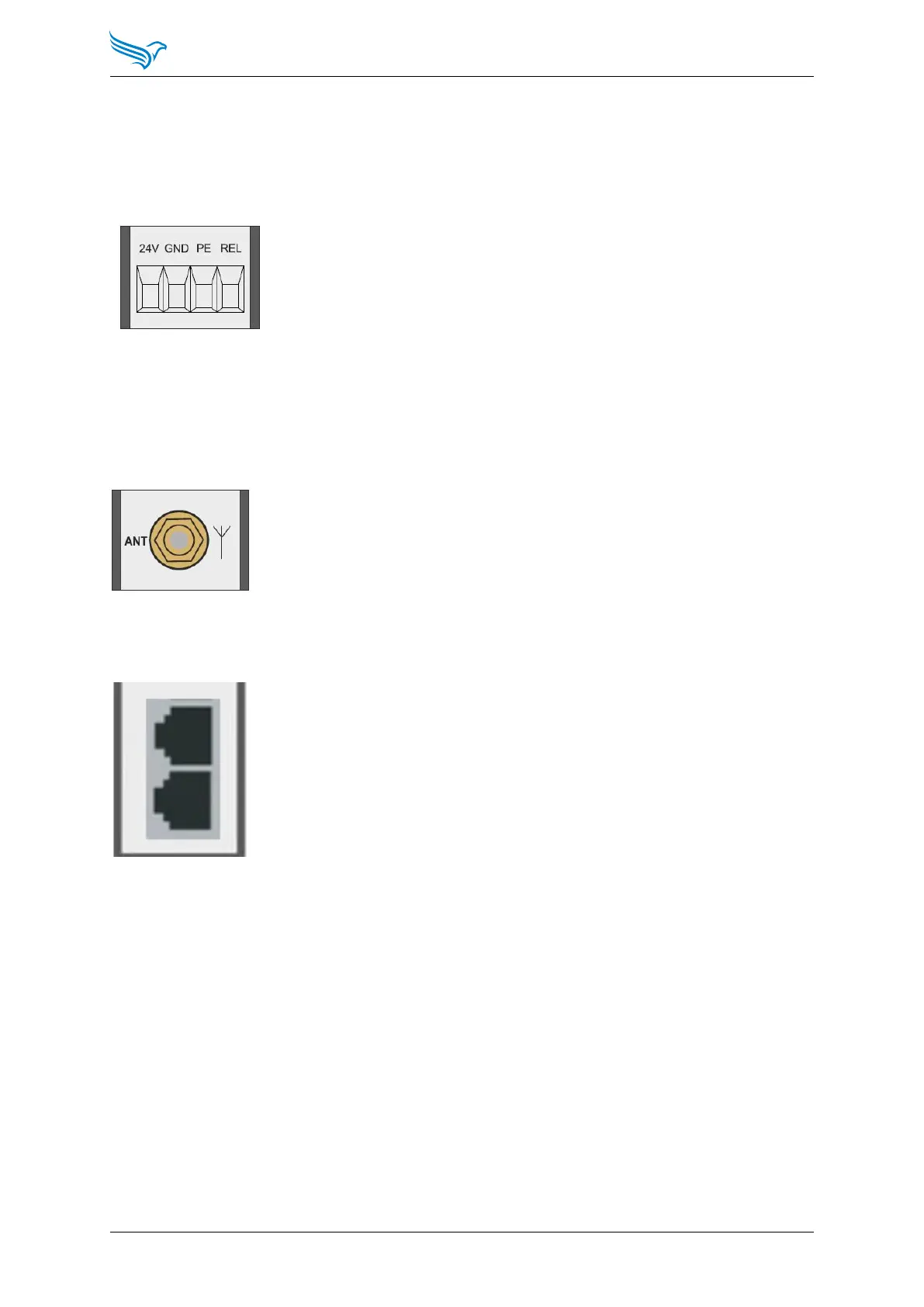

Power supply

Clamps Description

24V 24 V DC

GND 0V

PE PE

REL Switching output

USB port

DATAEAGLE Compact has a USB port for configuration and software updates

via the DATAEAGLE Wizard tool.

Antenna connection

SMA connector for antenna

Ethernet Interface

2 x RJ45 (integrated Switch) 10/100 MBit Ethernet
