4 Mounting
4.3 Mounting the components
DATAEAGLE Compact
→ Fasten the module at the designated place according to its fastening type.

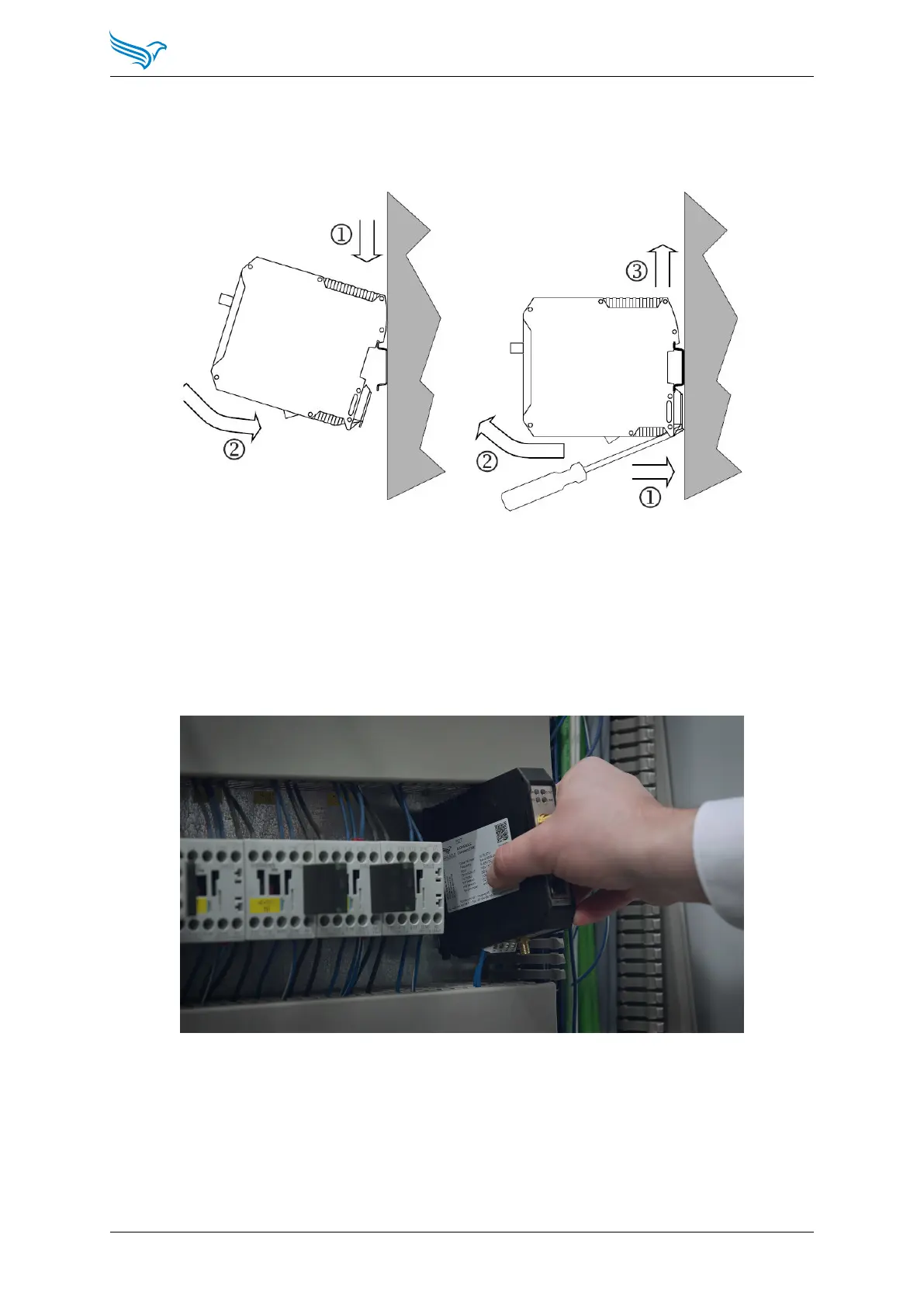

Mount:
1. Place the module from diagonally above onto the top-hat rail.
2. Press the module down firmly.
The foot latch engages. The unit is firmly seated on the top-hat rail.
Example:
